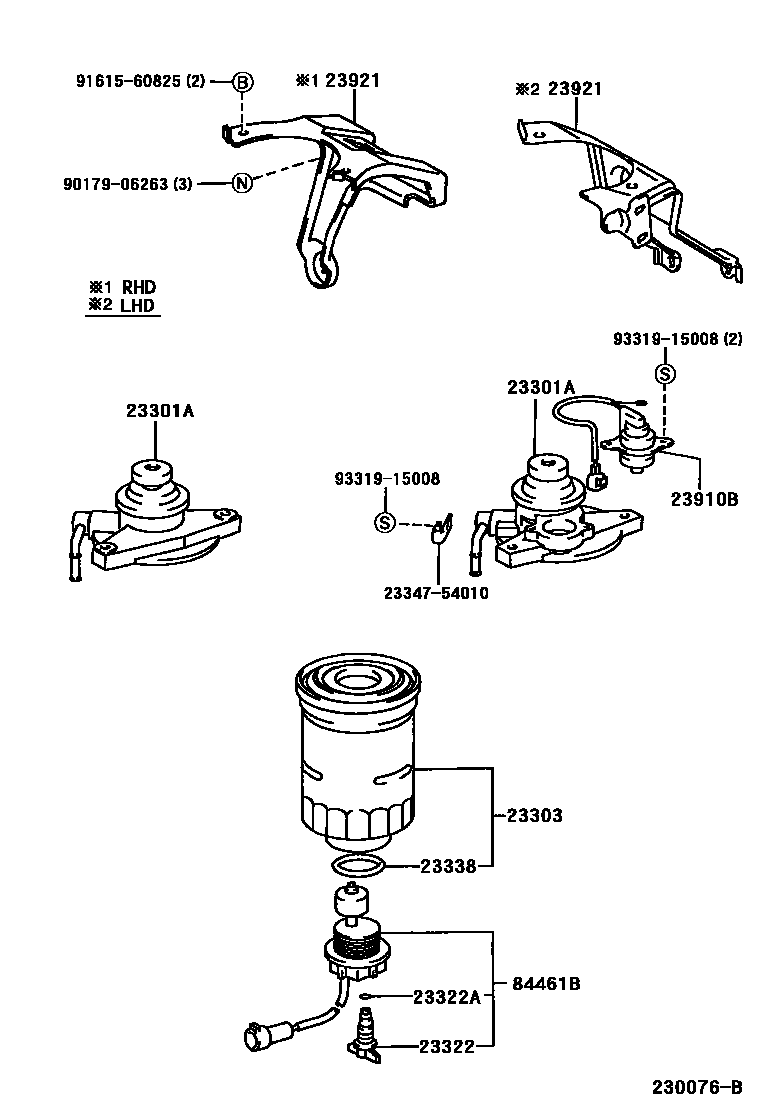

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23380-27020i1CDFTV..CDT220..LHD199908

TYPE C:REFER TO ILLUSTRATION

sub23380-27021

main23380-27030i1CDFTV..CDT220199908-200207

TYPE A:REFER TO ILLUSTRATION

sub23380-27031

main23380-27040i1CDFTV..CDT220199908

TYPE B:REFER TO ILLUSTRATION

sub23380-27041

main23380-64450i2CT#..CT220199710-200007

main23380-64460i2CT#..CT220199710-200007

W(FUEL HEATER)

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-64450i1CDFTV,2CT#..CDT220,CT220199710

sub23390-33030

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CT#..CT220199710-200007

main23388-64470i1CDFTV..CDT220199908

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV,2CT#..CDT220,CT220199710

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV,2CT#..CDT220,CT220199710

23910BHEATER ASSY, FUEL

main23910-27010i1CDFTV..CDT220199908

main23910-64030i2CT#..CT220199710-200007

23921SUPPORT, FUEL FILTER

main23921-27010i1CDFTV..CDT220..LHD199908

main23921-27020i1CDFTV..CDT220..RHD199908

main23921-64250i2CT#..CT220..LHD199710-200007

main23921-64270i2CTE..CT220..RHD199710-200007

84461BSWITCH, LEVEL WARNING

main84461-20090iCT220199710-200007

main84461-28040iCDT220199908

sub84461-28041

2334754010CLIP, CORD

main23347-54010

9017906263

main90179-06263

9161560825

main91615-60825

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
