FUEL INJECTION SYSTEM

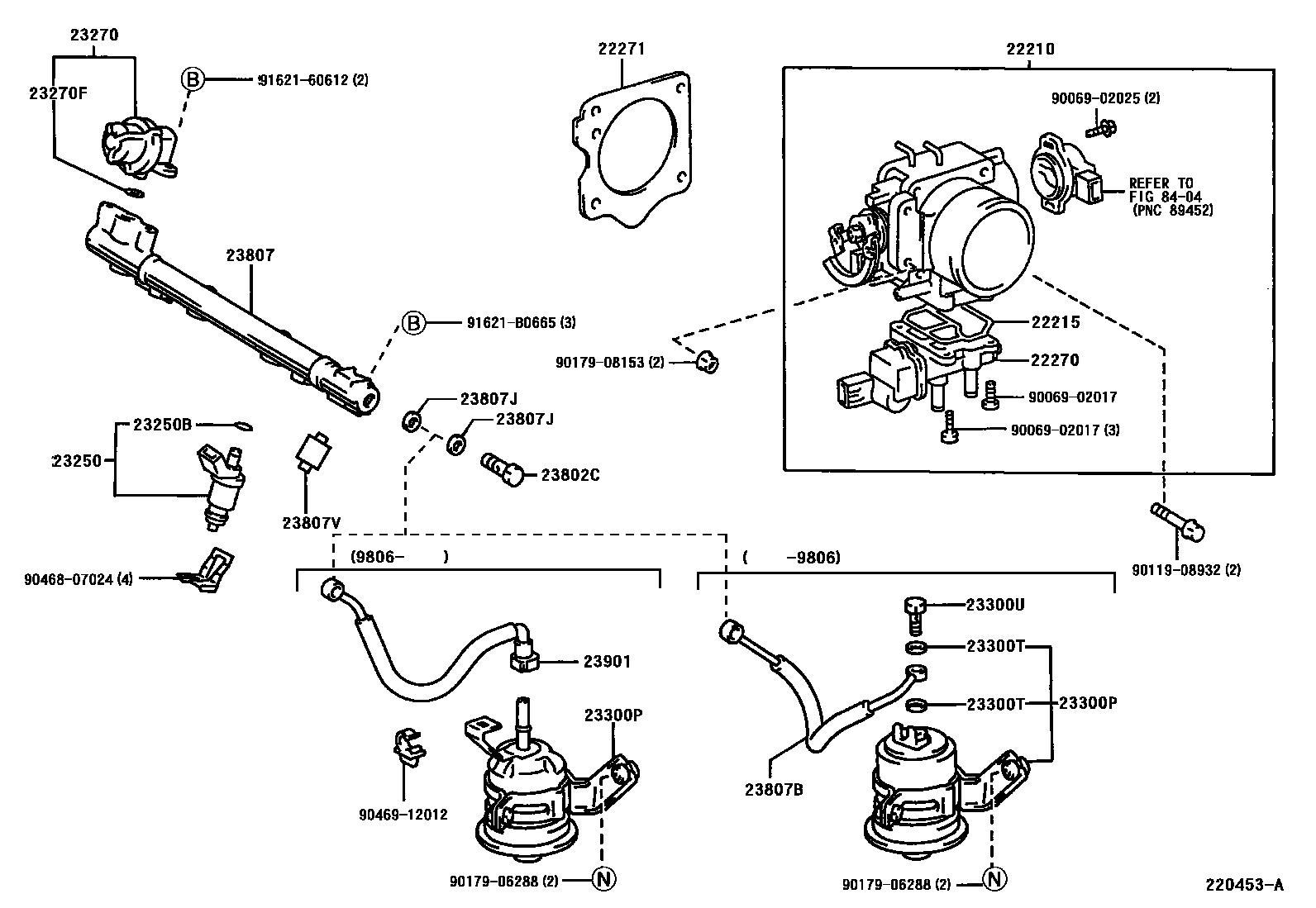

0001 1LEAN BURN 0002 1 0003 1W/O(OIL COOLER) 0004 1 0005 1W/O(OIL COOLER) 0006 1 0007 1 0008 1 0009 1 0010 1TYPE A 0011 1TYPE B 0012 1 0013 1

22210BODY ASSY, THROTTLE

main22030-28010i1AZFSE..AZT220200007-200111

sub22030-28011

main22030-28020i1AZFSE..AZT220200111

main22210-02120i7AFE..AT221..RHD..ATM199710-200007

main22210-02130i4AFE,7AFE..AT22#..RHD..MTM199710-200007

main22210-02140i7AFE..AT221..LHD..ATM199710-200007

main22210-02150i4AFE..AT220..LHD..TERRA199710-199805

LEAN BURN

main22210-02160i4AFE..AT220..LHD199710-200007

main22210-02170i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

main22210-0D050i1ZZFE..ZZT221200007

main22210-0D060i3ZZFE..ZZT220200007

main22210-7A390i3SFE..ST220..MTM199710

main22210-7A650i3SFE..ST220..ATM199710

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE,7AFE..AT22#199710-200007

main22215-7A680i1ZZFE..ZZT221200007

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-16090i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

main22270-16100i4AFE..AT220..LHD199710-200007

main22270-16110i7AFE..AT221;4AFE..AT220..RHD199710-200007

main22270-22050i3ZZFE..ZZT220200007

main22270-22060i1ZZFE..ZZT221200007

sub22270-22061

main22270-74350i3SFE..ST220199710

22271GASKET, THROTTLE BODY

main22271-02020i4AFE,7AFE..AT22#199710-199808

main22271-15020i4AFE,7AFE..AT22#199808-200007

main22271-22030i3ZZFE..ZZT220200007-200111

main22271-22040i1ZZFE..ZZT221200007

main22271-22070i3ZZFE..ZZT220200111

main22271-28030i1AZFSE..AZT220200007

main22271-74070i3SFE..ST220199710

23250INJECTOR ASSY, FUEL

main23209-02020×4i4AFE..AT220..LHD199710-200007

main23209-02040×4i4AFE..AT220..LHD..TERRA199710-199805

LEAN BURN

main23209-0D020×4i3ZZFE..ZZT220200007

sub23209-0D030

main23209-16150×4i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(OIL COOLER)

main23209-22040×4i1ZZFE..ZZT221200007

main23209-28030×4i1AZFSE..AZT220200007-200010

main23209-29025×4i1AZFSE..AZT220200010

sub23209-29026

main23209-74170×4i3SFE..ST220199710

23250BRING, O(FOR FUEL INJECTOR)

main90080-30029×4i4AFE..AT220..LHD199710-200007

main90080-30036×8i4AFE..AT220..LHD..TERRA199710-199805

LEAN BURN

main90301-07001×4i3SFE..ST220199710-199812

W/O(OIL COOLER)

main90301-07024×4i1ZZFE..ZZT221200007

main90301-07030×4i3ZZFE..ZZT220200007

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23207-16040i4AFE,7AFE..AT22#199710-200007

main23207-46010i3SFE..ST220199710

sub23207-20011

main23270-28040i1AZFSE..AZT220200007

sub23270-31050

23270FRING, O(FOR PULSATION DAMPER)

main90301-07001i4AFE,7AFE..AT22#199710-199812

main90301-07024i4AFE,7AFE..AT22#199812-200007

23300PFILTER, FUEL(FOR EFI)

main23300-16330i4AFE,7AFE..AT22#..LHD199806-200007

main23300-16340i4AFE,7AFE..AT22#..RHD199806-200007

main23300-19465i4AFE,7AFE..AT22#..RHD199710-199806

main23300-19535i3SFE..ST220..LHD..SED199710-199801

TYPE B:REFER TO ILLUSTRATION

main23300-22040i3ZZFE..ZZT220..LHD..SED200007

MARK 75

main23300-22050i1ZZFE,3ZZFE..ZZT22#..LHD200007

MARK 77

main23300-28010i1AZFSE..AZT220..LHD200007

main23300-28020i1AZFSE..AZT220..RHD200007

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i3SFE..ST220..RHD;3SFE..ST220..LHD..SED199710-199801

23300UBOLT, UNION(FOR FUEL FILTER)

main96341-11200i3SFE..ST220..RHD;3SFE..ST220..LHD..SED199710-199801

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08004i3SFE..ST220..LHD..SED199710-199801

main90401-12097i4AFE,7AFE..AT22#199710-200007

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-22030i1ZZFE,3ZZFE..ZZT22#200007

sub23807-22061

main23807-28030i1AZFSE..AZT220200007-200105

PNC 23801P=TYPE A

sub23800-28010

sub23801-28050

sub91621-J0614

main23807-28031i1AZFSE..AZT220200105-200205

PNC 23801P=TYPE B

sub91621-J0614

main23807-28033i1AZFSE..AZT220200205

sub23807-28024

main23814-15050i4AFE..AT220..LHD199710-200007

sub23814-15051

main23814-16150i7AFE..AT221;4AFE..AT220..RHD199710-200007

sub23814-16151

main23814-74110i3SFE..ST220199710

sub23814-74080

23807BHOSE, FUEL DELIVERY PIPE

main23271-02040i4AFE,7AFE..AT22#..RHD199710-199806

(L)

main23271-16160i4AFE,7AFE..AT22#..RHD199710-199806

(J)

main23271-16250i4AFE..AT220..LHD199710-199806

main23271-16260i7AFE..AT221199710-199805

LEAN BURN

main23271-74570i3SFE..ST220..RHD199710-200007

TYPE B:REFER TO ILLUSTRATION

main23271-74640i3SFE..ST220..LHD..SED199710-199801

TYPE B:REFER TO ILLUSTRATION

main23271-74650i3SFE..ST220..LHD199710-200007

TYPE A:REFER TO ILLUSTRATION

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026×2i4AFE,7AFE..AT22#199710-200007

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90080-56052×2i1ZZFE,3ZZFE..ZZT22#200007

(L)

main90561-06017×3i7AFE..AT221;4AFE..AT220..RHD199710-200007

main90561-08020×2i4AFE..AT220..LHD199710-200007

main90561-08053×2i3SFE..ST220199710

main90561-08055×2i1ZZFE,3ZZFE..ZZT22#200007

(J)

23901TUBE SUB-ASSY, FUEL

main23901-02030i7AFE..AT221..LHD199806-200007

main23901-02040i4AFE..AT220..LHD199806-200007

main23901-02050i4AFE,7AFE..AT22#..RHD199806-200007

main23901-22080i1ZZFE,3ZZFE..ZZT22#..LHD200007

main23901-22090i1ZZFE,3ZZFE..ZZT22#..RHD200007

main23901-28050i1AZFSE..AZT220..LHD200007

main23901-28060i1AZFSE..AZT220..RHD200007

8404

9006902017

main90069-02017

9006902025

main90069-02025

9011908932

main90119-08932

9017906288

main90179-06288

9017908153

main90179-08153

9046807024

main90468-07024

9046912012

main90469-12012

9162160612

main91621-60612

91621B0665

main91621-B0665

27 parts on this diagram · 13 diagrams in section
