STARTER

0001 112V 1.1W 0002 112V 2.0KW 0003 112V 1.0KW 0004 112V 1.2KW 0005 112V 1.1KW,BOSCH 0006 112V 1.0KW 0007 112V 1.2KW 0008 112V 1.0KW,DENSO

28011CLUTCH SUB-ASSY, STARTER

main28011-02010i4AFE,7AFE..AT22#199710-200007

main28011-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28011-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28011-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28011-70020i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

main28011-70020i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28011-74060i1AZFSE,3SFE..AZT220,ST220199710

12V 1.0KW

main28011-74070i1AZFSE,3SFE..AZT220,ST220199710

12V 1.2KW

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-02080i4AFE,7AFE..AT22#199710-200004

sub28014-0D030

main28014-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28014-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28014-0D030i4AFE,7AFE..AT22#200004-200007

main28014-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28014-70020i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28014-70020i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

28100STARTER ASSY

main28100-02080i4AFE,7AFE..AT22#199710-200007

12V 1.1KW

main28100-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

12V 2.0KW

sub28100-0G010

main28100-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28100-0G010i1CDFTV,2CT#..CDT220,CT220199910

12V 2.0KW

main28100-22040i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

sub28100-22041

main28100-22040i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

sub28100-22041

main28100-28010i1AZFSE,3SFE..AZT220,ST220200007

12V 1.2KW,COLD SPEC

main28100-74130i3SFE..ST220199710-200007

12V 1.2KW

sub28100-74140

main28100-74200i3SFE..ST220199710-200007

12V 1.0KW

sub28100-74140

main28100-74300i1AZFSE,3SFE..AZT220,ST220200007

12V 1.0KW

sub28100-28010

28110HOUSING ASSY, STARTER DRIVE

main28110-02080i4AFE,7AFE..AT22#199710-200007

main28110-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28110-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28110-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28110-22030i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28110-22030i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

main28110-74100i3SFE..ST220199710-200007

12V 1.0KW

main28110-74110i3SFE..ST220199710-200007

12V 1.2KW

main28110-74270i1AZFSE,3SFE..AZT220,ST220200007

12V 1.2KW

main28110-74300i1AZFSE,3SFE..AZT220,ST220200007

12V 1.0KW

28113LEVER, STARTER PINION DRIVE

main28113-02010i4AFE,7AFE,1CDFTV,2CT#..AT22#,CDT220,CT220199710

main28113-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28113-70020i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28113-70020i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

28120YOKE ASSY, STARTER

main28120-02020i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28120-02020i4AFE,7AFE..AT22#199710-200007

main28120-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28120-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28120-16180i1AZFSE,3SFE..AZT220,ST220199710

12V 1.2KW

main28120-26071i1AZFSE,3SFE..AZT220,ST220199710

12V 1.0KW

main28120-70050i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28120-70050i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-02050i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28130-02050i4AFE,7AFE..AT22#199710-200007

main28130-0B020i1CDFTV,2CT#..CDT220,CT220199710

main28130-15190i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

main28130-15190i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28130-74110i3SFE..ST220199710-200007

12V 1.0KW

main28130-74120i3SFE..ST220199710-200007

12V 1.2KW

main28130-74270i1AZFSE,3SFE..AZT220,ST220200007

12V 1.2KW

main28130-74300i1AZFSE,3SFE..AZT220,ST220200007

12V 1.0KW

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-04010i1CDFTV,1ZZFE,3ZZFE..CDT220,ZZT22#199710-200007

sub28132-0X040

28140HOLDER ASSY, STARTER BRUSH

main28140-02020i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28140-02020i4AFE,7AFE..AT22#199710-200007

main28140-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28140-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28140-70020i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

main28140-70020i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28140-74010i1AZFSE,3SFE..AZT220,ST220199710

12V 1.0KW

main28140-74120i1AZFSE,3SFE..AZT220,ST220199710

12V 1.2KW

28150SWITCH ASSY, MAGNET STARTER

main28150-02080i4AFE,7AFE..AT22#199710-200007

main28150-0B020i1CDFTV,2CT#..CDT220,CT220199710

main28150-0D030i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28150-28010i1AZFSE,3SFE..AZT220,ST220200007

12V 1.2KW

main28150-70030i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

sub28150-22100

main28150-70030i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

sub28150-22100

main28150-74140i3SFE..ST220199710-200007

12V 1.2KW

main28150-74200i3SFE..ST220199710-200007

12V 1.0KW

main28150-74300i1AZFSE,3SFE..AZT220,ST220200007

12V 1.0KW

28160ARMATURE ASSY, STARTER

main28160-02080i4AFE,7AFE..AT22#199710-200007

main28160-02080i1ZZFE,3ZZFE..ZZT22#200007

12V 1.1KW,BOSCH

main28160-0B020i1CDFTV,2CT#..CDT220,CT220199710-199910

main28160-0G010i1CDFTV,2CT#..CDT220,CT220199910

main28160-26071i1AZFSE,3SFE..AZT220,ST220199710

12V 1.0KW

main28160-70050i1ZZFE,3ZZFE..ZZT22#200007-200104

12V 1.0KW

main28160-70050i1ZZFE,3ZZFE..ZZT22#200104

12V 1.0KW,DENSO

main28160-76060i1AZFSE,3SFE..AZT220,ST220199710

12V 1.2KW

9008010049

main90080-10049

9008014009

main90080-14009

9008015036

main90080-15036

9008017090

main90080-17090

9011910466

main90119-10466

9017908146

main90179-08146

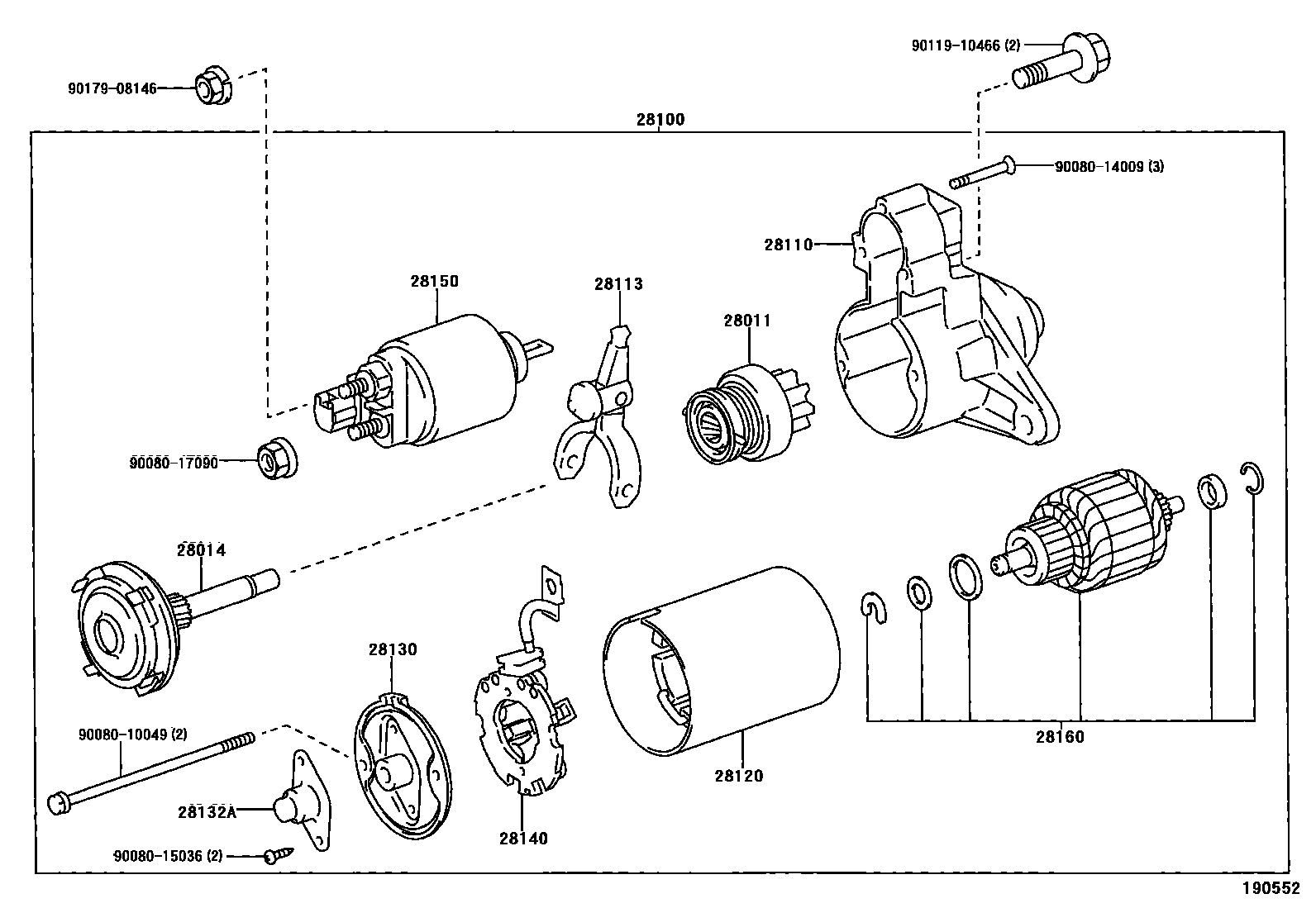

17 parts on this diagram · 8 diagrams in section
