ALTERNATOR

0001 112V 70A 0003 114V 90A 0004 112V 120A 0005 112V 100A 0006 114V 80A

27020ALTERNATOR ASSY

main27060-02100i4AFE,7AFE..AT22#199710-200007

12V 70A

main27060-03070i3SFE..ST220199710-200301

12V 70A

main27060-0B010i2CT#..CT220199710-200007

14V 90A

main27060-0D030i1ZZFE,3ZZFE..ZZT22#200007-200301

12V 80A

main27060-27030i1CDFTV..CDT220199908-200301

12V 120A

main27060-28060i1AZFSE..AZT220200007-200301

12V 100A

sub27060-28090

27020EBOLT(FOR ALTERNATOR)

main90105-10075i1ZZFE,3ZZFE..ZZT22#200007

main90105-10249i3SFE..ST220199710

main90105-10336i4AFE,7AFE..AT22#199710-200007

main90901-05004i1CDFTV,2CT#..CDT220,CT220199710-199711

main91511-60840i1AZFSE..AZT220200007-200202

NO.2

sub91511-J0840

main91512-81085i1AZFSE..AZT220200007-200202

NO.1

27039COVER, ALTERNATOR REAR END

main27039-02100i4AFE,7AFE,3SFE..AT22#,ST220199710

main27039-0B010i2CT#..CT220199710-200007

main27039-0D030i1ZZFE,3ZZFE..ZZT22#200007

main27039-20060i1AZFSE..AZT220200007-200101

main27039-20160i1AZFSE..AZT220200101

main27039-27010i1CDFTV..CDT220199908-200104

sub27039-28060

main27039-28060i1CDFTV..CDT220200104

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-02100i4AFE,7AFE..AT22#199710-200007

main27310-03070i3SFE..ST220199710

main27310-0B010i2CT#..CT220199710-200007

main27310-0D020i1ZZFE,3ZZFE..ZZT22#200007

main27310-27010i1CDFTV..CDT220199908

main27310-28050i1AZFSE..AZT220200007

27330ROTOR ASSY, ALTERNATOR

main27330-02020i4AFE,7AFE,3SFE..AT22#,ST220199710

main27330-0B010i2CT#..CT220199710-200007

main27330-0D020i1ZZFE,3ZZFE..ZZT22#200007

main27330-20070i1CDFTV..CDT220199908

main27330-28050i1AZFSE..AZT220200007

27401STATOR SUB-ASSY ALTERNATOR W/RECTIFIER

main27401-02010i4AFE,7AFE..AT22#199710-200007

main27401-03010i3SFE..ST220199710

main27401-0B010i2CT#..CT220199710-200007

main27401-0D010i1ZZFE,3ZZFE..ZZT22#200007

27403PULLEY SET, ALTERNATOR

main27403-02010i4AFE,7AFE..AT22#199710-200007

main27403-03010i3SFE..ST220199710

main27403-0B010i2CT#..CT220199710-200007

main27403-0D010i1ZZFE,3ZZFE..ZZT22#200007

27404BEARING SET, ALTERNATOR

main27404-02020i4AFE,7AFE,3SFE..AT22#,ST220199710

main27404-0B010i2CT#..CT220199710-200007

main27404-0D010i1ZZFE,3ZZFE..ZZT22#200007

27446CLIP, ALTERNATOR CORD

main27446-02090i4AFE,7AFE..AT22#199710-200007

main27446-03070i3SFE..ST220199710

main27446-0B010i2CT#..CT220199710-200007

main27446-28110i1AZFSE..AZT220200007

main27446-64450i1CDFTV..CDT220199908

27702REGULATOR SUB-ASSY GENERATOR W/BRUSH

main27702-02010i3SFE..ST220199710

main27702-02020i4AFE,7AFE..AT22#199710-200007

main27702-0B010i2CT#..CT220199710-200007

main27702-0D010i1ZZFE,3ZZFE..ZZT22#200007

9017906158

main90179-06158

9017910181

main90179-10181

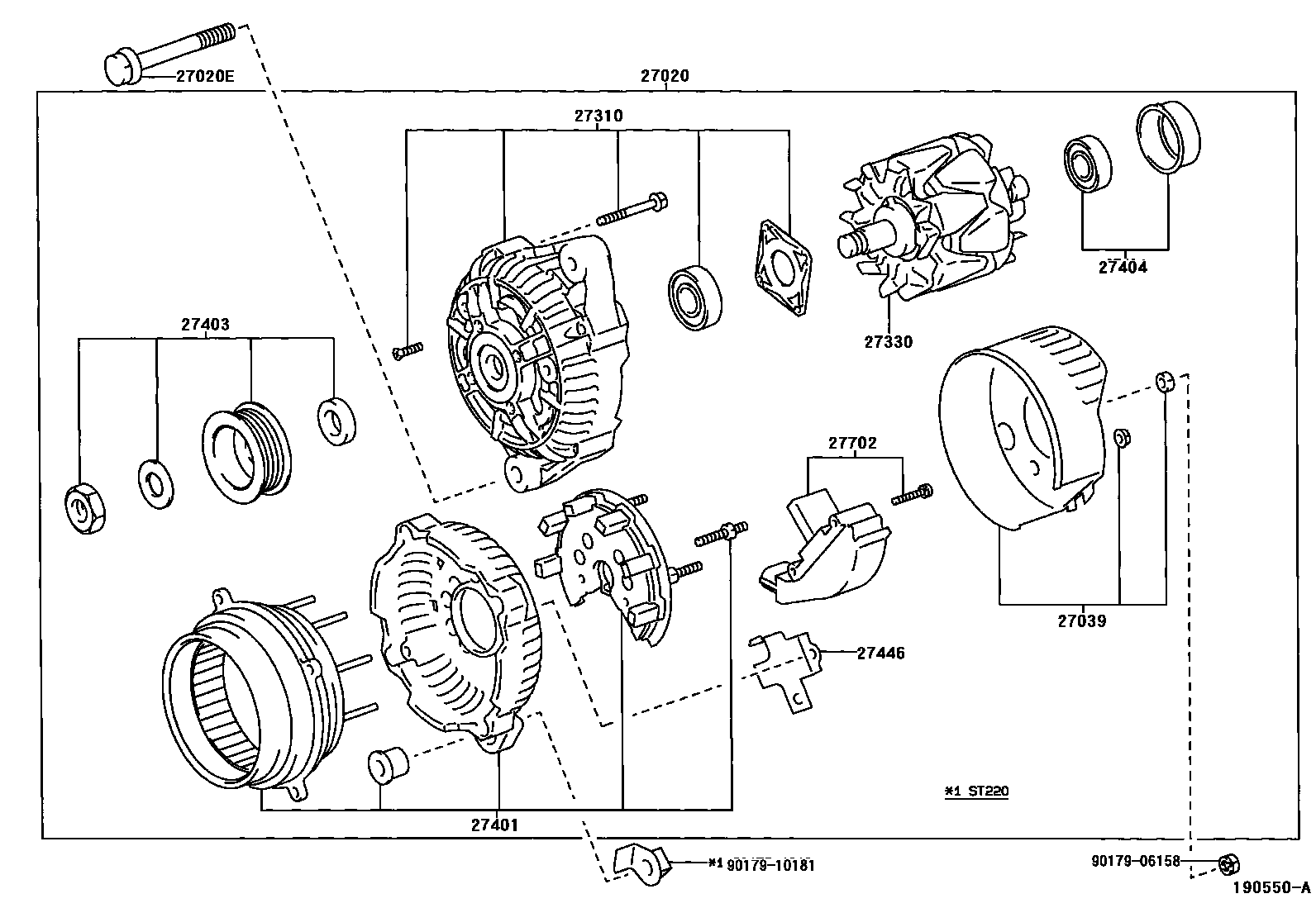

12 parts on this diagram · 5 diagrams in section
