IGNITION COIL & SPARK PLUG / GLOW PLUG

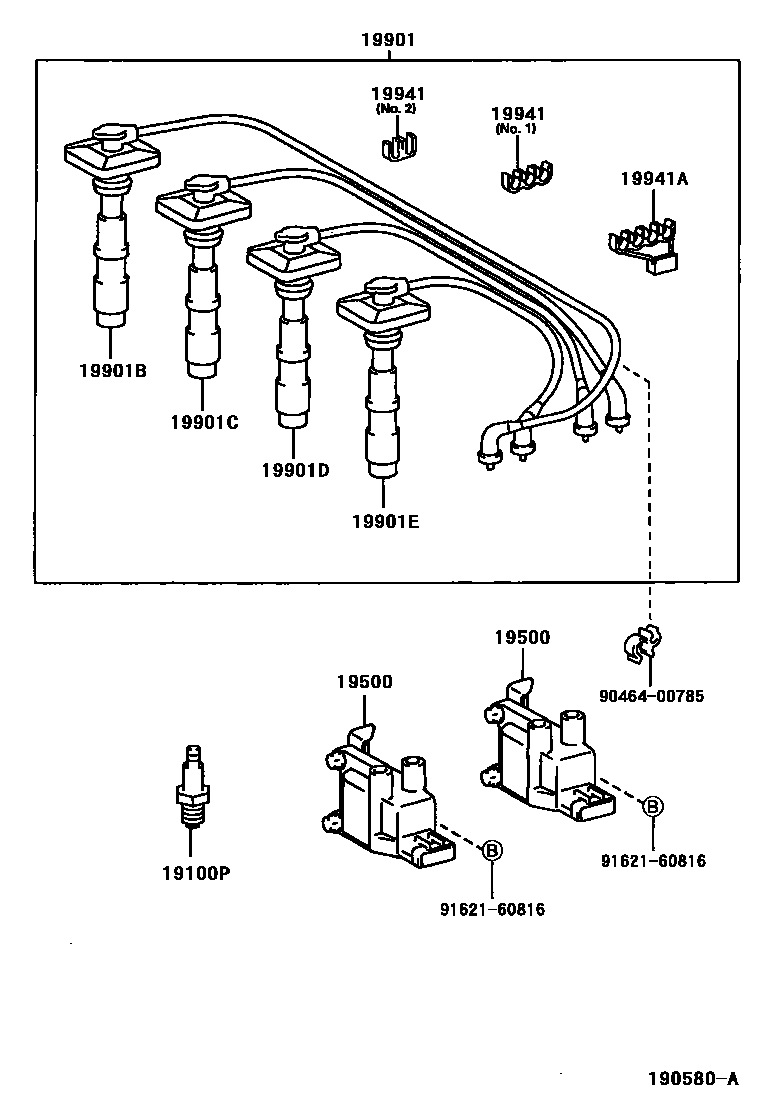

Parts diagram
19100PPLUG, SPARK
main90080-91108×4i199710-200007
FR 7 KCW
main90080-91159×4i199710-199805
LEAN BURN
main90080-91193×4i200007
K16R-U11,(L)
main90919-01164×4i199710-200007
K16R-U11
main90919-01194×4i199710-200007
PK20TR11
main90919-01195×4i199710-200007
BKR6EKPB11
main90919-01198×4i199710
K20TR11
main90919-01212×4i199710-200007
SK20R-P13
main90919-01230×4i200007
SK20BR11
19500COIL ASSY, IGNITION
main19500-16030×2i199710-199805
LEAN BURN
main90080-19005i199710-200007
main90080-19019×4i200007
(L)
sub90919-W2001
main90919-02239×4i200007
(J)
sub90919-02262
main90919-02247×4i200007-200209
main90919-02248×4i200209
sub90919-02260
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90080-91127i199710-200007
main90919-22327i199710-200007
W/O(OIL COOLER)
sub90919-22419
main90919-22386i199710-199808
main90919-22400i199808
main90998-99002i199710-200007
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90080-91103i199710-200007
main90080-91132i199710-199805
LEAN BURN
main90919-15211i199710-200007
W/O(OIL COOLER)
sub90919-15590
main90919-15466i199710-199808
main90919-15546i199808
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90080-91104i199710-200007
main90080-91131i199710-200007
main90919-15210i199710-200007
W/O(OIL COOLER)
sub90919-15591
main90919-15465i199710-199808
main90919-15547i199808
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90080-91105i199710-200007
main90080-91130i199710-199805
LEAN BURN
main90919-15209i199710-200007
W/O(OIL COOLER)
sub90919-15592
main90919-15464i199710-199808
main90919-15548i199808
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90080-91106i199710-200007
main90080-91129i199710-200007
main90919-15208i199710-200007
W/O(OIL COOLER)
sub90919-15593
main90919-15463i199710-199808
main90919-15549i199808
19941CLAMP, RESISTIVE CORD, NO.1
main90080-46176i199710-200007
NO.1
main90080-46187i199710-200007
NO.2
main90464-00561i199710-200007
W/O(OIL COOLER),NO.1
main90464-00655i199710-200007
W/O(OIL COOLER),NO.2
19941ACLAMP(FOR RESISTIVE CORD)
main90080-46175i199710-200007
main90929-01273i199710-200007
W/O(OIL COOLER)
9046400785
main90464-00785
9162160816
main91621-60816

11 parts on this diagram · 8 diagrams in section
