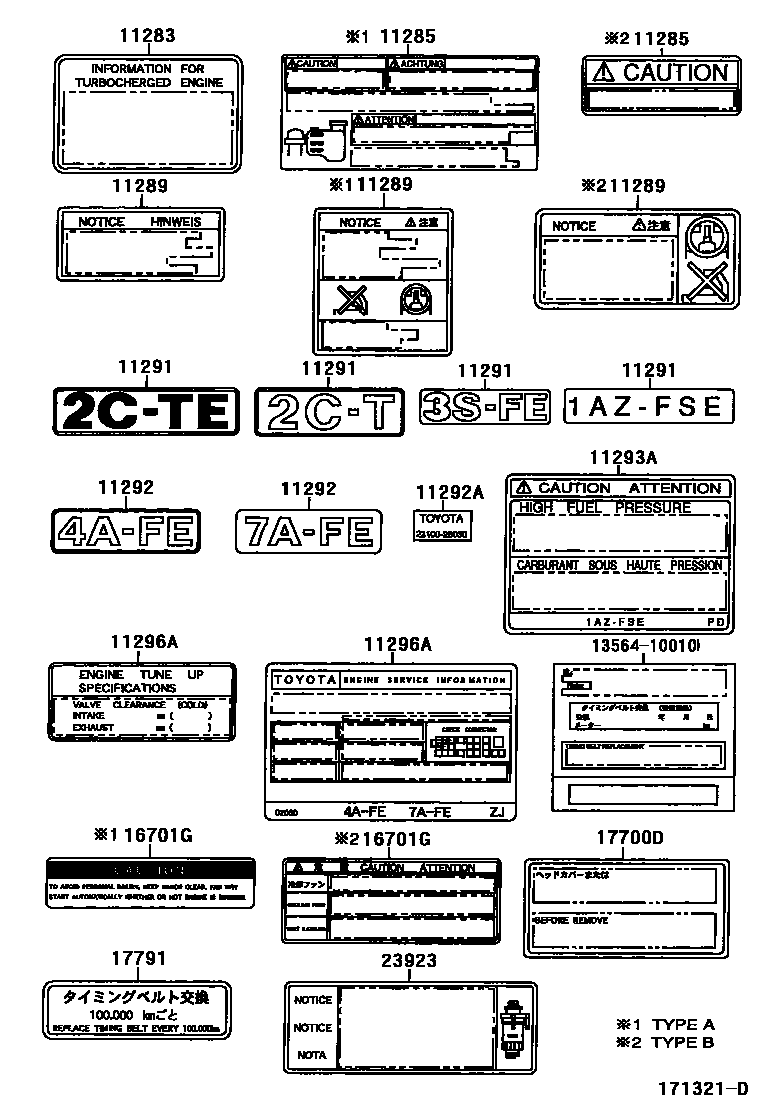

CAUTION PLATE & NAME PLATE (ENGINE)
11283PLATE, TURBOCHARGER CAUTION
11285PLATE, COOLANT SYSTEM CAUTION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
11289PLATE, SPARK PLUG CAUTION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
11291PLATE, ENGINE NAME
11292PLATE, ENGINE NAME, NO.2
11292ALABEL, IDENTIFICATION
11293APLATE, ENGINE CAUTION
11296ALABEL, ENGINE SERVICE INFORMATION
16701GLABEL, CAUTION
main88596-05010i1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
sub16793-31070
17700DPLATE, ENGINE CAUTION
17791LABEL, MAINTENANCE INFORMATION
23923PLATE, FUEL SEDIMENTER CAUTION
1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION
main13564-10010
13 parts on this diagram · 1 diagram in section
