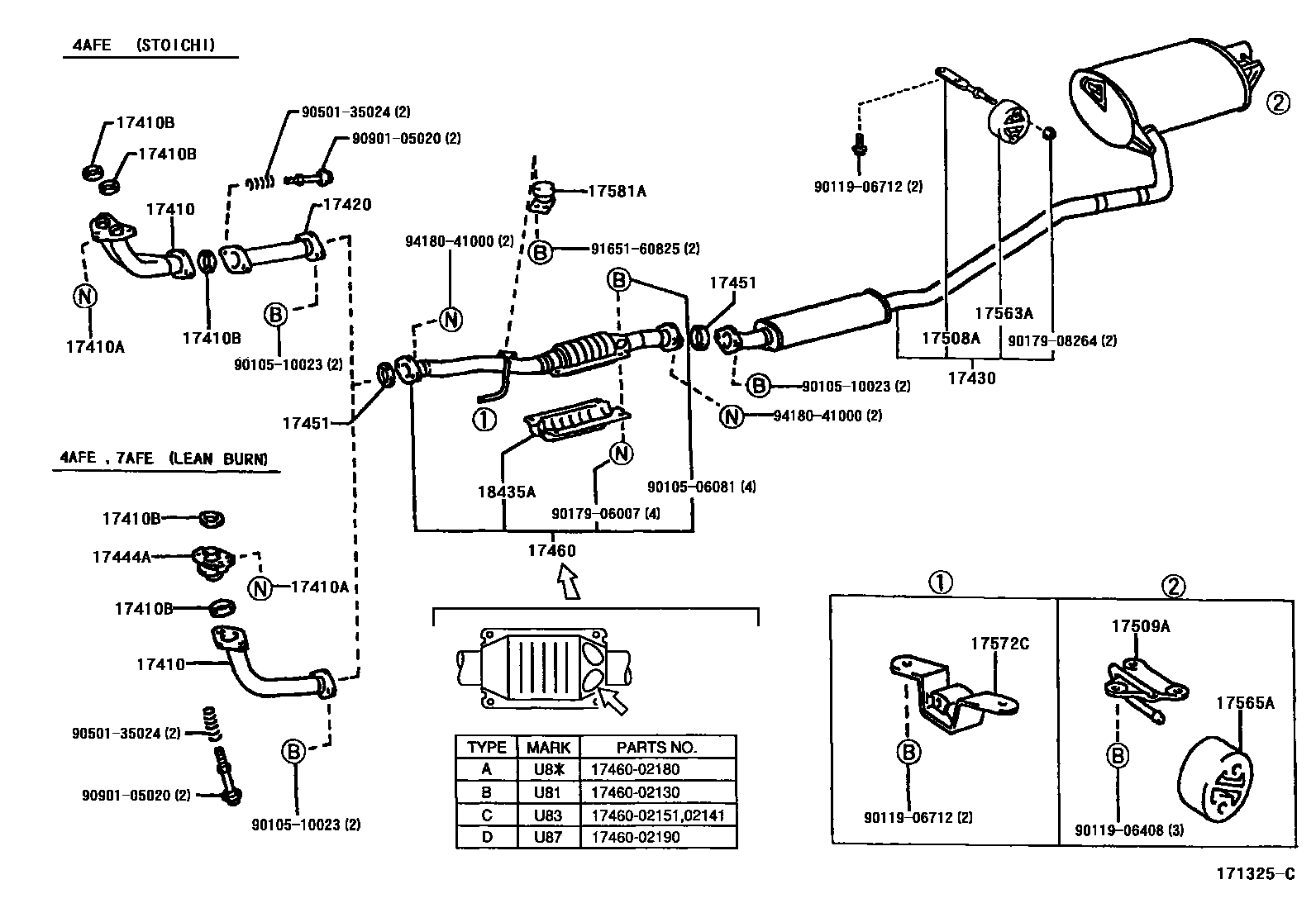

EXHAUST PIPE

0001 1W(CONVERTER) 0002 1W/O(CONVERTER) 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-02180i4AFE..AT220..LHD199710-200007

STOICH

main17410-02190i4AFE..AT220..TERRA199710-199805

LEAN BURN

main17410-02190i4AFE..AT220..RHD199805-200007

main17410-02340i7AFE..AT221199710-200007

main17410-02350i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(CONVERTER)

main17410-03250i3SFE..ST220199710-200301

main17410-0B020i2CT#..CT220199710-200007

main17410-0B040i1CDFTV..CDT220199908-200301

*114=TOYOTA/U85/N

main17410-0D030i3ZZFE..ZZT220200007-200301

*114=TOYOTA/U88/Y

main17410-0D040i1ZZFE..ZZT221200007-200301

*114=TOYOTA/U59/Y

main17410-0H010i1AZFSE..AZT220200007-200301

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i3SFE..ST220199710-199805

LEAN BURN

main90179-10070i1ZZFE..ZZT221;4AFE..AT220..LHD199710

17410BGASKET, EXHAUST PIPE

main17451-02030i4AFE,7AFE,3SFE..AT22#,ST220199710-200007

REAR

main17451-0B010i1CDFTV..CDT220199908

main17451-0H010i1AZFSE..AZT220200007

main17451-21030i3ZZFE..ZZT220200007

main17451-22020i3SFE..ST220200007

REAR

main17451-64010i2CT#..CT220199710-200007

main90917-06061i1ZZFE..ZZT221200007

main90917-06061i4AFE..AT220..LHD199710-200007

STOICH,FRONT

main90917-06064i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(CONVERTER),FRONT

main90917-06065i7AFE..AT221;4AFE..AT220..TERRA199710-199805

FRONT

main90917-06065i7AFE..AT221;4AFE..AT220..TERRA199710-199805

LEAN BURN,FRONT

17420PIPE ASSY, EXHAUST, CENTER

main17420-02120i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(CONVERTER),FRONT

main17420-02130i4AFE..AT220..LHD199710-200007

main17420-02140i4AFE..AT220..LHD..SED..TERRA199710-200007

W/O(CONVERTER),REAR

main17420-03160i3SFE..ST220199710

17430PIPE ASSY, EXHAUST, TAIL

main17430-02180i4AFE,7AFE,3SFE..AT22#,ST220..LB,SED199710-199802

sub17430-02181

main17430-02181i3SFE..ST220199802-200007

main17430-02200i4AFE,7AFE,3SFE..AT22#,ST220..WG199710-199802

sub17430-02201

main17430-02201i4AFE,7AFE,3SFE..AT22#,ST220..WG199802-200007

main17430-0B030i2CT#..CT220..LB,SED199710-199802

sub17430-0B031

main17430-0B031i2CT#..CT220..LB,SED199802-200007

main17430-0B050i2CTE..CT220..WG199710-199802

sub17430-0B051

main17430-0B051i2CTE..CT220..WG199802-200007

main17430-0B080i1CDFTV..CDT220..LB,SED199908-200007

main17430-0B090i1CDFTV..CDT220..WG199908-200007

main17430-0D060i3ZZFE..ZZT220200007

main17430-0D070i1ZZFE..ZZT221200007

main17430-0H010i1AZFSE..AZT220200007

17444ASPACER, EXHAUST FRONT PIPE

main17444-02030i7AFE..AT221;4AFE..AT220..TERRA199710-200007

17451GASKET, EXHAUST PIPE

main90917-06046i1AZFSE,1CDFTV,2CT#,1ZZFE,3ZZFE..AZT220,CDT220,CT220,ZZT22#199710

17460CONVERTER ASSY, CATALYTIC W/PIPE

main17460-02130i4AFE..AT220..LHD199710-200007

*115=TOYOTA/-00/N,STOICH;TYPE B:REFER TO ILLUSTRATION

main17460-02141i4AFE..AT220..TERRA199710-199803

LEAN BURN;TYPE C:REFER TO ILLUSTRATION

main17460-02151i7AFE..AT221199710-199908

LEAN BURN;TYPE C:REFER TO ILLUSTRATION

sub17460-02220

main17460-02180i4AFE..AT220..LHD..TERRA199803-200007

*115=TOYOTA/-00/N,STOICH(D3);TYPE A:REFER TO ILLUSTRATION

main17460-02190i4AFE..AT220..RHD199805-199908

main17460-02190i7AFE..AT221..LHD199803-199908

STOICH;TYPE D:REFER TO ILLUSTRATION

main17460-02190i4AFE..AT220..TERRA199803-199805

LEAN BURN;TYPE D:REFER TO ILLUSTRATION

main17460-02210i7AFE..AT221..LHD199908-200007

*115=TOYOTA/-00/N,STOICH

main17460-02210i4AFE..AT220..RHD199908-200007

*115=TOYOTA/-00/N

main17460-02220i7AFE..AT221199908-200007

*115=TOYOTA/-00/N,LEAN BURN

main17460-03030i3SFE..ST220199710-200301

*114=TOYOTA/U80/N

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-02050i1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#199710-200007

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-02020i1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-16270i1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#199710-200007

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-16270i1AZFSE,3SFE,1ZZFE,3ZZFE..AZT220,ST220,ZZT22#199710-200007

main17565-64180i1CDFTV..CDT220200007

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-74430i1AZFSE,4AFE,7AFE,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,ST220,ZZT22#199710

17581ADAMPER, EXHAUST PIPE

main17581-16020i1AZFSE,3SFE,3ZZFE..AZT220,ST220,ZZT220199710

sub17581-16030

main17581-16070i4AFE,7AFE..AT22#199710-200007

main17581-22010i1ZZFE..ZZT221200007

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-02030i4AFE,7AFE..AT22#199710-200007

9010506081

main90105-06081

9010510023

main90105-10023

9011906408

main90119-06408

9011906712

main90119-06712

9017906007

main90179-06007

9017908264

main90179-08264

9050135024

main90501-35024

9090105020

main90901-05020

9165160825

main91651-60825

9418041000

main94180-41000
