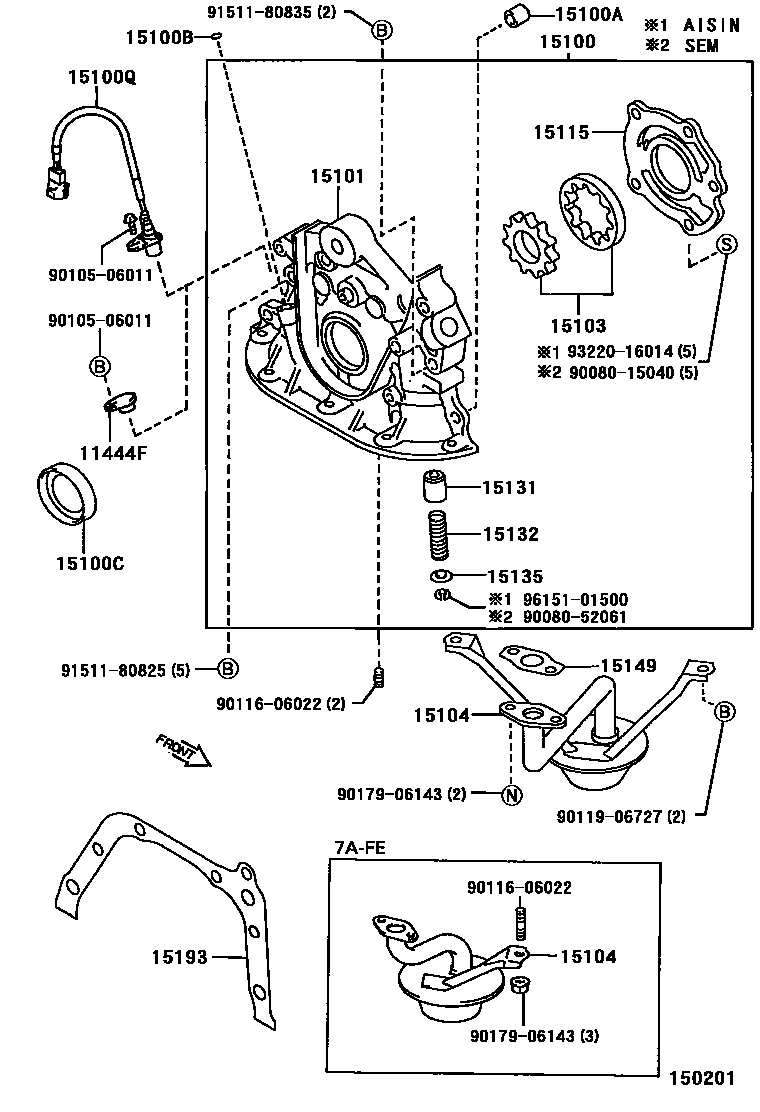

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11444FPLUG, HOLE(FOR OIL PUMP)

main11444-02010i4AFE..AT220..LHD..SED..TERRA199710-200007

15100PUMP ASSY, OIL

main15100-02050i4AFE..AT220199710-200007

SEM

main15100-02100i7AFE..AT221199710-200007

sub15100-16070

main15100-0D030i1ZZFE,3ZZFE..ZZT22#200007-200206

(L)

sub15100-0D031

main15100-0D031i1ZZFE,3ZZFE..ZZT22#200206

(L)

sub15100-22041

main15100-15080i4AFE..AT220199710-200007

AISIN SEIKI

main15100-22040i1ZZFE,3ZZFE..ZZT22#200007-200206

(J)

sub15100-22041

main15100-22041i1ZZFE,3ZZFE..ZZT22#200206

(J)

main15100-27010i1CDFTV..CDT220199908

main15100-28030i1AZFSE..AZT220200007

main15100-64040i2CT#..CT220199710-199812

sub15100-64041

sub90119-08B81

main15100-64041i2CT#..CT220199812-199906

sub15100-64042

main15100-64042i2CT#..CT220199906-200007

main15100-74050i3SFE..ST220199710

15100APIN, RING(FOR OIL PUMP SET)

main90253-09003i1ZZFE,3ZZFE..ZZT22#200007

main90253-11021i4AFE,7AFE..AT22#199710-200007

15100BRING, O(FOR OIL PUMP)

main15188-74050i3SFE..ST220199710

main96721-19010i4AFE,7AFE..AT22#199710-200007

15100CSEAL(FOR OIL PUMP)

main15165-74020i3SFE..ST220199710

main90311-32002i4AFE,7AFE..AT22#199912-200003

sub90311-32020

main90311-32020i4AFE,7AFE..AT22#199710-200007

15100QSENSOR, CRANK POSITION

main90919-05011i4AFE,7AFE..AT22#199710-200007

15101BODY SUB-ASSY, OIL PUMP

main15011-15080i4AFE..AT220199710-200007

AISIN SEIKI

main15101-02050i4AFE..AT220199710-200007

SEM

main15101-02100i7AFE..AT221199710-200007

15103GEAR SET, OIL PUMP

main15103-02030i7AFE..AT221199805-200007

SEM

main15103-02100i7AFE..AT221;4AFE..AT220..RHD;4AFE..AT220..SED..SOL;4AFE..AT220..LHD..(LB,WG)199710-199805

W/O(OIL COOLER)

sub15103-02030

main15103-15020i4AFE..AT220199710-200007

AISIN

main15103-22040i1ZZFE,3ZZFE..ZZT22#200007

15104STRAINER SUB-ASSY, OIL

main15104-0D030i1ZZFE,3ZZFE..ZZT22#200007

(L)

main15104-15090i4AFE..AT220199710-200007

main15104-16060i7AFE..AT221199710-200007

main15104-22022i1ZZFE,3ZZFE..ZZT22#200007-200204

(J)

sub15104-22023

main15104-22023i1ZZFE,3ZZFE..ZZT22#200204

(J)

main15104-27010i1CDFTV..CDT220199908-200007

sub15104-27040

main15104-27040i1CDFTV..CDT220200007

main15104-64080i2CT#..CT220199710-200007

main15104-74090i3SFE..ST220199710

15115COVER, OIL PUMP

main15115-02030i4AFE..AT220199710-200007

SEM

main15115-15020i4AFE..AT220199710-200007

AISIN SEIKI

main15115-22040i1ZZFE,3ZZFE..ZZT22#200007

15131VALVE, OIL PUMP RELIEF

main15131-02030i7AFE..AT221199710-200007

SEM

main15131-24010i4AFE..AT220199710-200007

AISIN SEIKI

main15131-24010i3SFE..ST220199710

main15131-46040i1AZFSE..AZT220200007

main15131-64020i2CT#..CT220199710-199812

main15131-64041i1CDFTV,2CT#..CDT220,CT220199812

15132SPRING, OIL PUMP RELIEF VALVE

main15132-02030i4AFE..AT220199710-200007

SEM

main15132-17010i1CDFTV,2CT#..CDT220,CT220199812

main15132-22040i1ZZFE,3ZZFE..ZZT22#200007

main15132-28020i1AZFSE..AZT220200007

main15132-40010i4AFE..AT220199710-200007

AISIN SEIKI

main15132-40010i3SFE..ST220199710

main15132-64012i2CT#..CT220199710-199812

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-02030i7AFE..AT221199710-200007

SEM

main15135-15010i4AFE..AT220199710-200007

AISIN SEIKI

main15135-15010i3SFE..ST220199710

15149GASKET, OIL STRAINER FLANGE

main15149-02020i4AFE,7AFE..AT22#199710-200007

main15149-0D020i1ZZFE,3ZZFE..ZZT22#200007

(L)

sub15149-22010

main15149-22010i1ZZFE,3ZZFE..ZZT22#200007

(J)

15193GASKET, OIL PUMP

main15193-28010i1AZFSE..AZT220200007

main15193-64021i2CT#..CT220199710-199804

sub15193-64022

main15193-64022i1CDFTV,2CT#..CDT220,CT220199804

main15197-0D020i1ZZFE,3ZZFE..ZZT22#200007

(L)

sub15197-22010

main15197-15030i4AFE..AT220199710-199908

sub15197-16030

main15197-16010i7AFE..AT221199710-200007

main15197-22010i1ZZFE,3ZZFE..ZZT22#200007

(J)

main15197-74040i3SFE..ST220199710

9008015040

main90080-15040

9008052061

main90080-52061

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

25 parts on this diagram · 6 diagrams in section
