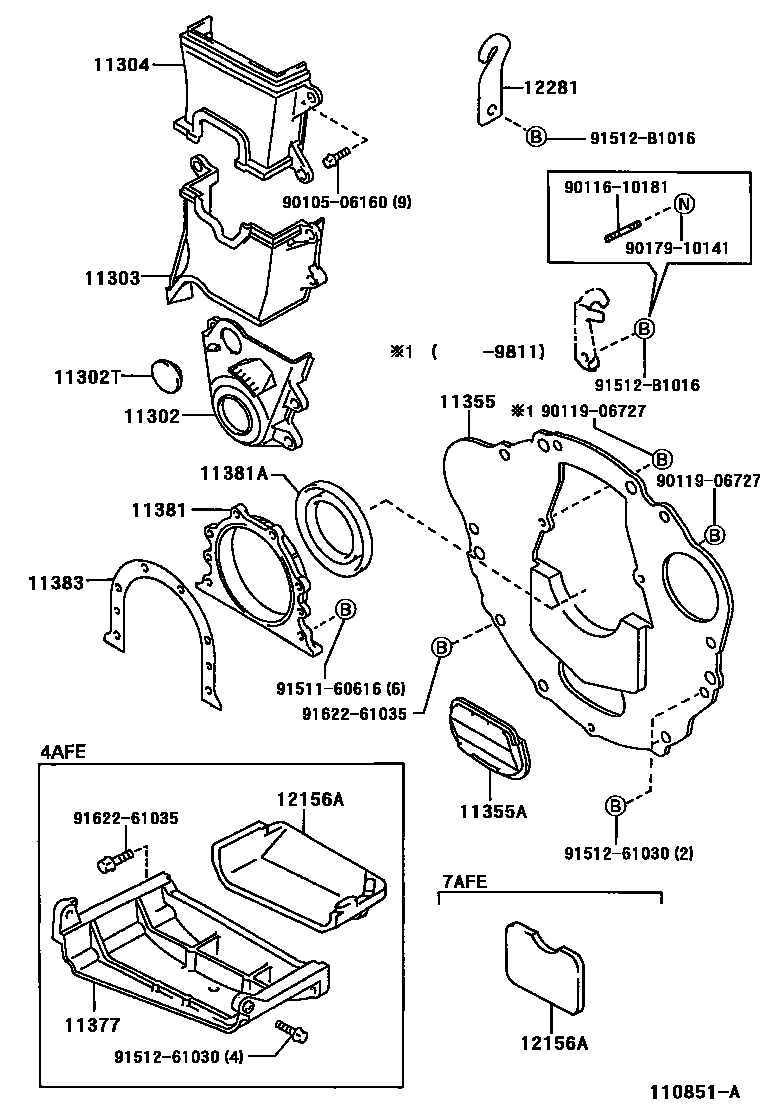

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-02040i4AFE,7AFE..AT22#199710-200007

main11302-74040i3SFE..ST220199710

main11310-28080i1AZFSE..AZT220200011-200208

sub11310-28081

main11310-28081i1AZFSE..AZT220200208

main11321-0D020i1ZZFE,3ZZFE..ZZT22#200007

(L)

main11321-22021i1ZZFE,3ZZFE..ZZT22#200007

(J)

main11321-28030i1AZFSE..AZT220200007-200011

sub11310-28050

11302TPLUG, HOLE

main90950-01783i4AFE,7AFE..AT22#199710-200007

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-02040i4AFE..AT220199710-200007

sub11303-16060

main11303-02080i7AFE..AT221199710-200007

sub11303-16070

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..ST220199710

main11304-02030i4AFE..AT220199710-200007

main11304-02040i7AFE..AT221199710-200007

11355PLATE, REAR END

main11355-02020i4AFE,7AFE..AT22#..MTM199710-200007

main11355-02030i7AFE..AT221..ATM199710-200007

main11355-27010i1CDFTV..CDT220199908-200105

sub11355-27011

main11355-27011i1CDFTV..CDT220200105

main11355-64051i2CT#..CT220199710-200003

sub11355-64052

main11355-64052i2CT#..CT220200003-200007

main11355-74010i3SFE..ST220199710

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i7AFE..AT221..ATM199710-200007

11377STIFFENER, REAR END PLATE

main11377-02011i4AFE..AT220199710-200007

sub11377-15012

main11377-03030i3SFE..ST220199710

sub11377-74050

11381RETAINER, ENGINE REAR OIL SEAL

main11381-02020i4AFE,7AFE..AT22#199710-200007

main11381-63012i3SFE..ST220199710

main11381-64012i2CT#..CT220199710-199812

sub11381-64020

main11381-64020i1CDFTV,2CT#..CDT220,CT220199812

11381ASEAL, ENGINE REAR OIL

main90080-31012i4AFE,7AFE..AT22#199710-200007

main90311-85006i3SFE..ST220199710-199801

ARS

sub90311-85009

main90311-85008i3SFE..ST220199710-200007

NOK

main90311-85009i3SFE..ST220199801-200007

ARS

main90311-85009i3SFE..ST220200007

main90311-90008i1CDFTV,2CT#..CDT220,CT220199710

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-02020i4AFE,7AFE..AT22#199710-200007

main11383-74021i3SFE..ST220199710

12156AINSULATOR, OIL PAN

main12156-16010i4AFE..AT220..TERRA199710-200007

main12156-16030i7AFE..AT221..MTM199710-200007

12281HANGER, ENGINE, NO.1

main12281-02020i4AFE,7AFE..AT22#199710-200007

main12281-22021i1ZZFE,3ZZFE..ZZT22#200007

9010506160

main90105-06160

9011610181

main90116-10181

9011906727

main90119-06727

9017910141

main90179-10141

9151160616

main91511-60616

9151261030

main91512-61030

91512B1016

main91512-B1016

9162261035

main91622-61035
