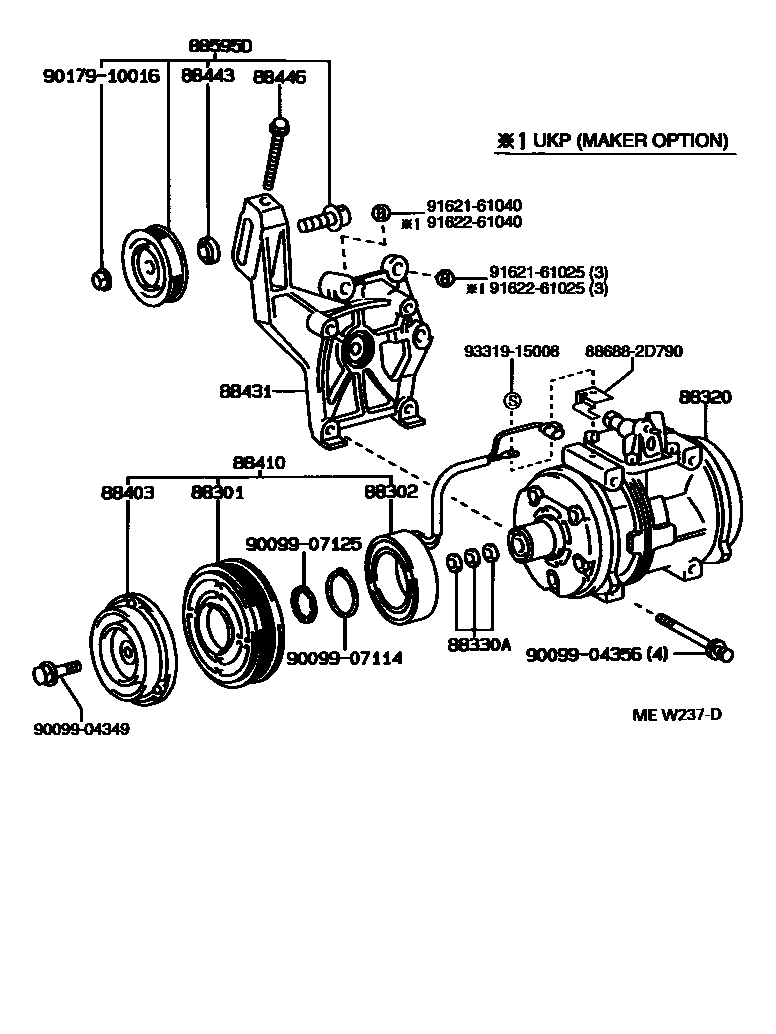

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20190iST191..UKP199601-199710

main88412-2B020iST191..UKP199212-199601

main88412-2B030iCT190..UKP..LHD199411-199509

DEALER OPTION

sub88412-33050

main88412-2B040iAT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main88412-2B040iAT19#..UKP199212-199601

main88412-33050iCT190..UKP..RHD;CT190..UKP..LHD..TD199509-199710

main88412-33050iCT190..UKP..LHD199509-199601

DEALER OPTION

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iCT190..UKP..RHD;CT190..UKP..LHD..TD199410-199710

sub88411-2A030

main88411-22310iCT190..UKP..LHD199411-199601

DEALER OPTION

sub88411-2A030

main88411-2B060iAT191..UKP..(LB,SED);AT190..UKP..LHD..ATM;AT190..UKP..RHD..(LB,SED)199412-199601

DEALER OPTION

main88411-2B060iAT190..UKP199212-199412

main88411-2B100iAT190..UKP..LHD..(LB,SED)..MTM199412-199601

LEAN BURN ENGINE & DEALER OPTION

main88411-2B100iAT19#..UKP..WG199505-199601

main88411-2B100iAT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main88411-32080iST191..UKP199212-199601

sub88411-2B090

88320COMPRESSOR ASSY, COOLER

main88320-2B110iAT190..UKP199212-199405

sub88320-35H92

main88320-2B120iST191..UKP199212-199710

main88320-2B130iCT190..UKP..RHD;CT190..UKP..LHD..TD199410-199710

sub88320-2BH90

main88320-2B130iCT190..UKP..LHD199411-199601

DEALER OPTION

sub88320-2BH90

main88320-2B300iAT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

sub88320-35H92

main88320-2B300iAT190..UKP..LHD199309-199601

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCT190..UKP..RHD;AT19#,ST191..UKP199212-199710

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iCT190..UKP..RHD;AT19#,ST191..UKP199212-199710

88410CLUTCH ASSY, MAGNET

main88410-2B040iST191..UKP199212-199710

main88410-2B060iCT190..UKP..RHD;CT190..UKP..LHD..TD199410-199710

main88410-2B060iCT190..UKP..LHD199411-199601

DEALER OPTION

main88410-2B070iAT190..UKP199212-199401

main88410-2B100iAT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main88410-2B100iAT19#..UKP199401-199601

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12460iCT190..UKP..LHD199410-199710

main88431-12550iAT190..UKP..LHD..(LB,SED)..MTM199412-199601

MAKER OPTION OR LEAN BURN ENGINE & DEALER OPTION

main88431-12550iAT19#..UKP..WG199505-199601

main88431-12550iAT190..UKP..LHD..SED..XL199601-199710

*EX-USSR

main88431-12550iAT190..UKP199405-199601

MAKER OPTION

main88431-20360iAT19#..UKP..(LB,SED)199405-199601

DEALER OPTION

main88431-20360iAT190..UKP199212-199405

88443COLLAR, IDLE PULLEY

main88443-36010iAT190..UKP..LHD..SED..XL199212-199710

88446BOLT, IDLE PULLEY

main88446-12030iAT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL199412-199710

main88446-12030iAT190..UKP199405-199412

MAKER OPTION

main88446-36010iAT19#..UKP..(LB,SED)199405-199601

DEALER OPTION

main88446-36010iAT190..UKP199212-199405

88595DPULLEY ASSY, IDLE

main88440-17010iAT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL199212-199710

main88440-17010iAT190..UKP..LHD199405-199412

MAKER OPTION

main88440-20160iAT19#..UKP..LHD..(LB,SED)199405-199601

DEALER OPTION

main88440-20160iAT190..UKP..LHD199212-199405

886882D790BRACKET, COOLER DIAPHRAGM

main88688-2D790

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9017910016

main90179-10016

9162161025

main91621-61025

9162161040

main91621-61040

9162261025

main91622-61025

9162261040

main91622-61040

9331915008

main93319-15008

21 parts on this diagram · 4 diagrams in section
