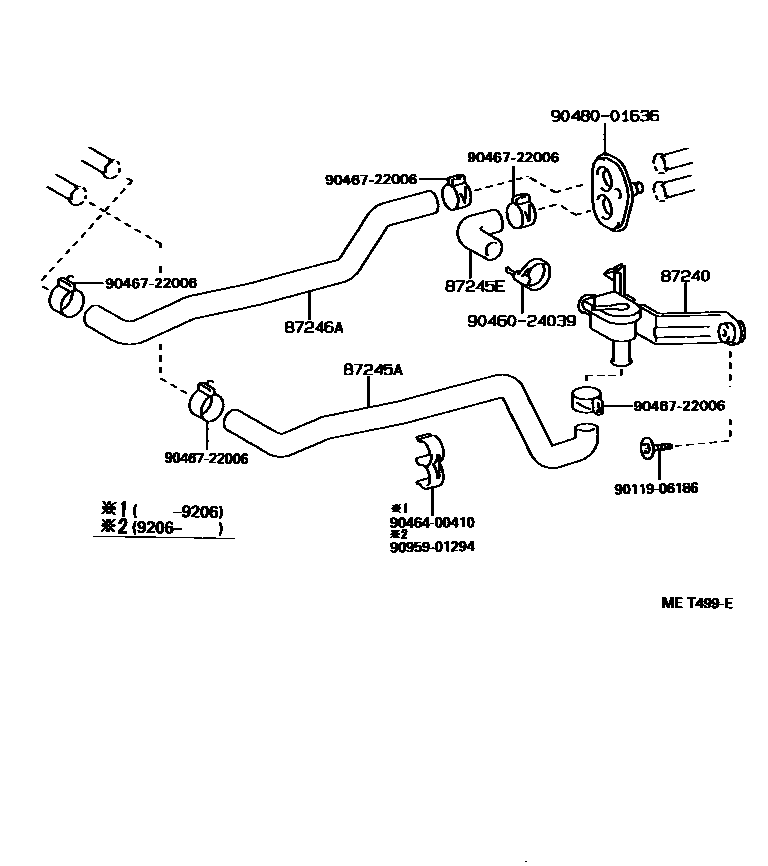

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

87240VALVE ASSY, HEATER WATER

main87240-20370iAT19#,CT190,ST191..UKP..RHD199212-199601

main87240-20380iAT19#,CT190,ST191..UKP..LHD199212-199601

main87240-20400iAT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,SED)..XL199212-199601

NORWAY SPEC OR FINLAND SPEC

main87240-20400iAT191..UKP..LHD;AT190..UKP..LHD..WG..XL199412-199601

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

87245AHOSE, HEATER WATER, INLET A

main87245-2B630iAT19#..UKP..RHD199212-199601

main87245-2B650iST191..UKP..RHD199212-199412

main87245-2B710iAT19#..UKP..LHD199212-199601

main87245-2B730iST191..UKP..LHD199212-199412

main87245-2B750iAT19#..UKP..RHD199601-199710

main87245-2B780iCT190..UKP..LHD199410-199601

main87245-2B860iAT19#..UKP..LHD199601-199710

main87245-2B880iAT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,SED)..XL199212-199601

NORWAY SPEC OR FINLAND SPEC

main87245-2B880iAT191..UKP..LHD;AT190..UKP..LHD..WG..XL199412-199601

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

main87245-2D120iST191..UKP..RHD199412-199601

main87245-2D130iST191..UKP..LHD199412-199601

main87245-2D140iCT190..UKP..RHD199410-199601

main87245-2D150iST191..UKP..RHD199601-199710

main87245-2D170iST191..UKP..LHD199601-199710

main87245-2D180iCT190..UKP..RHD199601-199710

main87245-2D200iCT190..UKP..LHD199601-199710

87245EHOSE, HEATER WATER, INLET E

main87245-2B610iAT19#,CT190,ST191..UKP..RHD199212-199601

main87245-2B620iAT19#,CT190,ST191..UKP..LHD199212-199601

main87245-2B870iAT191..UKP..LHD;AT190..UKP..LHD..WG..XL199412-199601

NORWAY SPEC OR SWEDEN SPEC OR FINLAND SPEC

main87245-2B870iAT190..UKP..LHD..GL;AT190..UKP..LHD..(LB,SED)..XL199212-199601

NORWAY SPEC OR FINLAND SPEC

87246AHOSE, HEATER WATER, OUTLET A

main87245-2B640iAT19#..UKP..RHD199212-199601

main87245-2B660iST191..UKP..RHD199212-199601

main87245-2B700iCT190..UKP..RHD199410-199601

main87245-2B720iAT19#..UKP..LHD199212-199601

main87245-2B740iST191..UKP..LHD199212-199601

main87245-2B790iCT190..UKP..LHD199410-199601

main87245-2B850iAT19#..UKP..RHD199601-199710

main87245-2B890iAT19#..UKP..LHD199601-199710

main87245-2D010iST191..UKP..RHD199601-199710

main87245-2D160iST191..UKP..LHD199601-199710

main87245-2D190iCT190..UKP..RHD199601-199710

main87245-2D210iCT190..UKP..LHD199601-199710

9011906186

main90119-06186

9046024039

main90460-24039

9046400410

main90464-00410

9046722006

main90467-22006

9048001636

main90480-01636

9095901294

main90959-01294

10 parts on this diagram · 9 diagrams in section
