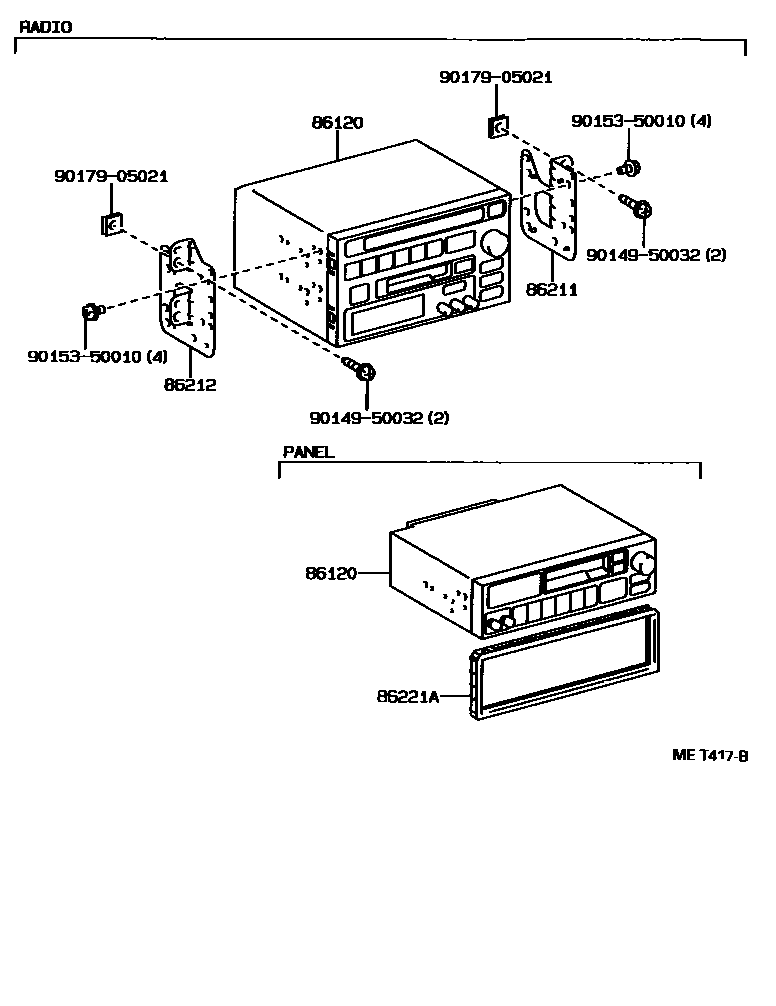

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1KNOB

86120RECEIVER ASSY, RADIO

main86120-05010iAT190,ST191..UKP..GL199212-199412

LW/MW/UKW MPX ETR CST RDS 4 SPEAKER

main86120-05020iAT190,CT190..UKP..XL199212-199412

LW/MW/UKW MPX ETR CST RDS 2 SPEAKER

main86120-05030iAT19#,CT190,ST191..UKP199412-199605

sub86120-05031

main86120-05031iAT19#,CT190,ST191..UKP199605-199710

86211BRACKET, RADIO, NO.1

main86211-05010iAT190,CT190,ST191..UKP..RHD199212-199412

main86211-05020iAT190,CT190,ST191..UKP..LHD199212-199412

main86211-05030iAT19#,CT190,ST191..UKP..RHD199412-199710

main86211-05040iAT191,CT190..UKP..LHD;AT190..UKP..LHD..SED..XL;AT190,ST191..UKP..LHD..(LB,WG)199601-199710

W(4 SPEAKER OR 6 SPEAKER)

main86211-05040iAT19#,CT190,ST191..UKP..LHD199412-199601

main86211-20320iST191..UKP..LHD..SED199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

main86211-20320iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC

86212BRACKET, RADIO, NO.2

main86212-05010iAT190,CT190,ST191..UKP..RHD199212-199412

main86212-05020iAT190,CT190,ST191..UKP..LHD199212-199412

main86212-05030iAT19#,CT190,ST191..UKP..RHD199412-199710

main86212-05040iAT190,ST191..UKP..LHD..SED..GL199601-199710

W(4 SPEAKER OR 6 SPEAKER)

main86212-05040iAT19#,CT190,ST191..UKP..LHD199412-199601

main86212-20310iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC

main86212-20310iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

86221APANEL, RADIO RECEIVER

main86220-12010iAT19#,CT190,ST191..UKP199212-199710

9014950032

main90149-50032

9015350010

main90153-50010

9017905021

main90179-05021

7 parts on this diagram · 3 diagrams in section
