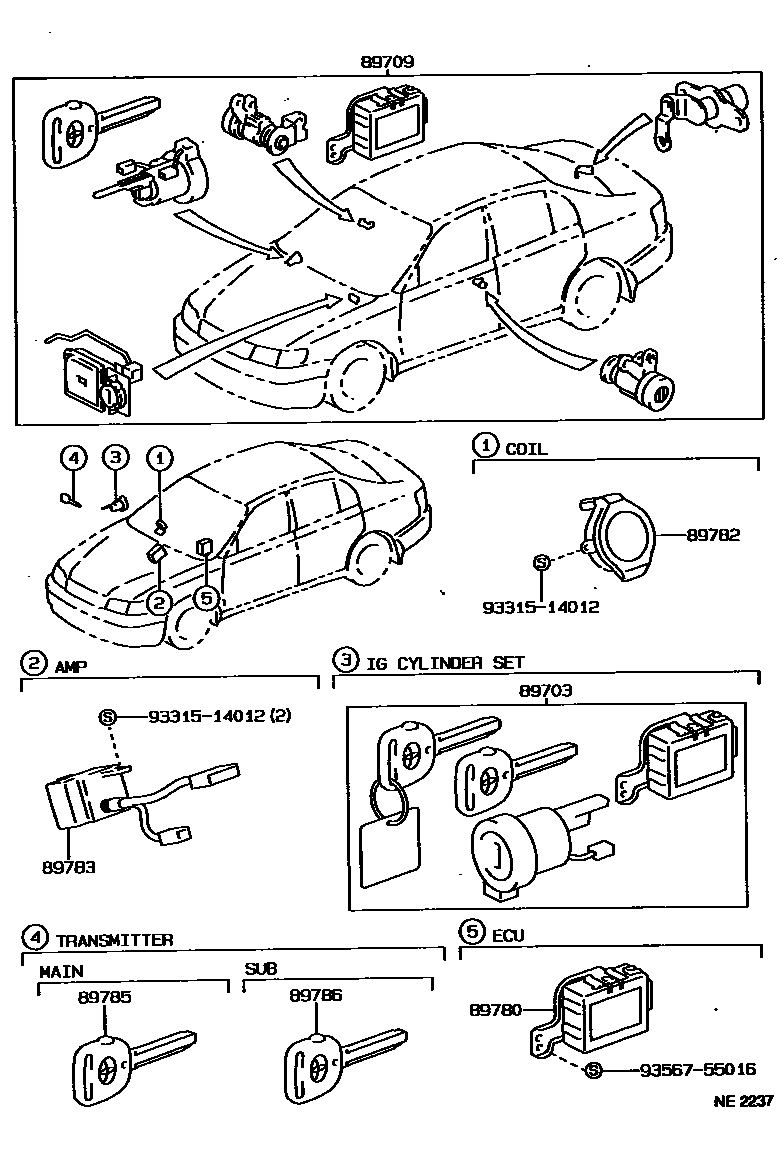

ANTI-THEFT DEVICE

0001 1 0002 1W(IMMOBILIZER) 0003 1W/O(IMMOBILIZER)

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-05010iAT19#,ST191..UKP..RHD199601-199710

main89703-05020iAT19#,ST191..UKP..LHD199601-199710

main89703-05030iCT190..UKP..RHD199601-199710

main89703-05040iCT190..UKP..LHD199601-199710

89709COMPUTER SET, TRANSPONDER KEY

main89709-05070iAT19#,ST191..UKP..RHD..SED199601-199710

main89709-05080iAT19#,ST191..UKP..RHD..LB199601-199710

main89709-05090iAT19#,ST191..UKP..RHD..WG199601-199710

main89709-05100iAT19#,ST191..UKP..LHD..SED199601-199710

main89709-05110iAT19#,ST191..UKP..LHD..LB199601-199710

main89709-05120iAT19#,ST191..UKP..LHD..WG199601-199710

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-20010iAT19#,ST191..UKP..RHD199601-199710

main89780-20020iAT19#,ST191..UKP..LHD199601-199710

89782COIL, TRANSPONDER KEY

main89782-20010iAT19#,CT190,ST191..UKP199601-199710

89783AMPLIFIER, TRANSPONDER KEY

main89783-20010iAT19#,CT190,ST191..UKP199601-199710

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-05020iAT19#,CT190,ST191..UKP199601-199710

BLANK

main89785-05030iAT19#,CT190,ST191..UKP199601-199710

CUT

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-05020iAT19#,CT190,ST191..UKP199601-199710

BLANK

main89786-05030iAT19#,CT190,ST191..UKP199601-199710

CUT

9331514012

main93315-14012

9356755016

main93567-55016

9 parts on this diagram · 3 diagrams in section
