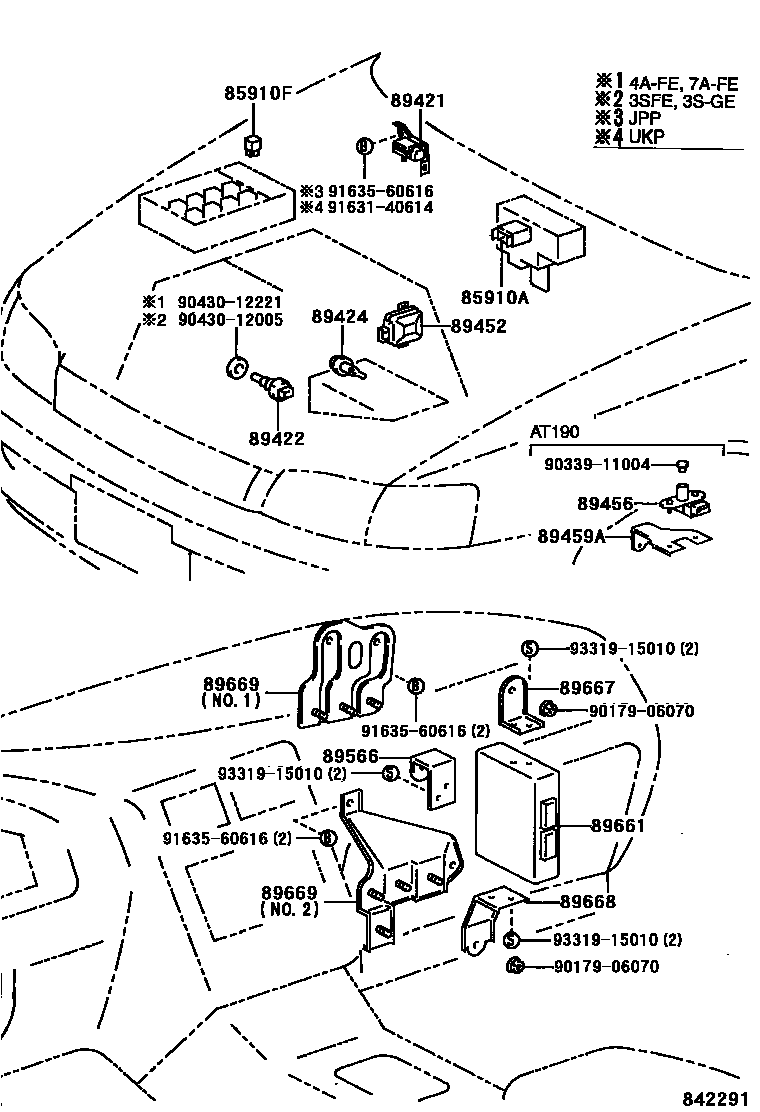

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-12010iAT19#,ST191..UKP199212-199710

85910FRELAY, COMPUTER (FOR EFI)

main90080-87005iAT19#,ST191..UKP199212-199710

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20230iST191..UKP199212-199710

main89420-20250iAT19#..UKP199212-199710

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-05010iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

sub89422-05020

main89422-20010iAT190..UKP..LHD..(LB,SED)199212-199710

LEAN BURN ENGINE

main89422-20010iAT191,ST191..UKP;AT190..UKP..LHD..WG;AT190..UKP..RHD..MTM199212-199710

main89422-35010iAT190..UKP..ATM;AT190..UKP..LHD..MTM199212-199601

main89422-35010iAT190..UKP..LHD..SED..XL199601-199710

LEAN BURN ENGINE

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT19#,ST191..UKP199212-199710

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-05010iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

main89452-22090iAT190..UKP..LHD..SED..XL199402-199710

LEAN BURN ENGINE

main89452-22090iAT190,ST191..UKP199212-199710

89456RESISTOR, VARIABLE

main89456-30010iAT190..UKP..LHD..SED..XL199601-199710

89459ABRACKET, VARIABLE RESISTOR

main89459-20030iAT190..UKP..LHD..SED..XL199601-199710

89566BRACKET, FUEL INJECTION COMPUTER

main89566-20020iAT190,ST191..UKP199212-199601

89661COMPUTER, ENGINE CONTROL

main89661-05010iAT190..UKP..LHD..(LB,SED)..MTM199402-199601

main89661-05020iAT190..UKP..LHD..WG199402-199601

sub89661-2B570

main89661-05020iAT190..UKP..LHD..MTM199402-199412

LEAN BURN ENGINE

sub89661-2B570

main89661-05030iAT191..UKP199412-199601

sub89661-21050

main89661-05040iST191..UKP..MTM199405-199601

sub89661-2B480

main89661-05050iAT190..UKP..LHD..WG;AT190..UKP..RHD..MTM199412-199601

LEAN BURN ENGINE

sub89661-21040

main89661-05060iAT190..UKP..LHD..(LB,SED)199601-199710

W/O(IMMOBILIZER)

main89661-05070iAT190..UKP..LHD..WG199601-199710

W/O(IMMOBILIZER) & LEAN BURN ENGINE

main89661-05070iAT190..UKP..LHD..(LB,SED)199601-199710

W/O(IMMOBILIZER)

main89661-05080iAT190..UKP..RHD;AT190..UKP..LHD..WG199601-199710

LEAN BURN ENGINE

main89661-05090iAT191..UKP..LHD..MTM199601-199710

W/O(IMMOBILIZER)

main89661-05100iAT191..UKP..MTM199601-199710

main89661-05110iST191..UKP..MTM199601-199710

main89661-05120iAT190..UKP..LHD..(LB,SED)199601-199710

main89661-05130iST191..UKP..LHD..SED..MTM199612-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

main89661-05130iST191..UKP..LHD..SED..MTM199601-199612

LATIN AMERICA SPEC OR BRAZIL SPEC OR ISRAEL & TURKEY SPEC

main89661-05140iAT191..UKP..LHD..ATM199601-199605

W/O(IMMOBILIZER)

main89661-05150iAT191..UKP..ATM199601-199605

main89661-05160iAT191..UKP..LHD..ATM199605-199710

W/O(IMMOBILIZER)

main89661-05170iAT191..UKP..ATM199605-199710

main89661-05180iAT191..UKP..LHD..ATM199605-199710

NORWAY,SWEDEN,DENMARK,FINLAND SPEC & W/O(IMMOBILIZER)

main89661-05190iAT191..UKP..LHD..ATM199605-199710

NORWAY,SWEDEN,DENMARK OR FINLAND SPEC

main89661-05330iST191..UKP..LHD..(LB,SED)..MTM199612-199710

ISRAEL SPEC OR TURKEY SPEC

main89661-2B380iAT190..UKP..ATM199212-199308

sub89661-2B381

main89661-2B480iST191..UKP..MTM199212-199405

main89661-2B490iST191..UKP..ATM199212-199405

main89661-2B580iAT190..UKP..RHD..MTM199212-199402

LEAN BURN ENGINE

main89661-2B580iAT190..UKP..LHD..WG199402-199601

main89661-2B600iST191..UKP..LHD..SED..ATM199601-199612

LATIN AMERICA SPEC OR BRAZIL SPEC OR ISRAEL & TURKEY SPEC

main89661-2B600iST191..UKP..LHD..SED..ATM199612-199710

LATIN AMERICA SPEC OR BRAZIL SPEC

main89661-2B620iAT190..UKP..ATM199308-199601

main89661-2B660iAT190..UKP..LHD..MTM199212-199402

main89661-2D010iST191..UKP..ATM199405-199601

main89661-2D090iAT190..UKP..LHD..SED..XL199601-199710

W/O(IMMOBILIZER) & *EX-USSR

main89661-2D310iST191..UKP..ATM199601-199710

main89661-2G010iST191..UKP..LHD..(LB,SED)..ATM199612-199710

ISRAEL SPEC OR TURKEY SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20220iAT190..UKP..LHD..(LB,SED)..MTM199402-199601

LEAN BURN ENGINE

main89667-20220iAT190,ST191..UKP199212-199402

main89667-20280iAT190,ST191..UKP..LHD199308-199402

main89667-20280iAT190..UKP..LHD..(LB,SED)..MTM199402-199601

LEAN BURN ENGINE

main89667-20290iAT191..UKP..RHD199412-199710

main89667-20300iAT190..UKP..LHD..SED..XL199601-199710

LEAN BURN ENGINE OR W/O(IMMOBILIZER) & *EX-USSR

main89667-20300iAT190..UKP..LHD..WG;AT191,ST191..UKP..LHD199601-199710

LEAN BURN ENGINE

main89667-20300iAT191..UKP..LHD199412-199601

main89667-20310iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC & W/O(IMMOBILIZER)

main89667-20310iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20190iAT190,ST191..UKP..RHD;AT190,ST191..UKP..LHD..MTM199212-199402

main89668-20190iAT190..UKP..LHD..WG;ST191..UKP..LHD..MTM;AT190,ST191..UKP..RHD199402-199601

LEAN BURN ENGINE

main89668-20260iAT190,ST191..UKP..LHD199308-199402

main89668-20260iST191..UKP..LHD;AT190..UKP..LHD..WG;AT190..UKP..LHD..ATM199402-199601

LEAN BURN ENGINE

main89668-20270iAT191..UKP..RHD199412-199710

main89668-20280iAT190..UKP..LHD..WG;AT191,ST191..UKP..LHD199601-199710

LEAN BURN ENGINE

main89668-20280iAT191..UKP..LHD199412-199601

main89668-20280iAT190..UKP..LHD..WG;AT191,ST191..UKP..LHD199601-199710

LEAN BURN ENGINE OR W/O(IMMOBILIZER) & *EX-USSR

main89668-20290iAT190..UKP..LHD..SED..GL199601-199710

LATIN AMERICA SPEC & W/O(IMMOBILIZER)

main89668-20290iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-20150iAT19#,ST191..UKP..RHD199212-199710

NO.1

main89669-20170iAT19#,ST191..UKP..RHD199212-199601

NO.2

main89669-20180iAT190..UKP..LHD..WG;ST191..UKP..LHD..MTM199402-199601

LEAN BURN,NO.1

main89669-20180iAT190,ST191..UKP..LHD199212-199601

NO.1

main89669-20190iAT190,ST191..UKP..LHD..MTM199212-199601

NO.2

main89669-20190iAT190..UKP..LHD..(LB,SED)..MTM199402-199601

LEAN BURN,NO.2

main89669-20280iAT19#,ST191..UKP..LHD199308-199710

NO.1

main89669-20290iAT19#,ST191..UKP..LHD199308-199601

NO.2

main89669-20291iAT19#,ST191..UKP..LHD199601-199710

NO.2

main89669-20300iAT191..UKP..RHD199412-199601

NO.2

main89669-20301iAT19#,ST191..UKP..RHD199601-199710

NO.2

9017906070

main90179-06070

9033911004

main90339-11004

9043012005

main90430-12005

9043012221

main90430-12221

9163140614

main91631-40614

9163560616

main91635-60616

9331915010

main93319-15010

20 parts on this diagram · 1 diagram in section
