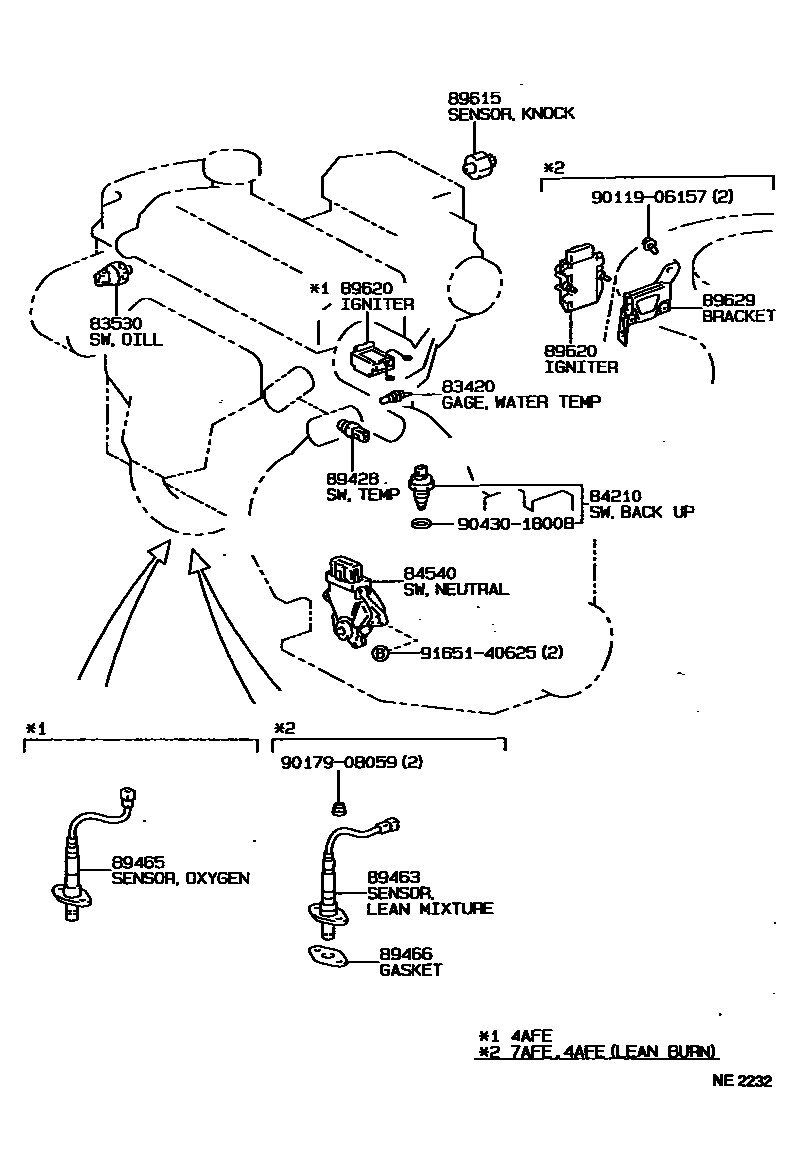

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-05010iAT19#..UKP199308-199601

JAEGAR

main83420-05010iAT19#..UKP199601-199710

JAEGER

main83420-16040iST191..UKP199212-199601

NIPPONDENSO

main83420-20020iCT190..UKP199410-199710

main83420-20030iST191..UKP199212-199601

YAZAKI

sub83420-16040

main83420-20040iAT19#..UKP199212-199601

NIPPONDENSO

main83420-20040iAT19#,ST191..UKP199601-199710

YAZAKI

main83420-AA010iST191..UKP199605-199710

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAT19#..UKP199601-199710

JAEGER

main83530-30060iCT190..UKP199410-199710

sub83530-60030

main83530-30090iAT19#..UKP199601-199710

YAZAKI

sub83530-60020

main83530-30090iAT19#,ST191..UKP199212-199601

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT19#,CT190,ST191..UKP..MTM199212-199710

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT19#..UKP..ATM199212-199710

TOKAIRIKA

main84540-12210iAT191..UKP..ATM199212-199710

MATUSITA

main84540-16040iST191..UKP..ATM199212-199601

main84540-16050iST191..UKP..ATM199601-199710

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-05010iAT190..UKP199212-199301

main89428-12150iAT190..UKP199308-199312

sub89428-12160

main89428-12160iAT19#..UKP199212-199710

main89428-33010iCT190,ST191..UKP199212-199710

89463SENSOR, LEAN MIXTURE

main89463-29045iAT190..UKP..MTM199212-199412

main89463-29055iAT19#..UKP..MTM199412-199710

main89463-29065iAT191..UKP..ATM199605-199710

89465SENSOR, OXYGEN

main89465-05020iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

main89465-20300iAT190..UKP..ATM199212-199601

main89465-20430iST191..UKP199601-199710

main89465-39435iST191..UKP199212-199601

89466GASKET, OXYGEN SENSOR

main89466-20020iAT19#..UKP199212-199710

89615SENSOR, KNOCK CONTROL

main89615-05010iAT190..UKP..LHD..(LB,SED)..MTM199402-199710

main89615-12030iAT191..UKP199412-199601

sub89615-22050

main89615-22030iAT191..UKP199212-199710

main89615-22040iAT190..UKP..ATM;AT190..UKP..LHD..MTM199212-199312

main89615-33020iST191..UKP199212-199710

sub89615-32030

89620IGNITER ASSY

main89620-12440iAT190..UKP..ATM199212-199708

main89620-16260iAT190..UKP..LHD..SED..XL199708-199710

main89621-05010iAT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL199601-199710

LEAN BURN ENGINE

main89621-05010iAT19#..UKP..MTM199405-199601

main89621-12050iAT190..UKP..LHD..MTM199212-199402

LEAN BURN ENGINE

main89621-12050iAT190..UKP..MTM199402-199405

main89621-16020iST191..UKP199212-199710

sub89621-26010

89629BRACKET, IGNITER ASSY

main89629-05010iAT191..UKP;AT190..UKP..MTM199405-199710

main89629-20140iST191..UKP;AT190..UKP..MTM199212-199710

9011906157

main90119-06157

9017908059

main90179-08059

9043018008

main90430-18008

9165140625

main91651-40625

15 parts on this diagram · 14 diagrams in section
