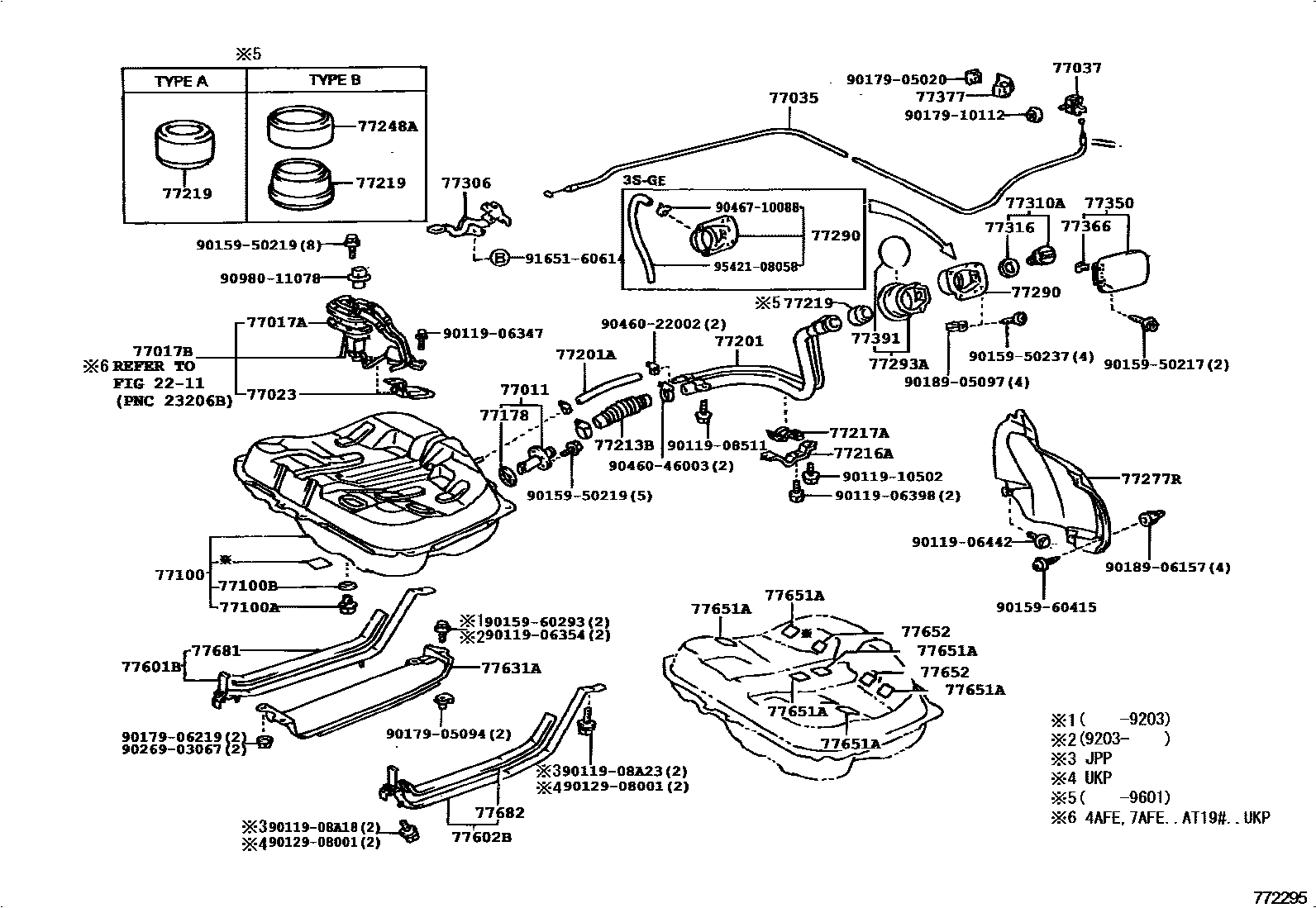

FUEL TANK & TUBE

0001 1 0003 1 0004 1W/O(CHARCOAL CANISTER) 0005 1 0006 1 0007 1 0008 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-05010iAT19#,CT190,ST191..UKP199412-199601

main77011-05020iAT19#,CT190,ST191..UKP199603-199710

sub77011-10050

main77011-10050iAT19#,CT190,ST191..UKP199212-199603

77017AGASKET, FUEL TANK VENT

main77169-05010iCT190..UKP199504-199710

main77169-05020iCT190..UKP199410-199504

sub77169-05010

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-05010iCT190..UKP199601-199710

main77017-20160iCT190..UKP199410-199601

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCT190..UKP199410-199710

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-05010iAT191,CT190..UKP..RHD..(LB,SED)199308-199710

main77035-05020iAT191,CT190..UKP..LHD..(LB,SED)199308-199710

main77035-20390iAT190,ST191..UKP..RHD199212-199312

main77035-20410iAT190,ST191..UKP..LHD199212-199710

main77035-21020iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iAT19#,CT190,ST191..UKP199212-199710

77100TANK ASSY, FUEL

main77001-09040iAT19#,CT190,ST191..UKP199212-199601

sub77001-09050

main77001-09050iAT19#,CT190,ST191..UKP199601-199710

sub77001-29296

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-05010iAT19#,CT190,ST191..UKP199412-199710

main77178-20030iAT19#,CT190,ST191..UKP199212-199603

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-05010iAT19#,ST191..UKP199308-199710

main77201-05020iCT190..UKP199410-199710

main77201-05020iAT190..UKP..LHD..SED..XL199601-199710

CIS SPEC

main77201-20400iAT19#,ST191..UKP199212-199601

CIS SPEC

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90080-44067iAT19#,CT190,ST191..UKP199702-199710

L=210

sub90445-22024

main90445-22024iAT19#,CT190,ST191..UKP199212-199610

L=385

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-18010iAT19#,CT190,ST191..UKP199212-199710

L=230

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-05010iCT190..UKP199308-199710

main77216-20100iAT19#,ST191..UKP199212-199601

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-05010iCT190..UKP199308-199710

main77217-32030iAT19#,ST191..UKP199212-199601

77219COVER, FUEL TANK FILLER PIPE

main77219-05010iAT19#,CT190,ST191..UKP199412-199710

TYPE B

main77219-20070iAT190,CT190,ST191..UKP199308-199412

TYPE B

main77219-32030iAT19#,ST191..UKP199308-199601

TYPE A

main77219-32030iAT190,ST191..UKP199212-199308

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-05010iAT19#,CT190,ST191..UKP199412-199710

main77248-20030iAT190,ST191..UKP199308-199312

TYPE B

main77248-20030iAT190,CT190,ST191..UKP199312-199412

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-05010iCT190..UKP199308-199710

main77277-20210iAT190,ST191..UKP199212-199312

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-05010iCT190..UKP199308-199710

main77290-20140iAT190,ST191..UKP199212-199312

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-05010iCT190..UKP199308-199710

main77293-20090iAT190,ST191..UKP199212-199312

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-14010iAT19#,CT190,ST191..UKP..RHD..WG199505-199710

main77306-14020iAT19#,CT190,ST191..UKP..LHD..WG199505-199710

77310ACAP ASSY, FUEL TANK

main77310-05010iCT190..UKP199410-199710

(L)

main77310-06011iAT19#,ST191..UKP199212-199710

(L)

sub77310-48010

main77310-16011iAT19#,ST191..UKP199608-199609

(J)

sub77310-12140

main77310-32011iCT190..UKP199608-199609

(J)

77316GASKET, FUEL TANK CAP

main77316-06010iAT19#,CT190,ST191..UKP199212-199710

77350LID ASSY, FUEL FILLER OPENING

main77350-20220iAT19#,CT190,ST191..UKP199212-199710

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12030iAT190,ST191..UKP199212-199402

main77366-35010iAT19#,CT190,ST191..UKP199402-199710

77391RING, FUEL INLET BOX

main77391-05010iAT19#,CT190,ST191..UKP199601-199710

main77391-20020iAT19#,CT190,ST191..UKP199212-199601

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-05010iAT19#,CT190,ST191..UKP199212-199710

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-05010iAT19#,CT190,ST191..UKP199212-199710

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-05010iAT19#,CT190,ST191..UKP199308-199710

main77631-20070iAT190,ST191..UKP199212-199308

sub77631-20090

77651ACUSHION, FUEL TANK, NO.1

main77651-32050iAT19#,CT190,ST191..UKP199212-199710

77652CUSHION, FUEL TANK, NO.1

main77651-20090iAT19#,CT190,ST191..UKP199212-199710

77681SEAT, FUEL TANK BAND, RH

main77681-32040iAT190,CT190,ST191..UKP199212-199412

sub77681-32060

main77681-32060iAT19#,CT190,ST191..UKP199412-199710

77682SEAT, FUEL TANK BAND, LH

main77681-32040iAT190,CT190,ST191..UKP199212-199412

sub77681-32060

main77681-32060iAT19#,CT190,ST191..UKP199412-199710

9011906347

main90119-06347

9011906354

main90119-06354

9011906398

main90119-06398

9011906442

main90119-06442

9011908511

main90119-08511

9011908A18

main90119-08A18

9011908A23

main90119-08A23

9011910502

main90119-10502

9012908001

main90129-08001

9015950217

main90159-50217

9015950219

main90159-50219

9015950237

main90159-50237

9015960293

main90159-60293

9015960415

main90159-60415

9017905020

main90179-05020

9017905094

main90179-05094

9017906219

main90179-06219

9017910112

main90179-10112

9018905097

main90189-05097

9018906157

main90189-06157

9026903067

main90269-03067

9046022002

main90460-22002

9046046003

main90460-46003

9046710088

main90467-10088

9098011078

main90980-11078

9165160614

main91651-60614

9542108058

main95421-08058

59 parts on this diagram · 7 diagrams in section
