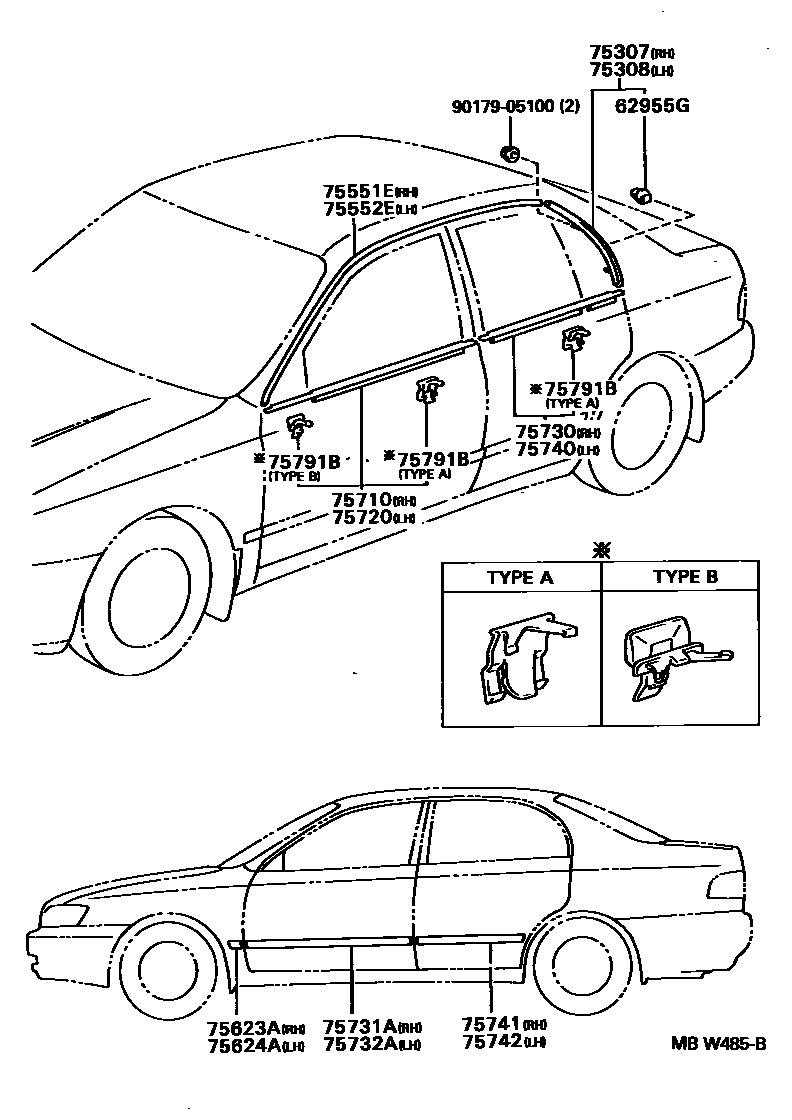

SIDE MOULDING

0001 1 0002 1 0003 1

62955GRETAINER, QUARTER VENT LOUVER

main62955-12040×2iAT19#,CT190,ST191..UKP..SED199212-199710

75307ORNAMENT SUB-ASSY, QUARTER PANEL, RH

main75307-05010iAT19#,CT190,ST191..UKP..SED199308-199710

main75307-20060iAT190,ST191..UKP199212-199312

75308ORNAMENT SUB-ASSY, QUARTER PANEL, LH

main75308-05010iAT19#,CT190,ST191..UKP..SED199308-199710

main75308-20080iAT190,ST191..UKP199212-199312

75551EMOULDING, ROOF DRIP SIDE FINISH, RH

main75551-05010iAT19#,CT190,ST191..UKP..SED199308-199710

main75551-05020iAT19#,CT190,ST191..UKP..LB199312-199710

main75551-20450iAT190,ST191..UKP199212-199312

main75551-21010iAT19#,CT190,ST191..UKP..WG199505-199710

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-05010iAT19#,CT190,ST191..UKP..SED199308-199710

main75552-05020iAT19#,CT190,ST191..UKP..LB199312-199710

main75552-20450iAT190,ST191..UKP199212-199312

main75552-21010iAT19#,CT190,ST191..UKP..WG199505-199710

75623AMOULDING, FRONT FENDER, OUTSIDE REAR RH

main75623-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75623-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75623-20350iAT19#,CT190,ST191..UKP199212-199601

BLACK

75624AMOULDING, FRONT FENDER, OUTSIDE REAR LH

main75624-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75624-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75624-20350iAT19#,CT190,ST191..UKP199212-199601

BLACK

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-05010iAT19#,CT190,ST191..UKP199308-199710

main75710-20370iAT190,ST191..UKP199212-199312

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-05010iAT19#,CT190,ST191..UKP199308-199710

main75720-20370iAT190,ST191..UKP199212-199312

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-05010iAT19#,CT190,ST191..UKP..(SED,WG)199308-199710

main75730-05020iAT19#,CT190,ST191..UKP..LB199312-199710

main75730-20180iAT190,ST191..UKP199212-199312

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75731-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75731-20570iAT19#,CT190,ST191..UKP199212-199601

BLACK

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75732-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75732-20570iAT19#,CT190,ST191..UKP199212-199601

BLACK

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-05010iAT19#,CT190,ST191..UKP..(SED,WG)199308-199710

main75740-05020iAT19#,CT190,ST191..UKP..LB199312-199710

main75740-20250iAT190,ST191..UKP199212-199312

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75741-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75741-20620iAT19#,CT190,ST191..UKP199212-199601

BLACK

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-05010iAT19#,CT190,ST191..UKP199308-199710

BLACK

main75742-05020iAT19#,CT190,ST191..UKP199611-199710

LIGHT GRAY

main75742-20600iAT19#,CT190,ST191..UKP199212-199601

BLACK

75791BCLIP, BELT MOULDING SIDE

main75791-05010×20iAT19#,CT190,ST191..UKP199501-199710

TYPE A

main75791-05020×2iAT19#,CT190,ST191..UKP199501-199710

TYPE B

main75791-20060×20iAT19#,CT190,ST191..UKP199212-199501

TYPE A

main75791-20070×2iAT19#,CT190,ST191..UKP199212-199501

TYPE B

9017905100

main90179-05100

17 parts on this diagram · 3 diagrams in section
