BACK DOOR LOCK & HANDLE

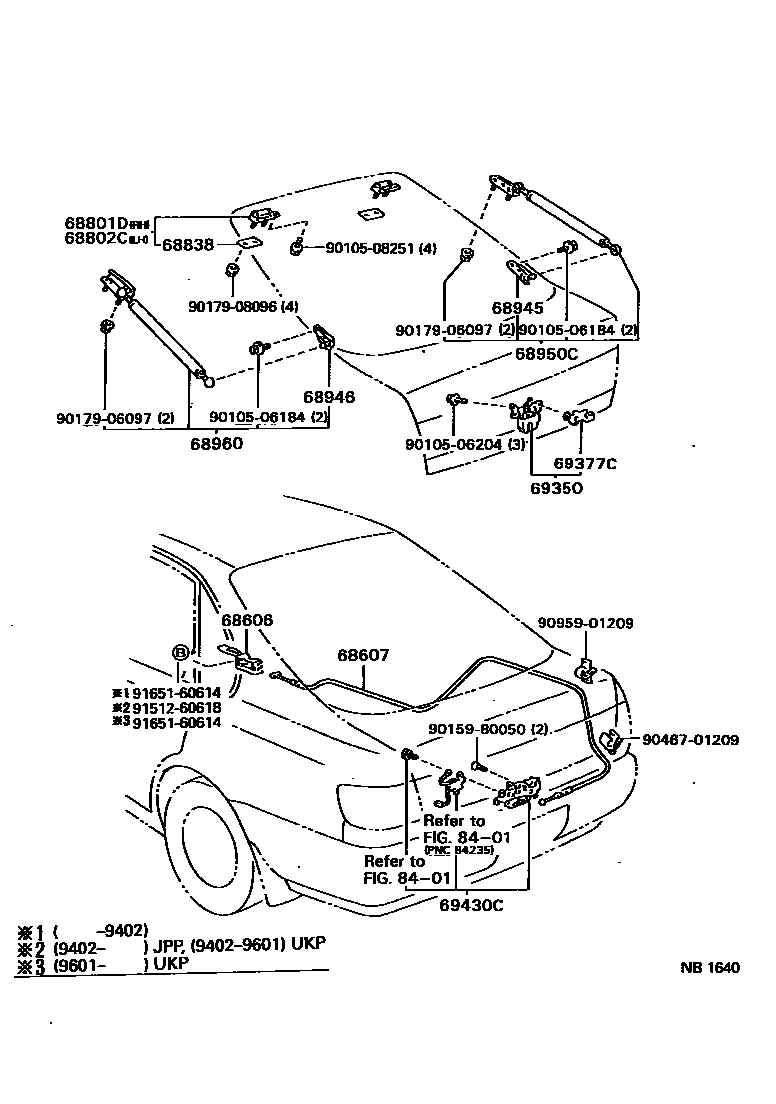

Parts diagram
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
main64606-20080i199312-199508
main64606-20081i199508-199710
main64606-20090i199312-199508
main64606-20091i199508-199710
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
main64607-05020i199312-199710
main64607-05030i199312-199710
68801DHINGE SUB-ASSY, BACK DOOR, RH
main68801-05010i199312-199710
68802CHINGE SUB-ASSY, BACK DOOR, LH
main68801-05010i199312-199710
68838PAD, BACK DOOR HINGE, NO.1
main68838-05010×2i199312-199710
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-20040i199312-199710
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-20010i199312-199710
68950CSTAY ASSY, BACK DOOR, RH
main68950-09050i199312-199710
main68950-09060i199312-199510
W(REAR SPOILER)
main68950-09070i199505-199710
main68950-80019i199312-199601
main68950-80020i199312-199601
W(REAR SPOILER)
68960STAY ASSY, BACK DOOR, LH
main68960-09020i199312-199710
main68960-09030i199312-199510
W(REAR SPOILER)
main68960-09040i199505-199710
main68960-29845i199312-199601
main68960-29855i199410-199601
W(REAR SPOILER)
69350LOCK ASSY, BACK DOOR
main69350-20070i199312-199710
main69350-21030i199505-199601
main69350-21040i199505-199601
W(POWER WINDOW) OR W(*EL) OR W(ELECTRIC TRUNK & BACK DOOR & FUEL LID OPENER)
69377CSNAP, DOOR LOCK CONTROL ROD
main69759-20040i199312-199710
69430CSTRIKER ASSY, BACK DOOR LOCK
main69430-13010i199505-199710
main69430-20130i199312-199601
main69430-20140i199601-199710
8401
9010506184
main90105-06184
9010506204
main90105-06204
9010508251
main90105-08251
9015980050
main90159-80050
9017906097
main90179-06097
9017908096
main90179-08096
9046701209
main90467-01209
9095901209
main90959-01209
9151260618
main91512-60618
9165160614
main91651-60614

23 parts on this diagram · 2 diagrams in section
