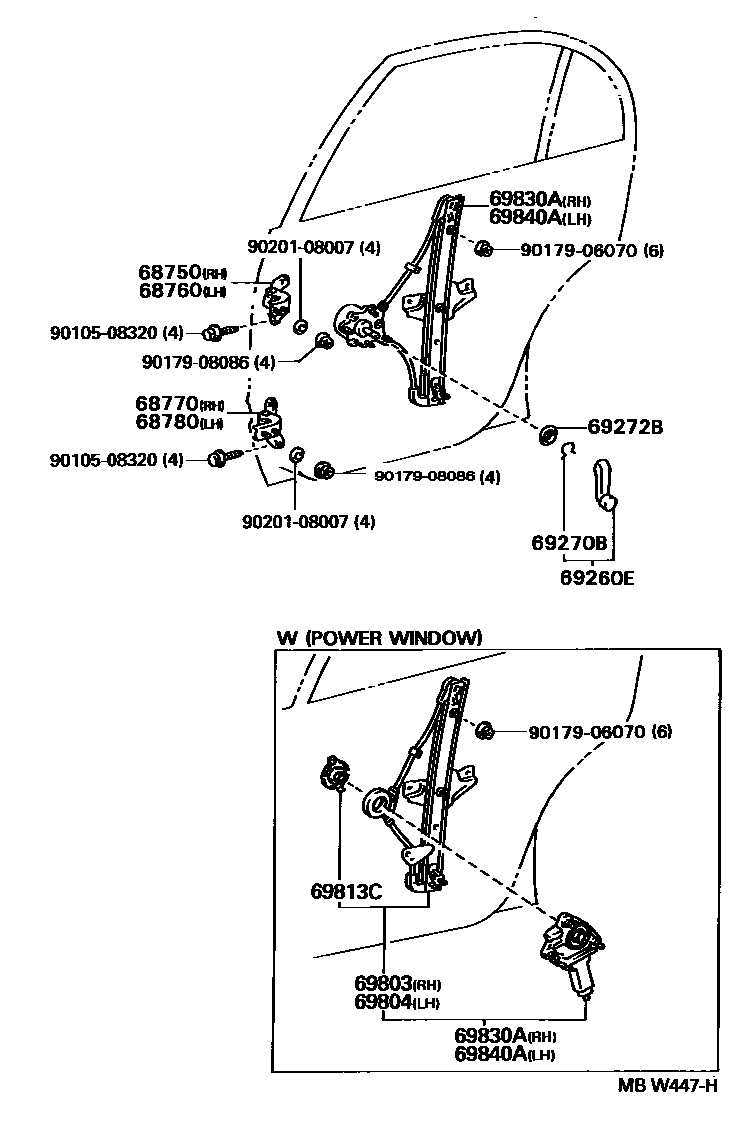

REAR DOOR WINDOW REGULATOR & HINGE
68750HINGE ASSY, REAR DOOR, UPPER RH
(L)
(J)
68760HINGE ASSY, REAR DOOR, UPPER LH
(L)
(J)
68770HINGE ASSY, REAR DOOR, LOWER RH
(L)
(J)
68780HINGE ASSY, REAR DOOR, LOWER LH
(L)
(J)
69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR
SHADOW GRAY,TRIM1#,(L)
SHADOW GRAY,TRIM1#
BLACK,TRIM2#,(L)
DARK BLUE,TRIM8#,(L)
DARK BLUE,TRIM8#
main69260-20090-B1iST191..UKP..(LB,SED);AT190..UKP..RHD..(LB,SED);AT190..UKP..LHD..(LB,SED)..XL199405-199601
SHADOW GRAY,TRIM1#,(J)
sub69260-20090
main69260-20090-J0iST191..UKP..(LB,SED);AT190..UKP..RHD..(LB,SED);AT190..UKP..LHD..(LB,SED)..XL199308-199601
DARK BLUE,TRIM8#,(J)
sub69260-20090
69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE
NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,6M7 ,742 ,8G2 ,8H6
sub69285-22010
NATURAL WHITE,040 ,183 ,205 ,3J6 ,3K1 ,4M3 ,6M7 ,742 ,8G2 ,8H6
sub69285-22010
NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,6M7 ,742 ,8G2 ,8H6 ,927
sub69285-22010
NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,742 ,8G2 ,8H6 ,927
sub69285-22010
NATURAL WHITE,040 ,1A0 ,1A2 ,183 ,205 ,3J6 ,3L3 ,742 ,8G2 ,8H6 ,927
sub69285-22010
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE
69830AREGULATOR ASSY, REAR DOOR WINDOW, RH
(L)
W(POWER WINDOW),(L)
W(POWER WINDOW)
(L)
W(POWER WINDOW)
(J)
(J)
69840AREGULATOR ASSY, REAR DOOR WINDOW, LH
(L)
W(POWER WINDOW)
W(POWER WINDOW),(L)
(L)
W(POWER WINDOW)
(J)
(J)
9010508320
main90105-08320
9017906070
main90179-06070
9017908086
main90179-08086
9020108007
main90201-08007
16 parts on this diagram · 1 diagram in section
