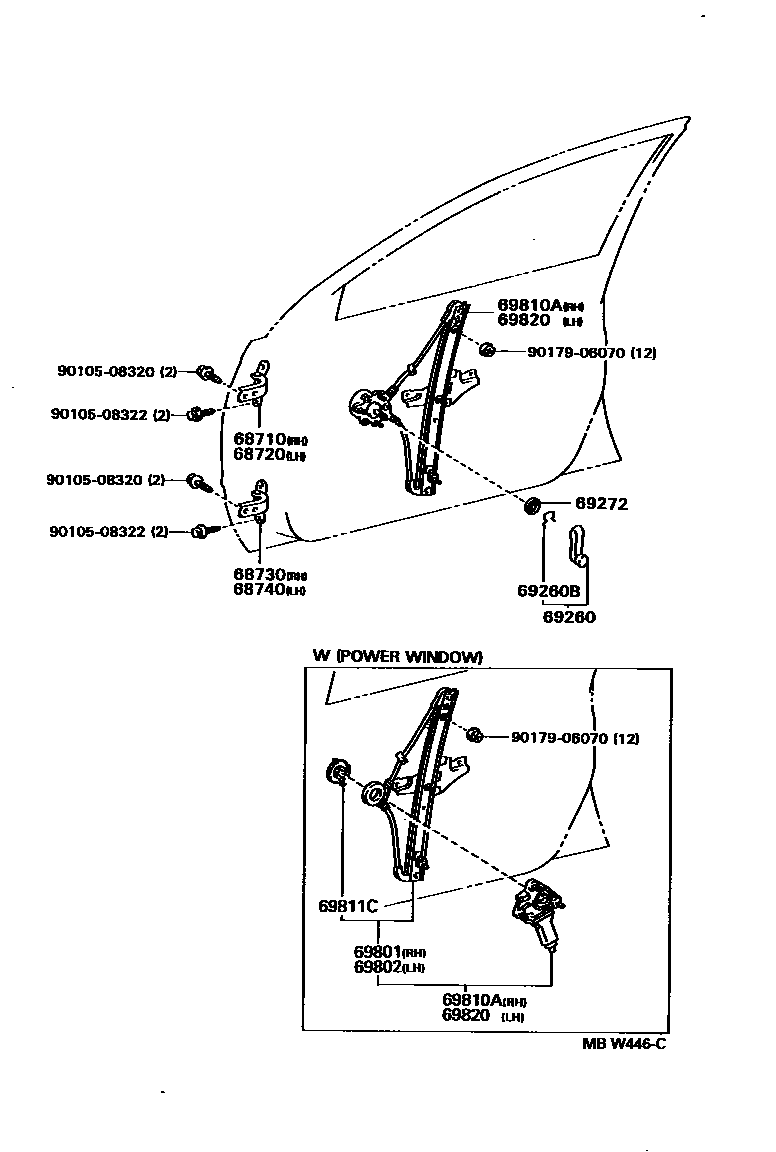

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-05010iAT19#,CT190,ST191..UKP199308-199710

sub68710-12150

main68710-12130iAT190,ST191..UKP199212-199312

sub68710-12150

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-05010iAT19#,CT190,ST191..UKP199308-199710

sub68720-12150

main68720-12130iAT190,ST191..UKP199212-199312

sub68720-12150

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-05010iAT19#,CT190,ST191..UKP199308-199710

sub68730-12110

main68730-12090iAT190,ST191..UKP199212-199312

sub68730-12110

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-05010iAT19#,CT190,ST191..UKP199308-199710

sub68740-12110

main68740-12090iAT190,ST191..UKP199212-199312

sub68740-12110

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-05010-B0iAT19#..UKP..RHD;CT190,ST191..UKP;AT190..UKP..LHD..XL199405-199710

SHADOW GRAY,TRIM1#

main69260-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main69260-05010-J0iAT190,ST191..UKP199308-199710

DARK BLUE,TRIM8#

main69260-20090-B1iST191..UKP..(LB,SED);AT190..UKP..RHD..(LB,SED);AT190..UKP..LHD..(LB,SED)..XL199405-199601

SHADOW GRAY,TRIM1#

sub69260-20090

main69260-20090-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#

sub69260-20090

main69260-20090-C0iAT190..UKP..(LB,SED)..XL199405-199601

BLACK

sub69260-20090

main69260-20090-J0iST191..UKP..(LB,SED);AT190..UKP..RHD..(LB,SED);AT190..UKP..LHD..(LB,SED)..XL199308-199601

DARK BLUE,TRIM8#

sub69260-20090

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAT190,ST191..UKP199212-199312

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCT190..UKP199405-199501

NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,6M7 ,742 ,8G2 ,8H6

sub69285-22010

main69285-22010-08iAT190,ST191..UKP199212-199405

NATURAL WHITE,040 ,183 ,205 ,3J6 ,3K1 ,4M3 ,6M7 ,742 ,8G2 ,8H6

sub69285-22010

main69285-22010-08iCT190..UKP199405-199506

NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,6M7 ,742 ,8G2 ,8H6 ,927

sub69285-22010

main69285-22010-08iAT19#,CT190,ST191..UKP..WG199506-199601

NATURAL WHITE,040 ,1A2 ,183 ,205 ,3J6 ,3L3 ,742 ,8G2 ,8H6 ,927

sub69285-22010

main69285-22010-08iAT19#,CT190,ST191..UKP..WG199506-199601

NATURAL WHITE,040 ,1A0 ,1A2 ,183 ,205 ,3J6 ,3L3 ,742 ,8G2 ,8H6 ,927

sub69285-22010

main69285-22010-08iAT19#,CT190..UKP..XL199601-199710

NATURAL WHITE,TRIM1#,8#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20210iAT190,ST191..UKP199212-199308

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20230iAT190,ST191..UKP199212-199308

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-05010iAT19#,CT190..UKP..XL199308-199710

main69810-05020iST191..UKP..LHD..SED;AT19#..UKP..RHD..SED..GL199308-199710

W(POWER WINDOW)

main69810-05020iST191..UKP..RHD..LB199312-199601

main69810-20270iAT190,ST191..UKP199212-199312

main69810-20280iAT190..UKP..GL;ST191..UKP..LHD199212-199312

W(POWER WINDOW)

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69813-32010iAT19#,CT190,ST191..UKP199212-199601

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-05010iAT190,ST191..UKP199308-199710

main69820-05020iST191..UKP..RHD..SED199308-199710

W(POWER WINDOW)

main69820-05020iST191..UKP..RHD..LB199312-199601

main69820-20290iAT190,ST191..UKP199212-199312

main69820-20300iST191..UKP..RHD199212-199312

W(POWER WINDOW)

9010508320

main90105-08320

9010508322

main90105-08322

9017906070

main90179-06070

15 parts on this diagram · 1 diagram in section
