FRONT DOOR PANEL & GLASS

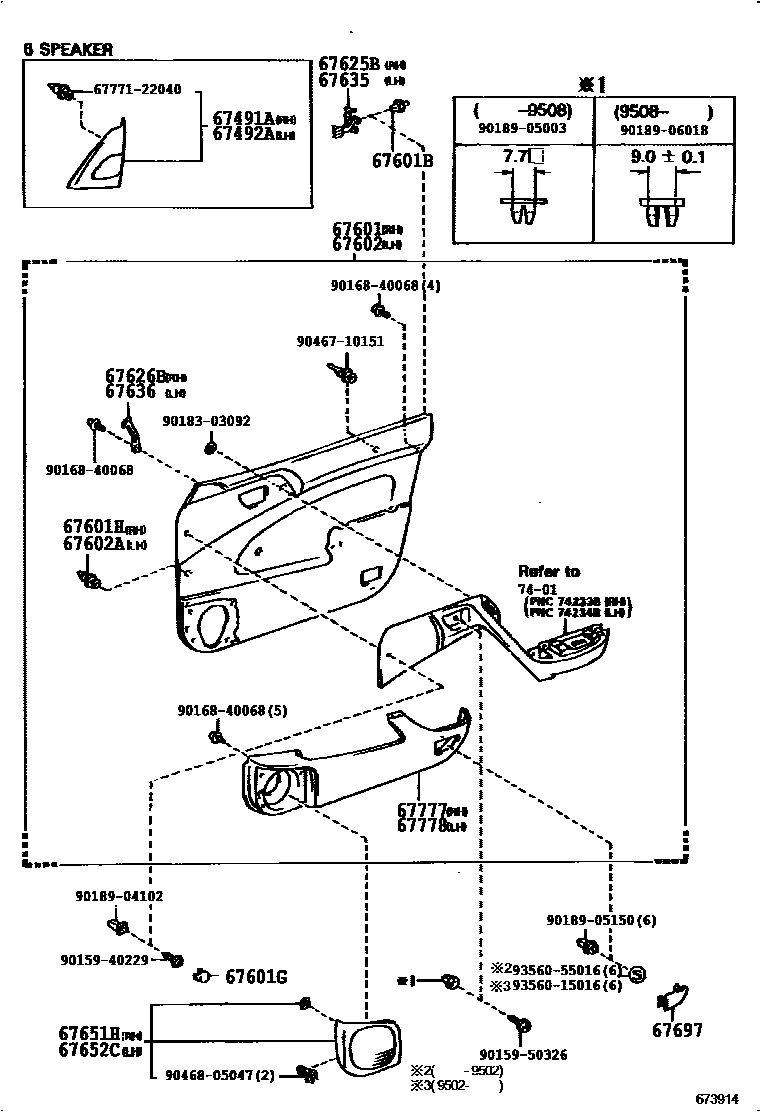

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-05010i199410-199501
XL LUXURY PACKAGE-*99
main67491-05010i199501-199710
W(REMOTE CONTROL MIRROR)
main67491-05010i199212-199710
main67491-05030i199212-199710
main67491-05030i199505-199601
XL PACKAGE-*99
main67491-20270-C0i199212-199405
W(SPEAKER),BLACK,TRIM2#,8#
main67491-20270-C0i199405-199710
W(SPEAKER),BLACK,TRIM1#,8#
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-05010i199501-199710
W(REMOTE CONTROL MIRROR)
main67492-05010i199410-199501
XL LUXURY PACKAGE-*99
main67492-05010i199212-199710
main67492-05030i199212-199710
main67492-05030i199505-199601
XL PACKAGE-*99
main67492-20290-C0i199212-199405
W(SPEAKER),BLACK,TRIM2#,8#
main67492-20290-C0i199405-199710
W(SPEAKER),BLACK,TRIM1#,8#
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-05010-C1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),BLACK,TRIM2#
main67610-05010-C1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
main67610-05010-J1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),DK. BLUE,TRIM8#
main67610-05010-J1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05020-C1i199401-199405
DOOR TRIM=TYPE B-*104;W(GL FABRIC),BLACK,TRIM2#
main67610-05020-C1i199212-199405
DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
main67610-05020-J1i199401-199405
DOOR TRIM=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main67610-05020-J1i199212-199405
DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05030-C1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),BLACK,TRIM2#
main67610-05030-J1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05040-C1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),BLACK,TRIM2#
main67610-05040-J1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05050-C1i199212-199405
DOOR TRIM=TYPE A-*104,BLACK,TRIM2#
main67610-05050-J1i199212-199405
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67610-05060-B0i199405-199601
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67610-05060-C2i199212-199405
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67610-05070-C1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
main67610-05070-C1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),BLACK,TRIM2#
main67610-05070-J1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),DK. BLUE,TRIM8#
main67610-05070-J1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05080-B0i199405-199601
W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67610-05080-C2i199212-199405
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67610-05110-B0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05110-B0i199405-199601
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05110-J0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05110-J0i199405-199601
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05120-B0i199410-199601
XL LUXURY PACKAGE;DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05120-B0i199405-199601
DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05120-B0i199506-199601
DOOR TRIM=TYPE B-*104;W(GL FABRIC),SHADOW GRAY,TRIM1#
main67610-05120-J0i199410-199601
XL LUXURY PACKAGE;DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05120-J0i199405-199601
DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05120-J0i199506-199601
DOOR TRIM=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main67610-05130-B0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05130-B0i199405-199601
DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05130-B0i199407-199601
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),SHADOW GRAY,TRIM1#
main67610-05130-J0i199405-199601
DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05130-J0i199407-199601
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),DK. BLUE,TRIM8#
main67610-05130-J0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05140-B0i199505-199601
DOOR TRIM=TYPE A-*104;XL PACKAGE,SHADOW GRAY,TRIM1#
main67610-05140-B0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05140-J0i199505-199601
DOOR TRIM=TYPE A-*104;XL PACKAGE,DK. BLUE,TRIM8#
main67610-05140-J0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05150-B0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05150-J0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05160-B0i199405-199601
DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#
main67610-05160-J0i199405-199601
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67610-05170-B1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05170-J1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05180-B1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67610-05180-J1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67610-05190-B1i199601-199710
DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#
main67610-05190-J1i199601-199710
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67610-05210-B1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05210-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05220-B1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05220-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67610-05230-B0i199705-199710
DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67610-05230-B0i199611-199705
DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67610-05240-B0i199705-199710
DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67610-05240-B0i199611-199705
DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67610-05250-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05260-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67610-05270-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1#
main67610-05280-B0i199605-199710
W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67610-05320-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1#
main67610-05320-B0i199705-199710
DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67610-05330-B0i199705-199710
DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07071-22i199212-199405
BLACK,TRIM2#,8#
sub90467-07071
main90467-07071-22i199405-199710
BLACK,TRIM1#,8#
sub90467-07071
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01503-C0i199212-199405
BLACK,TRIM2#
sub90950-01503
main90950-01503-J0i199212-199601
DARK BLUE,TRIM8#
sub90950-01503
main90950-01503-P0i199405-199601
SHADOW GRAY,TRIM1#
sub90950-01503
67601HRETAINER, DOOR TRIM, RH
main67771-20110i199212-199601
main67771-20110i199601-199710
MOSS GREEN
main67771-28030i199601-199710
YELLOW
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-05010-C1i199401-199405
W(POWER WINDOW & GL FABRIC);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67620-05010-C1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67620-05010-J1i199401-199405
W(POWER WINDOW & GL FABRIC);DOOR TRIM=TYPE C-*104,DK. BLUE,TRIM8#
main67620-05010-J1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE C-*104,DK. BLUE,TRIM8#
main67620-05020-C1i199401-199405
DOOR TRIM=TYPE C-*104;W(GL FABRIC),BLACK,TRIM2#
main67620-05020-C1i199212-199405
DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67620-05020-J1i199212-199405
DOOR TRIM=TYPE C-*104,DK. BLUE,TRIM8#
main67620-05020-J1i199401-199405
DOOR TRIM=TYPE C-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main67620-05030-C1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),BLACK,TRIM2#
main67620-05030-J1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05040-C1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),BLACK,TRIM2#
main67620-05040-J1i199212-199405
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05050-C1i199212-199405
DOOR TRIM=TYPE A-*104,BLACK,TRIM2#
main67620-05050-J1i199212-199405
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67620-05060-B0i199405-199601
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67620-05060-C2i199212-199405
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67620-05070-C1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),BLACK,TRIM2#
main67620-05070-C1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,BLACK,TRIM2#
main67620-05070-J1i199401-199405
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),DK. BLUE,TRIM8#
main67620-05070-J1i199212-199405
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67620-05080-B0i199405-199601
W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67620-05080-C2i199212-199405
W(POWER WINDOW & SPORTS SEAT);DOOR TRIM=TYPE C-*104,BLACK,TRIM2#
main67620-05110-B0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05110-B0i199405-199601
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05110-J0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05110-J0i199405-199601
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67620-05120-B0i199410-199601
XL LUXURY PACKAGE;DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05120-B0i199506-199601
DOOR TRIM=TYPE B-*104;W(GL FABRIC),SHADOW GRAY,TRIM1#
main67620-05120-B0i199405-199601
DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05120-J0i199506-199601
DOOR TRIM=TYPE B-*104;W(GL FABRIC),DK. BLUE,TRIM8#
main67620-05120-J0i199410-199601
XL LUXURY PACKAGE;DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67620-05120-J0i199405-199601
DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67620-05130-B0i199405-199601
DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05130-B0i199407-199601
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),SHADOW GRAY,TRIM1#
main67620-05130-B0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05130-J0i199410-199601
DOOR TRIM=TYPE B-*104;XL LUXURY PACKAGE & W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05130-J0i199405-199601
DOOR TRIM=TYPE B-*104,DK. BLUE,TRIM8#
main67620-05130-J0i199407-199601
DOOR TRIM=TYPE B-*104;W(POWER WINDOW & GL FABRIC),DK. BLUE,TRIM8#
main67620-05140-B0i199505-199601
DOOR TRIM=TYPE A-*104;XL PACKAGE,SHADOW GRAY,TRIM1#
main67620-05140-B0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05140-J0i199505-199601
DOOR TRIM=TYPE A-*104;XL PACKAGE,DK. BLUE,TRIM8#
main67620-05140-J0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05150-B0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05150-J0i199405-199601
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05160-B0i199405-199601
DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#
main67620-05160-J0i199405-199601
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67620-05170-B1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05170-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05180-B1i199601-199710
W(POWER WINDOW);DOOR TRIM=TYPE B-*104,SHADOW GRAY,TRIM1#
main67620-05180-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05190-B1i199601-199710
DOOR TRIM=TYPE A-*104,SHADOW GRAY,TRIM1#
main67620-05190-J1i199601-199710
DOOR TRIM=TYPE A-*104,DK. BLUE,TRIM8#
main67620-05210-B1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05210-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05220-B1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05220-J1i199601-199710
DOOR TRIM=TYPE A-*104;W(POWER WINDOW),DK. BLUE,TRIM8#
main67620-05230-B0i199705-199710
DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67620-05230-B0i199611-199705
DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67620-05240-B0i199705-199710
DOOR TRIM=TYPE D-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67620-05240-B0i199611-199705
DOOR TRIM=TYPE D-*104;'97 SPRING CAMPAIGN 0R '97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67620-05250-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05260-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC & W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67620-05270-B0i199501-199601
DOOR TRIM=TYPE D-*104;EX FABRIC,SHADOW GRAY,TRIM1#
main67620-05280-B0i199605-199710
W(SPORTS SEAT);DOOR TRIM=TYPE C-*104,SHADOW GRAY,TRIM1#
main67620-05320-B0i199705-199710
'97 AUTUMN CAMPAIGN FABRIC & W(POWER WINDOW);DOOR TRIM=TYPE E-*104,SHADOW GRAY,TRIM1#
main67620-05320-B0i199705-199710
DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
main67620-05330-B0i199705-199710
DOOR TRIM=TYPE E-*104;'97 AUTUMN CAMPAIGN FABRIC,SHADOW GRAY,TRIM1#
67602ARETAINER, DOOR TRIM, LH
main67771-20110i199601-199710
MOSS GREEN
main67771-20110i199212-199601
main67771-28030i199601-199710
YELLOW
67625BBRACKET, DOOR TRIM, NO.1 RH
main67625-20100i199212-199710
67626BBRACKET, DOOR TRIM, NO.2 RH
main67626-05010i199507-199601
main67626-20070i199212-199507
67635BRACKET, DOOR TRIM, NO.1 LH
main67635-20040i199212-199710
67636BRACKET, DOOR TRIM, NO.2 LH
main67636-05010i199507-199601
main67636-20020i199212-199507
67651HGRILLE, SPEAKER DOOR, RH
main67651-05010-B0i199405-199411
SHADOW GRAY,TRIM1#
sub67651-05011
main67651-05010-C0i199308-199405
BLACK,TRIM2#
sub67651-05011
main67651-05010-J0i199308-199411
DK. BLUE,TRIM8#
sub67651-05011
main67651-05011-B0i199411-199710
SHADOW GRAY,TRIM1#
main67651-05011-J0i199411-199710
DK.BLUE,TRIM8#
main67651-20060-C1i199212-199306
BLACK,TRIM2#
sub67651-21010
main67651-20060-J1i199212-199306
DK.BLUE,TRIM8#
sub67651-21010
main67651-21010-C0i199306-199308
BLACK,TRIM2#
sub67651-21010
main67651-21010-J0i199306-199308
DK. BLUE,TRIM8#
sub67651-21010
67652CGRILLE, SPEAKER DOOR, LH
main67652-05010-B0i199405-199411
SHADOW GRAY,TRIM1#
sub67652-05011
sub67652-20050
main67652-05010-C0i199308-199405
BLACK,TRIM2#
sub67652-05011
sub67652-20050
main67652-05010-J0i199308-199411
DK. BLUE,TRIM8#
sub67652-05011
sub67652-20050
main67652-05011-B0i199411-199710
SHADOW GRAY,TRIM1#
main67652-05011-J0i199411-199710
DK.BLUE,TRIM8#
main67652-20050-C1i199212-199306
BLACK,TRIM2#
sub67652-21020
main67652-20050-J1i199212-199306
DK.BLUE,TRIM8#
sub67652-21020
main67652-21020-C0i199306-199308
BLACK,TRIM2#
sub67652-21020
main67652-21020-J0i199306-199308
DK. BLUE,TRIM8#
sub67652-21020
67697COVER, FRONT DOOR TRIM POCKET
main67697-05010-B0i199405-199601
SHADOW GRAY,TRIM1#,RH
main67697-05010-C0i199308-199405
BLACK,TRIM2#,RH
main67697-05010-J0i199308-199601
DK. BLUE,TRIM8#,RH
main67697-20080-C0i199212-199308
BLACK,TRIM2#,RH
sub67697-20080
main67697-20080-J0i199212-199308
DK.BLUE,TRIM8#,RH
sub67697-20080
main67698-05010-B0i199405-199601
SHADOW GRAY,TRIM1#,LH
main67698-05010-C0i199308-199405
BLACK,TRIM2#,LH
main67698-05010-J0i199308-199601
DK. BLUE,TRIM8#,LH
main67698-20040-C0i199212-199308
BLACK,TRIM2#,LH
sub67698-20040
main67698-20040-J0i199212-199308
DK.BLUE,TRIM8#,LH
sub67698-20040
67777POCKET, FRONT DOOR TRIM, RH
main67777-05010-B0i199405-199601
SHADOW GRAY,TRIM1#
main67777-05010-C0i199405-199601
W(SPEAKER),BLACK
main67777-05010-C0i199308-199405
BLACK,TRIM2#
main67777-05010-J0i199308-199601
DK. BLUE,TRIM8#
main67777-05020-B0i199601-199710
SHADOW GRAY,TRIM1#
main67777-05020-J0i199601-199710
DK.BLUE,TRIM8#
main67777-20190-C0i199212-199308
BLACK,TRIM2#
main67777-20190-J0i199212-199308
DK.BLUE,TRIM8#
67778POCKET, FRONT DOOR TRIM, LH
main67778-05010-B0i199405-199601
SHADOW GRAY,TRIM1#
main67778-05010-C0i199308-199405
BLACK,TRIM2#
main67778-05010-J0i199308-199601
DK. BLUE,TRIM8#
main67778-05020-B0i199601-199710
SHADOW GRAY,TRIM1#
main67778-05020-J0i199601-199710
DK.BLUE,TRIM8#
main67778-20120-C0i199212-199308
BLACK,TRIM2#
main67778-20120-J0i199212-199308
DK.BLUE,TRIM8#
7401
6777122040WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22040
9015940229
main90159-40229
9015950326
main90159-50326
9016840068
main90168-40068
9018303092
main90183-03092
9018904102
main90189-04102
9018905003
main90189-05003
9018905150
main90189-05150
9018906018
main90189-06018
9046710151
main90467-10151
9046805047
main90468-05047
9356015016
main93560-15016
9356055016
main93560-55016

31 parts on this diagram · 6 diagrams in section

FRONT DOOR PANEL & GLASS — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
