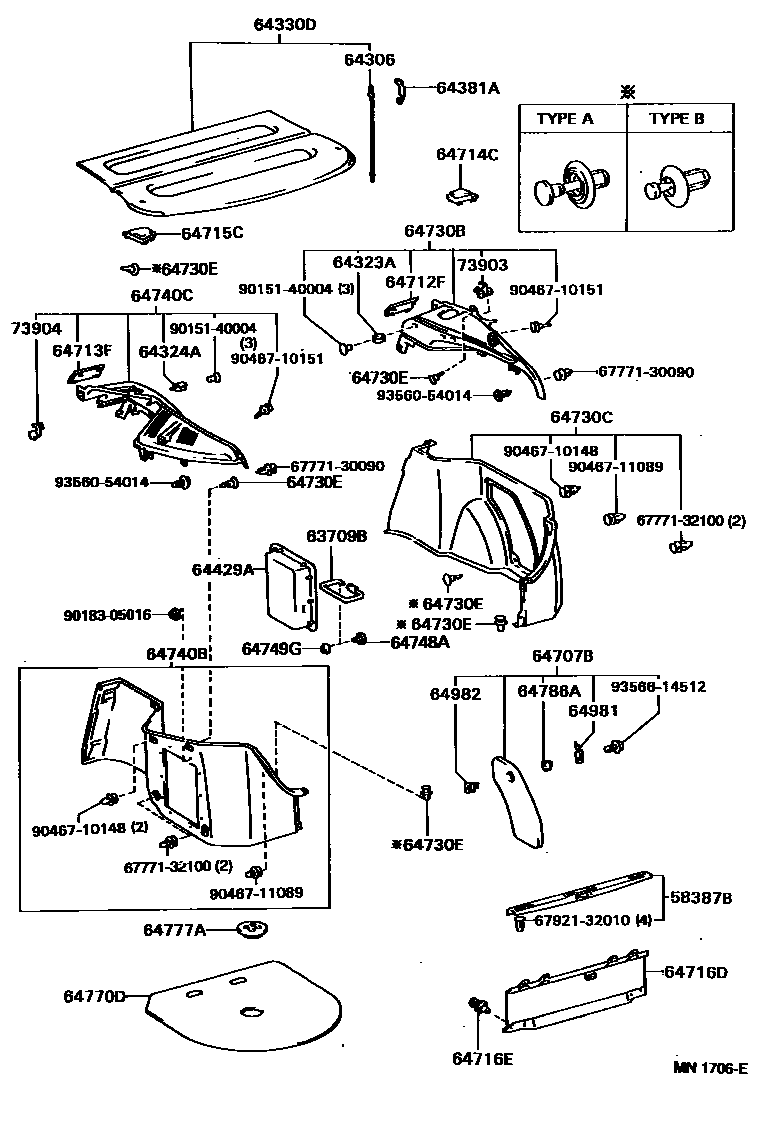

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58387BPLATE, REAR FLOOR FINISH

main58387-05020-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

main58387-05020-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main58387-05020-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

main58387-05030-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main58387-05030-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK.BLUE,TRIM8#

63709BBAND SUB-ASSY, ROOM RACK

main63709-05010-C1iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#

main63709-05010-C1iAT19#,CT190,ST191..UKP..(LB,WG)199405-199710

BLACK,TRIM1#,8#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-05010iAT19#,CT190,ST191..UKP..LB199312-199710

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-05010iAT19#,CT190,ST191..UKP..LB199312-199710

main64323-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64323-21010-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64323-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64323-21010-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

main64324-05010iAT19#,CT190,ST191..UKP..LB199312-199710

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-05020-B0iAT19#,CT190,ST191..UKP..LB..GL199601-199710

W(REAR SPOILER),SHADOW GRAY,TRIM1#

main64330-05020-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

main64330-05020-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64330-05020-J1iAT19#,CT190,ST191..UKP..LB..GL199601-199710

W(REAR SPOILER),DK. BLUE,TRIM8#

main64330-05020-J1iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

main64330-05050-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64330-05050-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK. BLUE,TRIM8#

main64330-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

sub64330-21010

main64330-21010-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

sub64330-21010

64381AHANGER, PACKAGE TRAY TRIM

main64381-20040iAT19#,CT190,ST191..UKP..LB199312-199710

64429ABOX, LUGGAGE COMPARTMENT TRIM

main64429-05010-B0iAT19#,CT190,ST191..UKP..(LB,WG)199405-199710

SHADOW GRAY,TRIM1#

main64429-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64429-05010-J0iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

DK. BLUE,TRIM8#

64707BCOVER SUB-ASSY, QUARTER TRIM JACK

main64707-05010-B0iAT19#,CT190,ST191..UKP..(LB,WG)199405-199601

SHADOW GRAY,TRIM1#

main64707-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64707-05010-J0iAT19#,CT190,ST191..UKP..(LB,WG)199312-199601

DK. BLUE,TRIM8#

main64707-05030-B0iAT19#,CT190,ST191..UKP..(LB,WG)199601-199710

SHADOW GRAY,TRIM1#

main64707-05030-J0iAT19#,CT190,ST191..UKP..(LB,WG)199601-199710

DK. BLUE,TRIM8#

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

SHADOW GRAY,TRIM1#

main64712-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64712-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199710

DK. BLUE,TRIM8#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

SHADOW GRAY,TRIM1#

main64713-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64713-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199710

DK. BLUE,TRIM8#

64714CCOVER, DECK SIDE TRIM, RH

main64714-05010-B0iCT190..UKP..LB;AT190..UKP..LHD..LB..XL199407-199710

SHADOW GRAY,TRIM1#

main64714-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64714-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199710

DK. BLUE,TRIM8#

main64714-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64714-21010-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

64715CCOVER, DECK SIDE TRIM, LH

main64715-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

SHADOW GRAY,TRIM1#

main64715-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64715-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199710

DK. BLUE,TRIM8#

main64715-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64715-21010-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

64716DCOVER, DECK TRIM, REAR

main64716-05020-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

main64716-05020-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64716-05020-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

main64716-05030-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64716-05030-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK. BLUE,TRIM8#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-06150-C0iAT19#,CT190,ST191..UKP..LB199405-199710

BLACK,TRIM1#,8#

main90467-06150-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

main64730-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64730-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

main64730-05020-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64730-05020-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK.BLUE,TRIM8#

main64731-21040-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64731-21040-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

64730CBOARD, DECK TRIM SIDE, RH

main64731-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

sub64731-05030

main64731-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

sub64731-05030

main64731-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

sub64731-05030

main64731-05020-B0iAT19#,CT190,ST191..UKP..WG199505-199601

SHADOW GRAY,TRIM1#

sub64731-05040

main64731-05020-J0iAT19#,CT190,ST191..UKP..WG199505-199601

DK.BLUE,TRIM8#

sub64731-05040

main64731-05030-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64731-05030-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK. BLUE,TRIM8#

main64731-05040-B0iAT19#,CT190,ST191..UKP..WG199601-199710

SHADOW GRAY,TRIM1#

main64731-05040-J0iAT19#,CT190,ST191..UKP..WG199601-199710

DK. BLUE,TRIM8#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-06150-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#,TYPE A

main90467-06150-C0iAT19#,CT190,ST191..UKP..LB199405-199710

BLACK,TRIM1#,8#,TYPE A

main90467-07041-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#,TYPE B

sub90467-07041

main90467-07041-C0iAT19#,CT190,ST191..UKP..LB199405-199710

BLACK,TRIM1#,8#,TYPE B

sub90467-07041

main90467-07041-C0iAT19#,CT190,ST191..UKP..WG199505-199710

BLACK,TRIM1#,8#

sub90467-07041

main90467-07041-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DARK BLUE,TRIM8#,TYPE B

sub90467-07041

main90467-07041-P0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#,TYPE B

sub90467-07041

64740BBOARD, DECK TRIM SIDE, LH

main64732-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

sub64732-05030

main64732-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

sub64732-05030

main64732-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

sub64732-05030

main64732-05020-B0iAT19#,CT190,ST191..UKP..WG199505-199601

SHADOW GRAY,TRIM1#

sub64732-05040

main64732-05020-J0iAT19#,CT190,ST191..UKP..WG199505-199601

DK.BLUE,TRIM8#

sub64732-05040

main64732-05030-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64732-05030-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK. BLUE,TRIM8#

main64732-05040-B0iAT19#,CT190,ST191..UKP..WG199601-199710

SHADOW GRAY,TRIM1#

main64732-05040-J0iAT19#,CT190,ST191..UKP..WG199601-199710

DK. BLUE,TRIM8#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64732-21060-B0iAT19#,CT190,ST191..UKP..WG199505-199710

SHADOW GRAY,TRIM1#

main64732-21060-J0iAT19#,CT190,ST191..UKP..WG199505-199710

DK. BLUE,TRIM8#

main64740-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199601

SHADOW GRAY,TRIM1#

main64740-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64740-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199601

DK. BLUE,TRIM8#

main64740-05020-B0iAT19#,CT190,ST191..UKP..LB199601-199710

SHADOW GRAY,TRIM1#

main64740-05020-J0iAT19#,CT190,ST191..UKP..LB199601-199710

DK.BLUE,TRIM8#

64748AHOOK, SIDE TRIM TOOL COVER, NO.1

main64748-05010iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

64749GHOOK, SIDE TRIM TOOL COVER, NO.2

main64749-05010iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

64770DCOVER ASSY, SPARE WHEEL

main64770-05010iAT19#,CT190,ST191..UKP..(LB,WG)199312-199601

sub64770-20190

64777ACLAMP, SPARE WHEEL COVER

64786APLATE, JACK COVER

main64786-05010iAT19#,CT190,ST191..UKP..(LB,WG)199312-199710

64981STOPPER, WASHER TANK COVER

main64981-05010iAT19#,CT190,ST191..UKP..LB199312-199710

64982KNOB, COVER

main64982-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

SHADOW GRAY,TRIM1#

main64982-05010-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#

main64982-05010-J0iAT19#,CT190,ST191..UKP..LB199312-199710

DK. BLUE,TRIM8#

73903BRACKET SUB-ASSY, REAR SHELF, RH

main73903-05010iAT19#,CT190,ST191..UKP..LB199312-199601

73904BRACKET SUB-ASSY, REAR SHELF, LH

main73904-05010iAT19#,CT190,ST191..UKP..LB199312-199601

6777130090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30090

6777132100WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32100

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9015140004

main90151-40004

9018305016

main90183-05016

9046710148

main90467-10148

9046710151

main90467-10151

9046711089

main90467-11089

9356054014

main93560-54014

9356614512

main93566-14512

39 parts on this diagram · 2 diagrams in section
