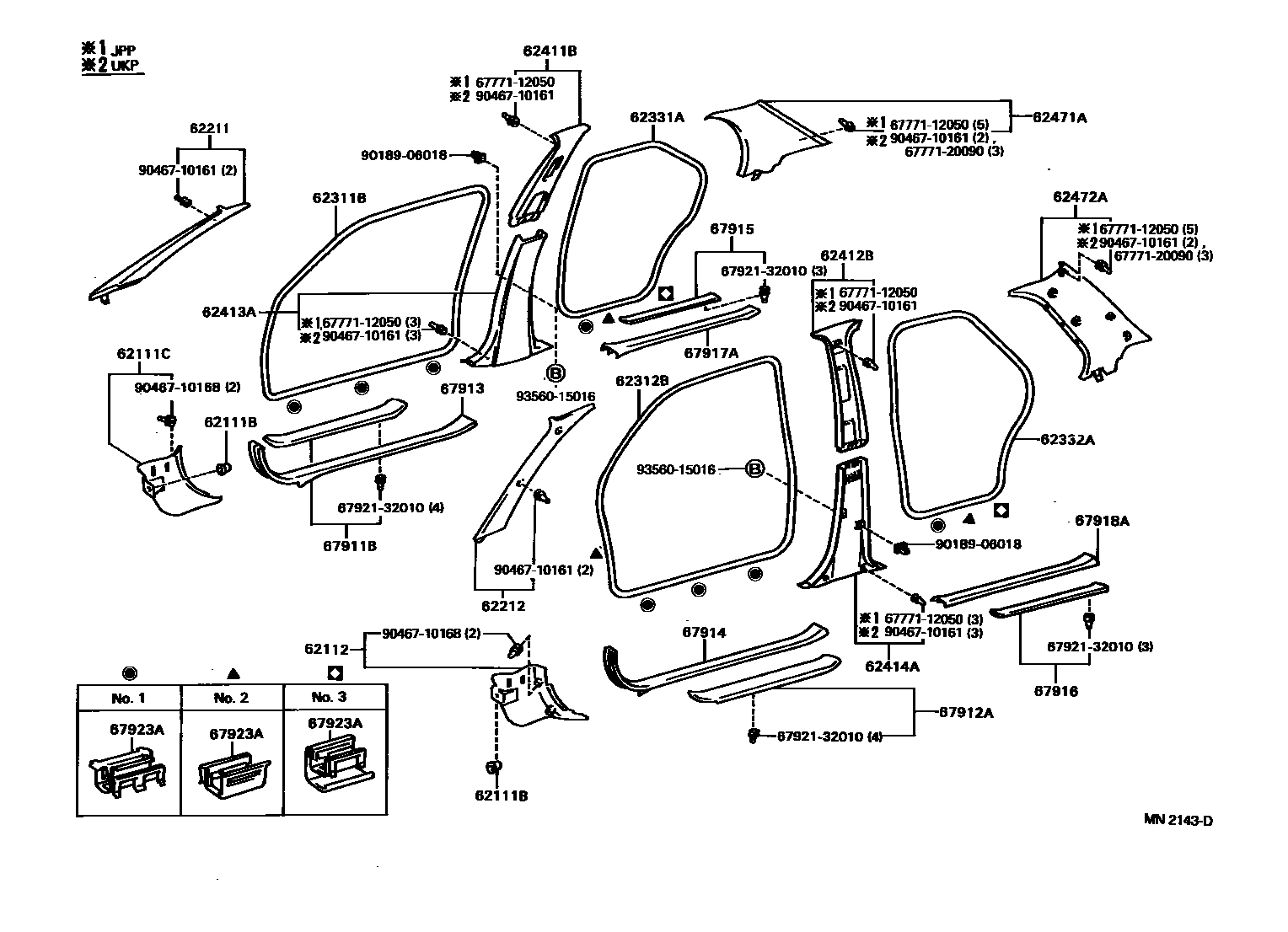

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06074iAT190,ST191..UKP199212-199306

main90467-06094iAT19#,CT190,ST191..UKP199306-199710

62111CBOARD, COWL SIDE TRIM, RH

main62111-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main62111-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main62111-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main62111-20260-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub62111-20260

main62111-20260-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub62111-20260

62112BOARD, COWL SIDE TRIM, LH

main62112-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main62112-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main62112-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main62112-20280-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub62112-20290

sub62112-20280

main62112-20280-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub62112-20290

sub62112-20280

62211GARNISH, FRONT PILLAR, RH

main62211-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main62211-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main62211-20230-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub62211-20230

62212GARNISH, FRONT PILLAR, LH

main62212-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main62212-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main62212-20230-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub62212-20230

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,8#

main62311-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main62311-20120-C0iAT190,ST191..UKP199212-199312

BLACK,TRIM2#,8#

sub62311-20100

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main62312-05010-C0iAT190,ST191..UKP199312-199405

BLACK,TRIM2#,8#

main62312-20120-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#,8#

sub62312-20100

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-05010-C0iAT190,ST191..UKP..SED199312-199405

BLACK,TRIM2#,8#

main62331-05010-C0iAT19#,CT190,ST191..UKP..SED199405-199710

BLACK,TRIM1#,8#

main62331-05020-C0iAT19#,CT190,ST191..UKP..LB199405-199710

BLACK,TRIM1#,8#

main62331-05020-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#

main62331-05030iAT19#,CT190,ST191..UKP..WG199505-199710

main62331-20090-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#,8#

sub62331-20020

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-05010-C0iAT19#,CT190,ST191..UKP..SED199405-199710

BLACK,TRIM1#,8#

main62332-05010-C0iAT190,ST191..UKP..SED199312-199405

BLACK,TRIM2#,8#

main62332-05020-C0iAT190,ST191..UKP..LB199312-199405

BLACK,TRIM2#,8#

main62332-05020-C0iAT19#,CT190,ST191..UKP..LB199405-199710

BLACK,TRIM1#,8#

main62332-05030iAT19#,CT190,ST191..UKP..WG199505-199710

main62332-20090-C0iAT190,ST191..UKP199308-199312

BLACK,TRIM2#,8#

sub62332-20040

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main62411-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main62411-20290-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub62411-20290

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-05010-B0iAT190,ST191..UKP199308-199405

GRAY,TRIM2#,8#

main62412-05010-B0iAT19#,CT190,ST191..UKP199405-199710

GRAY,TRIM1#,8#

main62412-20290-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main62413-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main62413-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main62413-20170-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub62413-20160

main62413-20170-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub62413-20160

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main62414-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main62414-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DARK BLUE,TRIM8#

main62414-20140-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub62414-20170

main62414-20140-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub62414-20170

62471AGARNISH, ROOF SIDE, INNER RH

main62470-05010-B0iAT190,ST191..UKP..LB199312-199405

GRAY,TRIM2#,8#

main62470-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

GRAY,TRIM1#,8#

main62471-05010-B0iAT19#,CT190,ST191..UKP..SED199405-199710

GRAY,TRIM1#,8#

main62471-05010-B0iAT190,ST191..UKP..SED199308-199405

GRAY,TRIM2#,8#

main62471-20430-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub62471-20430

main62471-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

GRAY,TRIM1#,8#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-05010-B0iAT190,ST191..UKP..SED199308-199405

GRAY,TRIM2#,8#

main62472-05010-B0iAT19#,CT190,ST191..UKP..SED199405-199710

GRAY,TRIM1#,8#

main62472-20450-B1iAT190,ST191..UKP199212-199308

GRAY,TRIM2#,8#

sub62472-20450

main62472-21010-B0iAT19#,CT190,ST191..UKP..WG199505-199710

GRAY,TRIM1#,8#

main62480-05010-B0iAT190,ST191..UKP..LB199312-199405

GRAY,TRIM2#,8#

main62480-05010-B0iAT19#,CT190,ST191..UKP..LB199405-199710

GRAY,TRIM1#,8#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main67911-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,8#

main67911-20040-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#,8#

sub67911-20040

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,8#

main67912-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main67912-20040-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#,8#

sub67912-20040

67913PLATE, FRONT DOOR SCUFF, RH

main67913-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main67913-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main67913-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main67913-20190-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub67913-20191

sub67913-20190

main67913-20190-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub67913-20191

sub67913-20190

67914PLATE, FRONT DOOR SCUFF, LH

main67914-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main67914-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main67914-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main67914-20150-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub67914-20150

main67914-20150-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub67914-20150

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,8#

main67915-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main67915-20030-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#,8#

sub67915-20030

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-05010-C0iAT19#,CT190,ST191..UKP199405-199710

BLACK,TRIM1#,8#

main67916-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#,8#

main67916-20030-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#,8#

67917APLATE, REAR DOOR SCUFF, RH

main67917-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main67917-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main67917-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main67917-20170-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub67917-20170

main67917-20170-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub67917-20170

67918APLATE, REAR DOOR SCUFF, LH

main67918-05010-B0iAT19#,CT190,ST191..UKP199405-199710

SHADOW GRAY,TRIM1#

main67918-05010-C0iAT190,ST191..UKP199308-199405

BLACK,TRIM2#

main67918-05010-J0iAT19#,CT190,ST191..UKP199308-199710

DK. BLUE,TRIM8#

main67918-20130-C0iAT190,ST191..UKP199212-199308

BLACK,TRIM2#

sub67918-20130

main67918-20130-J0iAT190,ST191..UKP199212-199308

DK.BLUE,TRIM8#

sub67918-20130

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20030iAT19#,CT190,ST191..UKP199212-199710

NO.1

main67924-20030iAT19#,CT190,ST191..UKP199212-199710

NO.2

main67924-20040iAT19#,CT190,ST191..UKP199212-199710

NO.3

6777112050WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-12050

6777120090WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20090

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9018906018

main90189-06018

9046710161

main90467-10161

9046710168

main90467-10168

9356015016

main93560-15016

31 parts on this diagram · 3 diagrams in section
