EPC Data

SIDE MEMBER

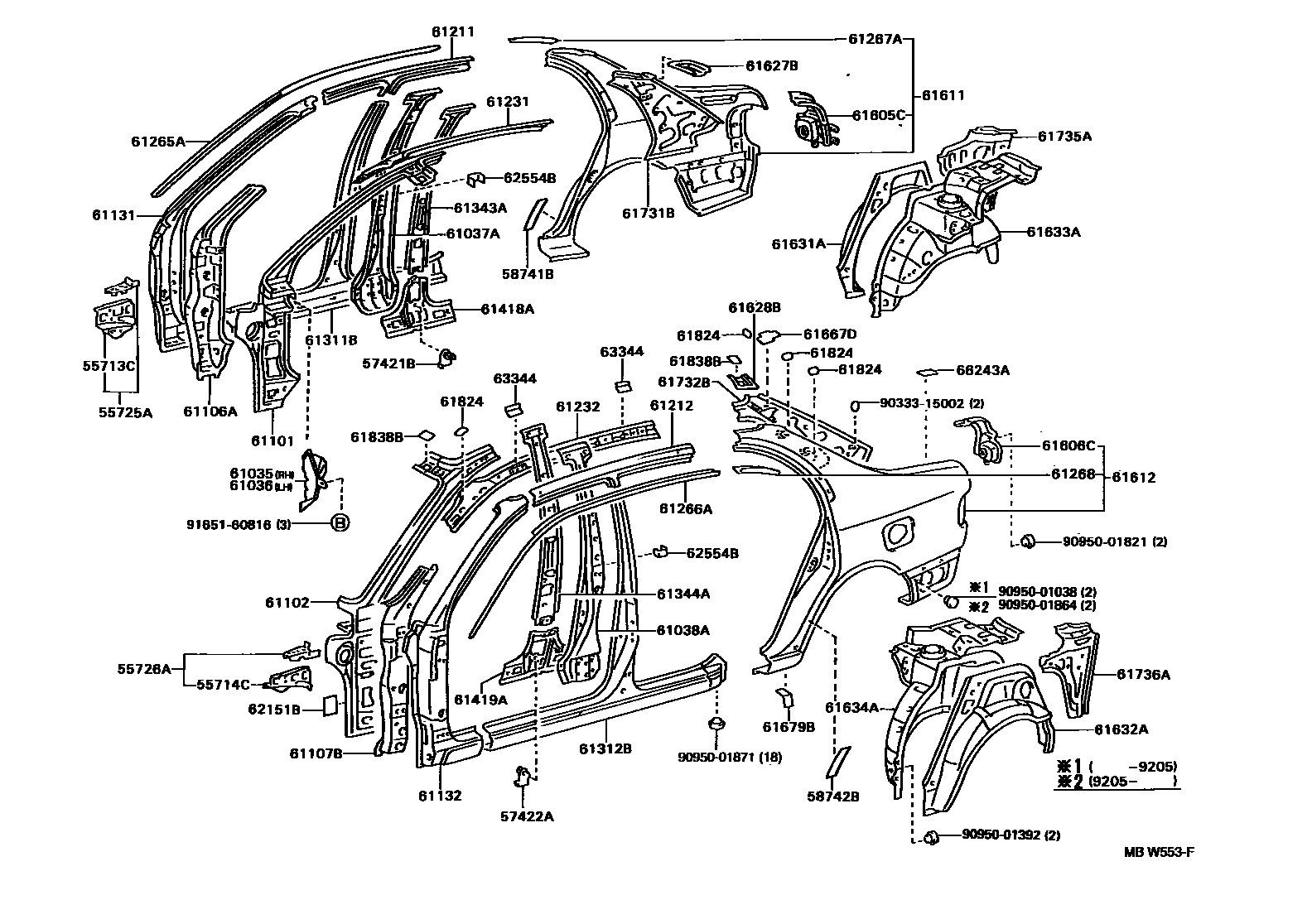

Parts diagram
55713CPANEL, COWL TOP SIDE, RH
main55713-20130i199212-199710
55714CPANEL, COWL TOP SIDE, LH
main55714-20140i199212-199710
55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH
main55725-20900i199212-199710
55726AREINFORCEMENT, HOOD HINGE MOUNTING, LH
main55726-20900i199212-199710
57421BPLATE, FLOOR SIDE RAIL, RH
main57421-20040i199212-199412
57422APLATE, FLOOR SIDE RAIL, LH
main57421-20040i199212-199412
58741BPROTECTOR, QUARTER PANEL, RH
main58741-05010i199308-199601
COLD SPEC
main58741-20120i199212-199411
COLD SPEC
58742BPROTECTOR, QUARTER PANEL, LH
main58742-05010i199308-199601
COLD SPEC
main58742-20110i199212-199411
COLD SPEC
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
main55774-20090i199212-199710
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
main55775-20070i199212-199710
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-05010i199212-199507
main61037-05020i199507-199601
main61037-05030i199601-199710
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-05010i199212-199507
main61038-05020i199507-199601
main61038-05030i199601-199710
61101PANEL SUB-ASSY, COWL SIDE, RH
main61101-05900i199212-199710
main61101-05901i199212-199710
61102PANEL SUB-ASSY, COWL SIDE, LH
main61102-05900i199212-199710
main61102-05901i199212-199710
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
main61106-20150i199212-199410
main61106-20240i199410-199710
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
main61107-20150i199212-199410
main61107-20230i199410-199710
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-20410i199212-199710
W(ANTENNA HOLE)
main61131-20420i199601-199710
W/O(ANTENNA HOLE)
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-20360i199212-199710
W(ANTENNA HOLE)
main61132-20370i199212-199710
W/O(ANTENNA HOLE)
61211RAIL, ROOF SIDE, OUTER RH
main61211-20240i199212-199710
61212RAIL, ROOF SIDE, OUTER LH
main61212-20240i199212-199710
61231RAIL, ROOF SIDE, INNER RH
main61231-20350i199312-199407
W(MOON ROOF)
main61231-20410i199312-199507
sub61231-20440
main61231-20430i199507-199710
sub61231-20440
main61231-21050i199505-199507
main61231-21060i199505-199507
W(ROOF RACK)
main61231-21070i199505-199507
W(MOON ROOF)
main61231-21071i199507-199710
61232RAIL, ROOF SIDE, INNER LH
main61232-20340i199212-199312
main61232-20400i199312-199507
sub61232-20430
main61232-20420i199507-199710
sub61232-20430
main61232-21050i199505-199507
main61232-21060i199505-199507
W(ROOF RACK)
main61232-21070i199505-199507
W(MOON ROOF)
main61232-21071i199507-199710
61265ACHANNEL, ROOF DRIP SIDE, CENTER RH
main61265-05010i199308-199710
main61265-20070i199212-199312
main61265-21010i199505-199710
61266ACHANNEL, ROOF DRIP SIDE, CENTER LH
main61266-05010i199308-199710
main61266-20070i199212-199312
main61266-21010i199505-199710
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
main61267-05010i199308-199710
main61267-05020i199312-199710
main61267-20060i199212-199312
main61267-21010i199505-199710
61268CHANNEL, ROOF DRIP SIDE, REAR LH
main61268-05010i199308-199710
main61268-05020i199312-199710
main61268-20060i199212-199312
main61268-21010i199505-199710
61311BPILLAR, CENTER BODY, OUTER RH
main61311-20240i199212-199710
61312BPILLAR, CENTER BODY, OUTER LH
main61312-20310i199212-199710
61343APILLAR, CENTER BODY, INNER RH
main61343-20110i199212-199409
main61343-20111i199409-199507
sub61343-21040
main61343-20150i199507-199710
61344APILLAR, CENTER BODY, INNER LH
main61344-20110i199212-199409
main61344-20111i199409-199507
sub61344-21040
main61344-20150i199507-199710
61418AREINFORCEMENT, ROCKER PANEL, RH
main61418-05010i199212-199405
main61418-05020i199405-199710
main61418-20130i199212-199302
61419AREINFORCEMENT, ROCKER PANEL, LH
main61419-05010i199212-199405
main61419-05020i199405-199710
main61419-20110i199212-199302
61605CPANEL SUB-ASSY, QUATER, REAR INNER RH
main61605-05010i199212-199710
61606CPANEL SUB-ASSY, QUATER, REAR INNER LH
main61606-05010i199212-199710
61611PANEL, QUARTER, RH
main61601-05050i199505-199710
main61601-05060i199505-199601
W(MOTOR ANTENNA)
main61601-05900i199212-199405
main61601-05901i199212-199405
W(REAR SPOILER)
main61601-05902i199312-199405
main61601-05903i199312-199405
W(REAR SPOILER)
main61601-05904i199405-199710
main61601-05905i199601-199604
W(HIGH MOUNT STOP LAMP)
main61601-05906i199405-199710
main61601-05907i199405-199601
W(REAR SPOILER)
61612PANEL, QUARTER, LH
main61602-05090i199505-199710
main61602-05900i199212-199710
main61602-05901i199212-199601
W(REAR SPOILER)
main61602-05902i199212-199710
W(MOTOR ANTENNA)
main61602-05903i199604-199710
W(HIGH MOUNT STOP LAMP & MOTER ANTENNA)
main61602-05904i199312-199710
main61602-05905i199312-199601
W(REAR SPOILER)
main61602-05906i199312-199710
W(MOTOR ANTENNA)
main61602-05907i199601-199604
W(HIGH MOUNT STOP LAMP & MOTER ANTENNA)
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
main61627-20100i199212-199710
main61627-20110i199312-199710
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
main61628-20120i199212-199710
main61628-20130i199312-199710
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-20260i199212-199710
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-20240i199212-199710
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61603-05900i199212-199710
main61603-05901i199601-199710
W(REAR BENCH SEAT)
main61603-05902i199312-199710
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61604-05900i199212-199710
main61604-05901i199601-199710
W(REAR BENCH SEAT)
main61604-05902i199312-199710
main61604-05903i199505-199710
61667DSEAL, QUARTER PANEL
main61667-05011i199212-199710
RH
main61668-05011i199212-199710
LH
main61668-05020i199312-199710
61679BSEAL, QUARTER WHEEL HOUSE
61731BPANEL, ROOF SIDE, INNER RH
main61731-05010i199212-199710
main61731-20280i199312-199710
main61731-21080i199505-199710
61732BPANEL, ROOF SIDE, INNER LH
main61732-05010i199212-199710
main61732-20280i199312-199710
main61732-21080i199505-199710
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-05010i199212-199710
main61735-20190i199312-199710
main61735-21020i199505-199710
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-05010i199212-199710
main61736-20180i199312-199710
main61736-21020i199505-199710
61824PLATE, NOISE CONTROL, NO.1
main61824-05020×4i199301-199305
W(MOON ROOF)
61838BPLATE, NOISE CONTROL, NO.5
main61838-05010×4i199212-199710
62151BPAD, COWL SIDE SILENCER
main62151-05010×2i199212-199710
62554BPAD, PILLAR, NO.4
63344PAD, ROOF SILENCER, NO.4
main63344-20100×4i199308-199601
main63344-32020×4i199212-199308
66243APROTECTOR, REAR BODY, NO.1
main66244-05010×2i199308-199710
main66244-20020×2i199212-199312
9033315002
main90333-15002
9095001038
main90950-01038
9095001392
main90950-01392
9095001821
main90950-01821
9095001864
main90950-01864
9095001871
main90950-01871
9165160816
main91651-60816

61 parts on this diagram · 6 diagrams in section
