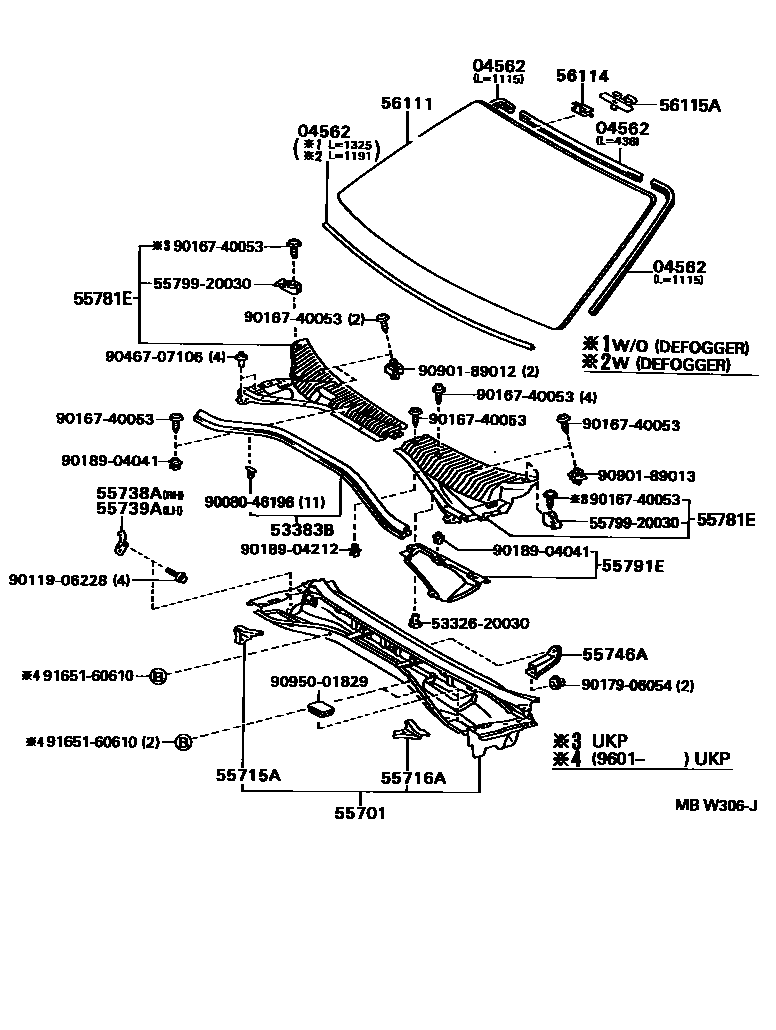

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAT19#,CT190,ST191..UKP199212-199710

53383BSEAL, HOOD TO COWL TOP

main53383-05010iAT19#,CT190,ST191..UKP199212-199710

main53383-20160iAT190,ST191..UKP199212-199304

55701PANEL SUB-ASSY, COWL

main55700-05020iST191..UKP..RHD199212-199710

main55700-05040iAT190,ST191..UKP..LHD..ATM199212-199601

main55700-05050iAT191..UKP..LHD..MTM;AT190,CT190,ST191..UKP..LHD199212-199710

main55700-05060iAT19#,CT190..UKP..RHD199601-199710

main55700-05110iAT191..UKP..LHD..ATM199601-199710

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120iAT19#,CT190,ST191..UKP199212-199710

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090iAT19#,CT190,ST191..UKP199212-199710

55738ASTOPPER, HOOD, RH

main55738-20050iAT19#,CT190,ST191..UKP199212-199710

55739ASTOPPER, HOOD, LH

main55739-20050iAT19#,CT190,ST191..UKP199212-199710

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-20100iAT19#,CT190,ST191..UKP199212-199710

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-05010iAT190,ST191..UKP..RHD199308-199405

COLD SPEC,RH

main55708-05020iAT190..UKP..LHD..ATM199308-199710

W(NET),RH

main55708-05030iAT19#,CT190,ST191..UKP..RHD199308-199710

RH

main55708-05040iAT19#,CT190,ST191..UKP..LHD199308-199710

RH

main55708-20130iAT190,CT190,ST191..UKP..LHD199212-199411

RH

main55708-20140iAT190..UKP..LHD..SED..MTM..XL199212-199411

W(NET),RH

main55708-20150iAT190,CT190,ST191..UKP..RHD199212-199411

RH

main55708-20160iAT190,ST191..UKP..RHD199212-199405

COLD SPEC,RH

main55709-05010iAT190,ST191..UKP..RHD199308-199405

COLD SPEC,LH

main55709-05020iAT190..UKP..LHD..(LB,SED)..MTM..GL199308-199710

W(NET),LH

main55709-05030iAT19#,CT190,ST191..UKP..RHD199308-199710

LH

main55709-05040iAT19#,CT190,ST191..UKP..LHD199308-199710

LH

main55709-20050iAT190,CT190,ST191..UKP..LHD199212-199411

LH

main55709-20060iAT190..UKP..LHD..SED..MTM..XL199212-199411

W(NET),LH

main55709-20070iAT190,CT190,ST191..UKP..RHD199212-199411

LH

main55709-20080iAT190,ST191..UKP..RHD199212-199405

COLD SPEC,LH

55791ECOVER, HEATER DUCT HOLE

main55790-20010iAT19#,CT190,ST191..UKP..RHD199212-199710

main55790-20020iAT19#,CT190,ST191..UKP..LHD199212-199710

56111GLASS, WINDSHIELD

main56101-05010iAT190,ST191..UKP..RHD..GL199212-199302

*EHTL,T=4.75,GREEN

sub56101-05011

main56101-05011iAT191..UKP..RHD199302-199710

*EHTL,T=4.75,GREEN

main56101-05020iAT190,ST191..UKP..LHD..GL199212-199302

*EHTL,T=4.75,GREEN,W(TOP SHADE)

sub56101-05021

main56101-05021iAT191..UKP..LHD199302-199710

*EHTL,T=4.75,GREEN

main56111-05010iAT190,ST191..UKP199212-199302

*LAM,T=5.0,GREEN

sub56111-05011

main56111-05011iAT19#,CT190,ST191..UKP199302-199710

*LAM,T=4.9,GREEN

main56111-05020iAT190,ST191..UKP199212-199302

*LAM,T=5.0,GREEN,W(TOP SHADE)

sub56111-05021

main56111-05021iAT190,ST191..UKP199302-199311

*LAM,T=4.9,GREEN,W(TOP SHADE)

56114RETAINER, WINDSHIELD GLASS

main56114-20010iAT190,ST191..UKP..LHD..GL199212-199302

main56114-20040iAT19#,CT190,ST191..UKP199302-199710

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20060iAT19#,CT190,ST191..UKP199302-199710

5332620030CLIP, HOOD PROTECTOR

main53326-20030

5579920030COVER, WIPER MOTOR

main55799-20030

9008046196

main90080-46196

9011906228

main90119-06228

9016740053

main90167-40053

9017906054

main90179-06054

9018904041

main90189-04041

9018904212

main90189-04212

9046707106

main90467-07106

9090189012

main90901-89012

9090189013

main90901-89013

9095001829

main90950-01829

9165160610

main91651-60610

26 parts on this diagram · 2 diagrams in section
