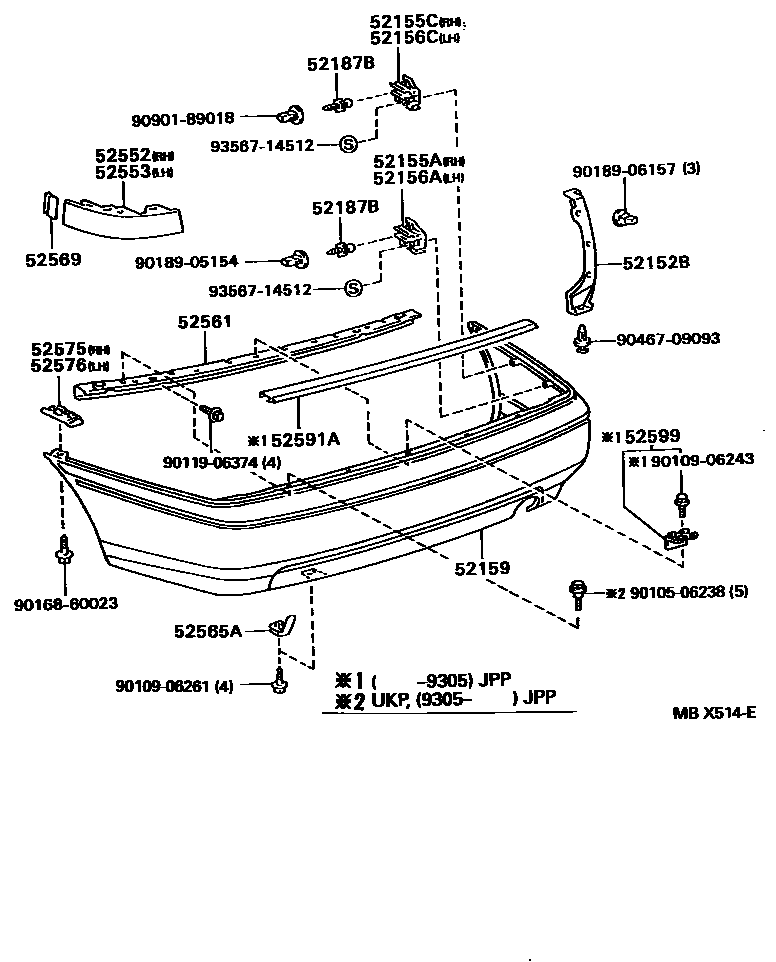

REAR BUMPER & BUMPER STAY

0001 1W(LICENSE PLATE SPACE(550 X 10002 1

52152BEXTENSION, REAR BUMPER, RH

main52152-05010iAT19#,CT190,ST191..UKP199308-199710

main52152-20180iAT190,ST191..UKP199212-199312

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-05010iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

main52155-20270iAT190,ST191..UKP199212-199312

main52155-21010iAT19#,CT190,ST191..UKP..WG199505-199710

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20280iAT190,ST191..UKP199212-199312

main52155-21020iAT19#,CT190,ST191..UKP..WG199505-199710

main52157-05010iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-05010iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

main52155-20270iAT190,ST191..UKP199212-199312

main52155-21010iAT19#,CT190,ST191..UKP..WG199505-199710

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52155-20280iAT190,ST191..UKP199212-199312

main52155-21020iAT19#,CT190,ST191..UKP..WG199505-199710

main52157-05010iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

52159COVER, REAR BUMPER

main52159-05020iAT19#,CT190,ST191..UKP..(LB,SED)199212-199710

main52159-05040iAT19#,CT190,ST191..UKP..WG199505-199710

52187BGUIDE, REAR BUMPER LOCATION

main52187-12140iAT19#,CT190,ST191..UKP199212-199710

52552FILLER, REAR BUMPER, RH

main52552-20020iAT19#,CT190,ST191..UKP..SED199212-199710

main52552-20030iAT19#,CT190,ST191..UKP..LB199312-199710

52553FILLER, REAR BUMPER, LH

main52553-20020iAT19#,CT190,ST191..UKP..SED199212-199710

main52553-20030iAT19#,CT190,ST191..UKP..LB199312-199710

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-05010iAT19#,CT190,ST191..UKP..(LB,SED)199308-199710

main52561-20180iAT190,ST191..UKP199212-199312

main52561-21020iAT19#,CT190,ST191..UKP..WG199505-199710

52565ARETAINER, REAR BUMPER, LOWER

main52565-20170iAT190,ST191..UKP199212-199311

main90467-11028iAT19#,CT190,ST191..UKP..(LB,SED)199311-199710

52569PAD, REAR BUMPER FILLER

main52569-20020iAT19#,CT190,ST191..UKP..SED199212-199710

main52569-20030iAT19#,CT190,ST191..UKP..LB199312-199710

52575RETAINER, REAR BUMPER SIDE, RH

main52575-05010iAT19#,CT190,ST191..UKP199308-199710

main52575-20030iAT190,ST191..UKP199212-199312

52576RETAINER, REAR BUMPER SIDE, LH

main52576-05010iAT19#,CT190,ST191..UKP199308-199710

main52576-20030iAT190,ST191..UKP199212-199312

52591ASEAL, REAR BUMPER

52599STOPPER, REAR BUMPER, UPPER

9010506238

main90105-06238

9010906243

main90109-06243

9010906261

main90109-06261

9011906374

main90119-06374

9016860023

main90168-60023

9018905154

main90189-05154

9018906157

main90189-06157

9046709093

main90467-09093

9090189018

main90901-89018

9356714512

main93567-14512

26 parts on this diagram · 2 diagrams in section
