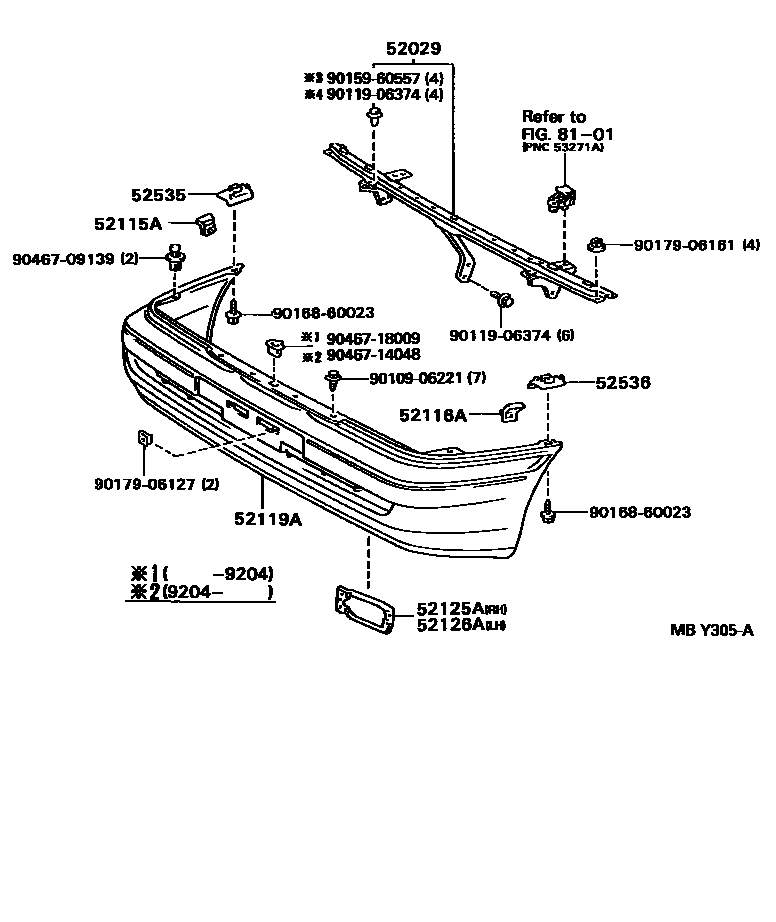

FRONT BUMPER & BUMPER STAY

0001 1W(LICENSE PLATE SPACE(550 X 10002 1W(LICENSE PLATE SPACE(390 X 1

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-05010iAT190..UKP..LHD..GL199308-199312

W(HEADLAMP CLEANER),(L)

main52029-05010iAT19#,CT190,ST191..UKP199308-199710

(L)

main52029-20030iAT190..UKP..LHD..GL199308-199312

W(HEADLAMP CLEANER),(J)

main52029-20030iAT190,ST191..UKP199212-199312

(J)

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20300iAT19#,CT190,ST191..UKP199212-199710

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20210iAT19#,CT190,ST191..UKP199212-199710

52119ACOVER, FRONT BUMPER

main52119-05020iAT19#,CT190,ST191..UKP199212-199710

main52119-05040iAT19#,CT190,ST191..UKP199212-199710

W(HEADLAMP CLEANER)

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-20080iAT190,ST191..UKP..GL199212-199710

sub52125-43010

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-20050iAT190,ST191..UKP..GL199212-199710

sub52126-43010

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-05010iAT190..UKP..LHD..MTM..XL199308-199312

W(HEADLAMP CLEANER),(L)

main52535-05010iAT19#,CT190,ST191..UKP199308-199710

(L)

main52535-20050iAT190..UKP..LHD..GL199308-199312

W(HEADLAMP CLEANER),(J)

main52535-20050iAT190,ST191..UKP199212-199312

(J)

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-05010iAT190..UKP..LHD..XL199308-199312

W(HEADLAMP CLEANER),(L)

main52536-05010iAT19#,CT190,ST191..UKP199308-199710

(L)

main52536-20050iAT190..UKP..LHD..GL199308-199312

W(HEADLAMP CLEANER),(J)

main52536-20050iAT190,ST191..UKP199212-199312

(J)

8101

9010906221

main90109-06221

9011906374

main90119-06374

9015960557

main90159-60557

9016860023

main90168-60023

9017906127

main90179-06127

9017906161

main90179-06161

9046709139

main90467-09139

9046714048

main90467-14048

9046718009

main90467-18009

18 parts on this diagram · 2 diagrams in section
