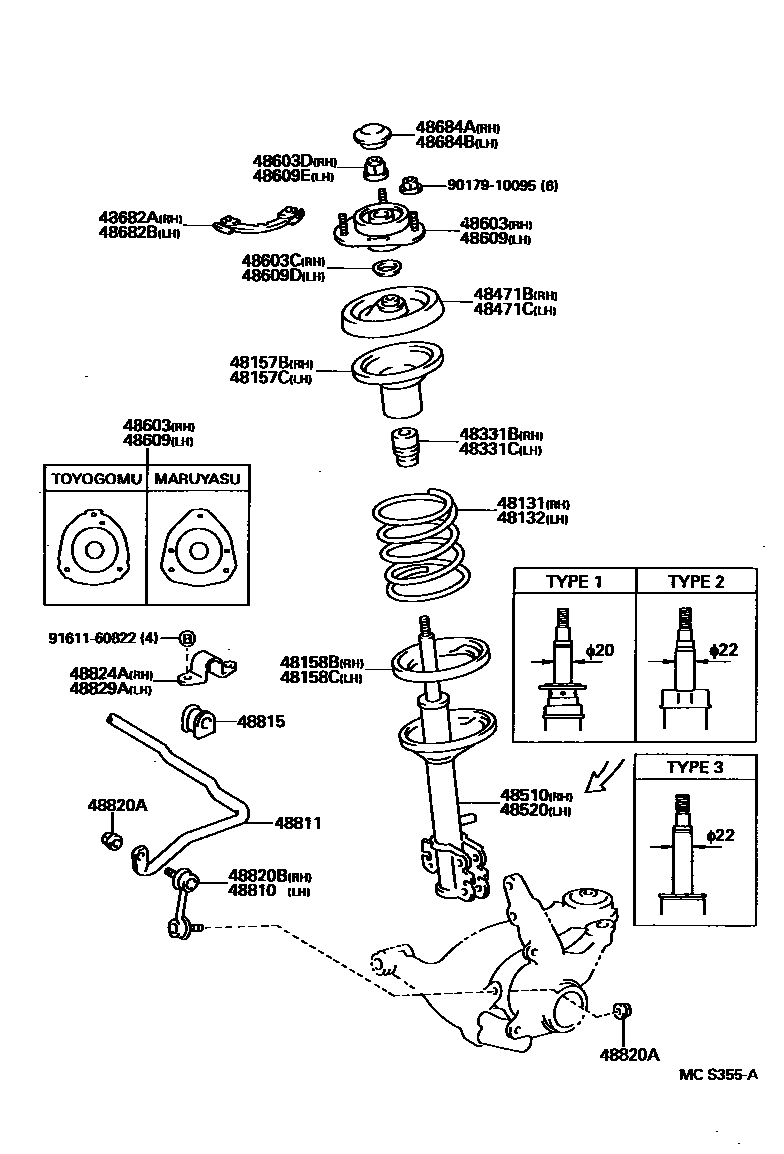

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-05110iAT19#..UKP..RHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05120iCT190..UKP..LHD..SED..XL;ST191..UKP..LHD..SED..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05140iST191..UKP..LHD..SED..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05280iAT19#..UKP..MTM199212-199601

main48131-05300iAT19#..UKP..RHD..MTM199212-199601

IRELAND SPEC

main48131-05310iST191..UKP..LHD..ATM;CT190,ST191..UKP..RHD..MTM199212-199601

main48131-05320iST191..UKP..RHD..ATM199212-199601

IRELAND SPEC

main48131-05330iCT190,ST191..UKP..RHD..MTM199212-199601

IRELAND SPEC

main48131-05340iST191..UKP..RHD..ATM199212-199601

IRELAND SPEC

main48131-05350iAT19#..UKP..LHD..MTM199601-199710

main48131-05360iAT19#..UKP..RHD..MTM;AT191..UKP..LHD..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05400iST191..UKP..RHD..(LB,SED)..ATM199601-199710

ROUGH ROAD PACKAGE

48132SPRING, FRONT COIL, LH

main48131-05110iAT191..UKP..LHD..ATM;CT190,ST191..UKP..RHD..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05120iCT190..UKP..RHD;ST191..UKP..RHD..(LB,SED)..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05140iCT190..UKP..LHD..SED..XL;ST191..UKP..LHD..SED..MTM199601-199710

ROUGH ROAD PACKAGE

main48131-05270iAT19#..UKP..RHD..MTM199212-199601

main48131-05280iAT19#..UKP..LHD..MTM199212-199601

main48131-05290iAT19#..UKP..RHD..MTM199212-199601

IRELAND SPEC

main48131-05300iAT190..UKP..LHD..ATM;CT190,ST191..UKP..MTM199212-199601

main48131-05310iAT190..UKP..RHD..ATM199212-199601

IRELAND SPEC

main48131-05330iCT190,ST191..UKP..RHD199212-199601

IRELAND SPEC

main48131-05350iAT19#..UKP..RHD..MTM199601-199710

main48131-05360iAT19#..UKP..LHD..MTM;AT191..UKP..RHD..ATM199601-199710

ROUGH ROAD PACKAGE

main48131-05400iST191..UKP..LHD..SED..ATM199601-199710

ROUGH ROAD PACKAGE

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-05010iAT190,CT190,ST191..UKP199308-199412

main48157-20130iAT190,CT190,ST191..UKP199212-199412

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-05010iAT190,CT190,ST191..UKP199308-199412

main48157-20130iAT190,CT190,ST191..UKP199212-199412

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-05010iAT190,CT190,ST191..UKP199308-199412

main48158-20080iAT190,CT190,ST191..UKP199212-199412

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-05010iAT190,CT190,ST191..UKP199308-199412

main48158-20080iAT190,CT190,ST191..UKP199212-199412

48331BBUMPER, FRONT SPRING, RH

main48331-05010iCT190,ST191..UKP199308-199412

main48331-05020iAT19#,CT190,ST191..UKP199601-199710

main48331-12120iAT190..UKP199212-199412

48331CBUMPER, FRONT SPRING, LH

main48331-05010iCT190,ST191..UKP199308-199412

main48331-05020iAT19#,CT190,ST191..UKP199601-199710

main48331-12120iAT190..UKP199212-199412

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-05010iAT190,CT190,ST191..UKP199308-199412

main48044-20040iAT190,CT190,ST191..UKP199212-199412

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-05010iAT190,CT190,ST191..UKP199308-199412

main48044-20040iAT190,CT190,ST191..UKP199212-199412

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-05010iAT19#,CT190,ST191..UKP199412-199601

MARK 48510-05010

main48510-09150iAT19#,CT190,ST191..UKP199601-199710

MARK 48510-05030

sub48510-09160

main48510-20890iCT190,ST191..UKP199308-199412

MARK 48510-20890,TYPE 3

sub48510-29375

main48510-2B010iAT190..UKP199308-199412

MARK 48510-2B010,TYPE 1

sub48510-29445

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-05010iAT19#,CT190,ST191..UKP199412-199601

MARK 48520-05010

main48520-09150iAT19#,CT190,ST191..UKP199601-199710

MARK 48520-05030

sub48520-09160

main48520-20890iCT190,ST191..UKP199308-199412

MARK 48520-20890,TYPE 3

sub48520-29185

main48520-2B010iAT190..UKP199308-199412

MARK 48520-2B010,TYPE 1

sub48520-29255

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-20271iAT190..UKP..LHD..XL199212-199501

main48609-20281iAT190..UKP..RHD;AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP199212-199501

W(POWER STEERING)

main48609-20410iAT19#,CT190,ST191..UKP199601-199710

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAT19#,CT190,ST191..UKP199212-199710

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAT19#,CT190,ST191..UKP199212-199710

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-20271iAT190..UKP..LHD..XL199212-199501

main48609-20281iAT190..UKP..RHD;AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP199212-199501

W(POWER STEERING)

main48609-20410iAT19#,CT190,ST191..UKP199601-199710

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAT19#,CT190,ST191..UKP199212-199710

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAT19#,CT190,ST191..UKP199212-199710

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-20010iAT19#,CT190,ST191..UKP199212-199601

main48682-20020iAT19#,CT190,ST191..UKP199601-199710

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-20010iAT19#,CT190,ST191..UKP199212-199601

main48682-20020iAT19#,CT190,ST191..UKP199601-199710

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-05010iAT190,CT190,ST191..UKP199308-199412

main48684-20020iAT190,CT190,ST191..UKP199212-199412

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-05010iAT19#,CT190,ST191..UKP199412-199710

main48684-20020iAT190,CT190,ST191..UKP199212-199412

48810LINK ASSY, FRONT STABILIZER, LH

main48810-05010iAT19#,CT190,ST191..UKP199412-199512

main48810-05011iAT19#,CT190,ST191..UKP199512-199706

sub48810-05012

main48810-20020iAT190,CT190,ST191..UKP199212-199412

sub48810-44010

48811BAR, STABILIZER, FRONT

main48811-05010iAT190..UKP..LHD..XL199212-199501

main48811-05020iAT190..UKP..RHD;AT190..UKP..LHD..GL;AT191,CT190,ST191..UKP199212-199501

W(POWER STEERING)

main48811-05030iAT19#,CT190,ST191..UKP199601-199710

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-05010×2iAT190..UKP..LHD..XL199412-199501

main48815-05020×2iAT190..UKP..LHD..XL199412-199501

W(POWER STEERING)

main48815-05030×2iAT19#,CT190,ST191..UKP199601-199710

main48815-20030×2iAT190..UKP..LHD..XL199212-199412

main48815-30040×2iAT190..UKP..LHD..XL199212-199412

W(POWER STEERING)

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054×4iAT19#,CT190,ST191..UKP199212-199610

main90179-10183×4iAT19#,CT190,ST191..UKP199610-199710

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-05010iAT19#,CT190,ST191..UKP199412-199512

main48820-05011iAT19#,CT190,ST191..UKP199512-199706

sub48820-05012

main48820-20040iAT190,CT190,ST191..UKP199212-199412

sub48820-44010

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12040iAT19#,CT190,ST191..UKP199212-199710

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-12040iAT19#,CT190,ST191..UKP199212-199710

9017910095

main90179-10095

9161160822

main91611-60822

31 parts on this diagram · 1 diagram in section
