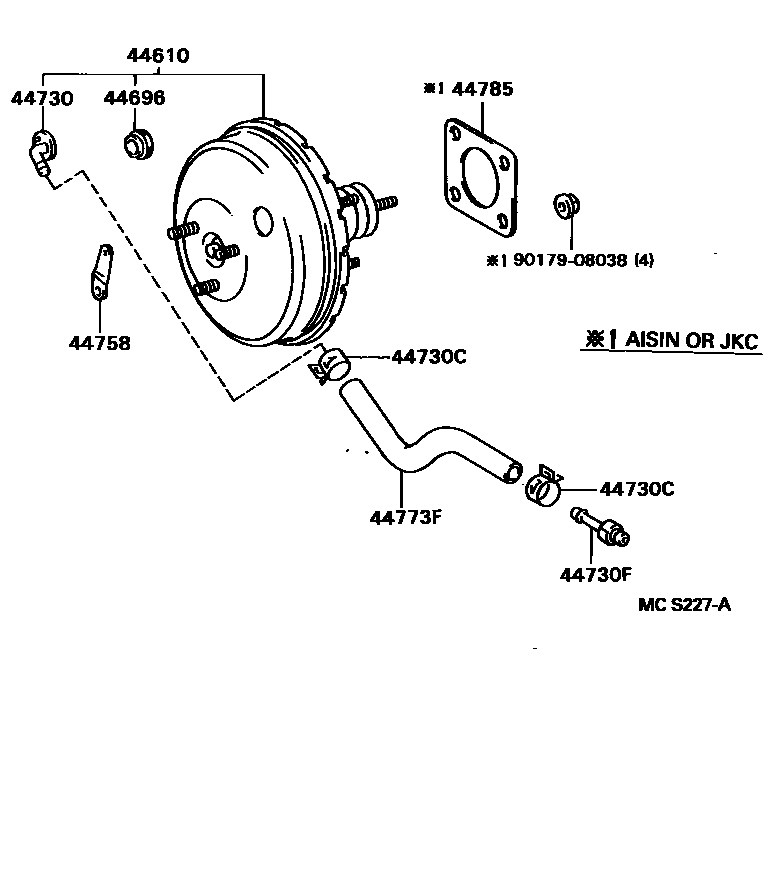

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44610BOOSTER ASSY, BRAKE

main44610-05010iCT190..UKP..RHD199410-199601

TEVES

main44610-05010iAT19#,CT190,ST191..UKP..RHD199601-199710

main44610-05020iCT190..UKP..LHD199410-199601

TEVES

main44610-05020iAT19#,CT190,ST191..UKP..LHD199601-199710

main44610-2D260iAT19#,ST191..UKP..RHD¥45,300199412-199601

AISIN

main44610-2D260iAT190,ST191..UKP..RHD¥45,300199212-199412

main44610-2D340iAT190,ST191..UKP..RHD¥63,400199212-199405

W(*66)

main44610-2D370iAT190,ST191..UKP..LHD¥46,700199212-199412

main44610-2D370iAT19#,ST191..UKP..LHD¥46,700199412-199601

AISIN

main44610-2D430iCT190..UKP..RHD¥45,100199410-199601

AISIN

main44610-2D450iCT190..UKP..LHD¥45,100199410-199601

AISIN

main44610-2D470iAT190,ST191..UKP..LHD¥63,400199212-199405

W(*66)

main44610-2D680iAT190,ST191..UKP..RHD199405-199412

W(*66)

main44610-2D681iAT19#,ST191..UKP..RHD¥46,500199412-199601

W(*66),JKC

main44610-2D690iCT190..UKP..RHD¥37,800199412-199601

W(*66),AISIN

main44610-2D700iAT190,ST191..UKP..LHD¥46,500199405-199412

W(*66)

main44610-2D700iAT19#,ST191..UKP..LHD¥46,500199412-199601

W(*66),AISIN

main44610-2D710iCT190..UKP..LHD¥37,800199412-199601

W(*66),AISIN

44696GROMMET, CHECK VALVE

main90480-24439iAT19#,CT190,ST191..UKP¥390199212-199710

main90480-24439iAT19#,ST191..UKP..LHD¥390199405-199601

W(*66)

main90480-24439iAT19#,ST191..UKP..RHD¥390199412-199601

W(*66),BOOSTER:TEVES,AISIN

main90480-24517iAT190,ST191..UKP..RHD¥580199212-199412

W(*66)

sub90480-24015¥130

main90480-24517iAT19#,ST191..UKP..RHD¥580199412-199601

W(*66),BOOSTER:JKC

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iAT19#,ST191..UKP..LHD¥1,380199412-199601

W(*66),BOOSTER:TEVES

main44730-14050iAT19#,CT190,ST191..UKP¥1,380199212-199710

main44730-14050iAT19#,ST191..UKP..LHD¥1,380199412-199601

BOOSTER:TEVES

main44730-20110iAT190,ST191..UKP..LHD¥2,170199212-199412

main44730-20110iAT19#,ST191..UKP..LHD¥2,170199412-199601

BOOSTER:AISIN

main44730-28010iAT19#,ST191..UKP..RHD¥1,360199412-199601

W(*66),BOOSTER:AISIN

main44730-28010iAT190,ST191..UKP..RHD¥1,360199212-199412

W(*66)

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iAT19#,ST191..UKP..RHD¥200199212-199710

sub96134-51500¥180

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAT19#,ST191..UKP¥220199212-199710

44758BRACKET, VACUUM CHECK VALVE

main44758-05010iCT190..UKP..RHD199410-199710

main44758-05010iAT19#,ST191..UKP..RHD199412-199601

BOOSTER:TEVES

main44758-05020iCT190..UKP..LHD199410-199710

main44758-05020iAT19#,ST191..UKP..LHD199412-199601

BOOSTER:TEVES

main44758-20220iAT19#,ST191..UKP..RHD¥200199412-199601

W(*66),BOOSTER:JKC

main44758-20220iAT190,ST191..UKP..RHD¥200199212-199412

main44758-20220iAT19#,ST191..UKP..RHD¥200199412-199601

BOOSTER:AISIN

main44758-20230iAT190,ST191..UKP..RHD¥200199212-199405

W(*66)

main44758-20240iAT19#,ST191..UKP..LHD¥130199412-199601

BOOSTER:AISIN

main44758-20240iAT190,ST191..UKP..LHD¥130199212-199412

main44758-20250iAT190,ST191..UKP..LHD¥120199212-199405

W(*66)

44773FHOSE, UNION TO CHECK VALVE

main44773-20820iAT19#,ST191..UKP..RHD¥2,260199212-199710

main44773-20840iAT190,ST191..UKP..RHD¥2,030199212-199405

W(*66)

main44773-20870iCT190..UKP¥2,120199410-199601

main44773-2B060iCT190..UKP¥1,900199601-199710

44785GASKET, BRAKE BOOSTER

main44785-20020iAT19#,CT190,ST191..UKP¥320199212-199710

9017908038

main90179-08038¥130

9 parts on this diagram · 6 diagrams in section
