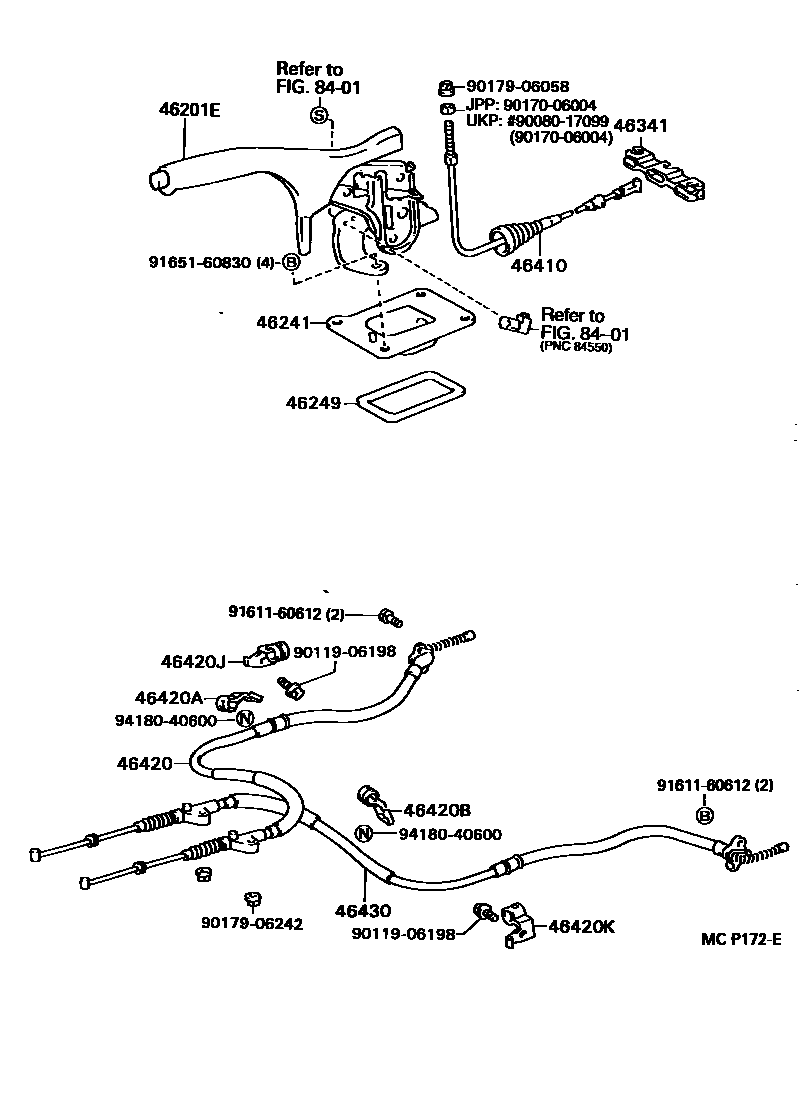

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-05010-C0iAT19#,CT190,ST191..UKP..RHD199412-199710

BLACK,TRIM1#,8#

main46201-05020-C0iAT19#,CT190,ST191..UKP..LHD199412-199710

BLACK,TRIM1#,8#

main46201-20230-C0iAT190,ST191..UKP..RHD199212-199405

BLACK,TRIM2#,8#

sub46201-20230

main46201-20230-C0iAT19#,CT190,ST191..UKP..RHD199405-199601

BLACK,TRIM1#,8#

sub46201-20230

main46201-20270-C0iAT190,ST191..UKP..LHD199212-199405

BLACK,TRIM2#,8#

sub46201-20270

main46201-20270-C0iAT19#,CT190,ST191..UKP..LHD199405-199601

BLACK,TRIM1#,8#

sub46201-20270

46241BOOT, PARKING BRAKE LEVER

main46241-20120iAT19#,CT190,ST191..UKP..RHD199212-199710

main46241-20130iAT19#,CT190,ST191..UKP..LHD199212-199710

46249SHIELD, PARKING BRAKE HOLE

main46249-05010iAT19#,CT190,ST191..UKP199412-199710

main46249-20050iAT190,CT190,ST191..UKP199212-199412

46341EQUALIZER, PARKING BRAKE

main46341-05010iAT19#,CT190,ST191..UKP199412-199710

main46341-12020iAT190,ST191..UKP199212-199307

main46341-20090iAT19#,CT190,ST191..UKP199307-199601

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-05010iAT19#,CT190,ST191..UKP199412-199710

main46410-20380iAT19#,CT190,ST191..UKP199212-199601

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-05010iAT19#,CT190,ST191..UKP199412-199601

BOWDEN CONTROLS

main46420-05010iAT19#,CT190,ST191..UKP199601-199710

main46420-20351iAT19#,CT190,ST191..UKP199412-199601

NIHON CABLE

main46420-20351iAT190,CT190,ST191..UKP199212-199412

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01771iAT19#,CT190,ST191..UKP199212-199710

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01772iAT19#,CT190,ST191..UKP199212-199710

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46451-20020iAT19#,CT190,ST191..UKP199307-199710

main90949-01709iAT190,ST191..UKP199212-199307

sub90949-01A66

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46451-20030iAT19#,CT190,ST191..UKP199307-199710

main90949-01711iAT190,ST191..UKP199212-199307

sub90949-01A67

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-05010iAT19#,CT190,ST191..UKP199412-199601

BOWDEN CONTROLS

main46430-05010iAT19#,CT190,ST191..UKP199601-199710

main46430-20361iAT190,CT190,ST191..UKP199212-199412

main46430-20361iAT19#,CT190,ST191..UKP199412-199601

NIHON CABLE

8401

9008017099

main90080-17099

9011906198

main90119-06198

9017006004

main90170-06004

9017906058

main90179-06058

9017906242

main90179-06242

9161160612

main91611-60612

9165160830

main91651-60830

9418040600

main94180-40600

20 parts on this diagram · 1 diagram in section
