REAR AXLE SHAFT & HUB

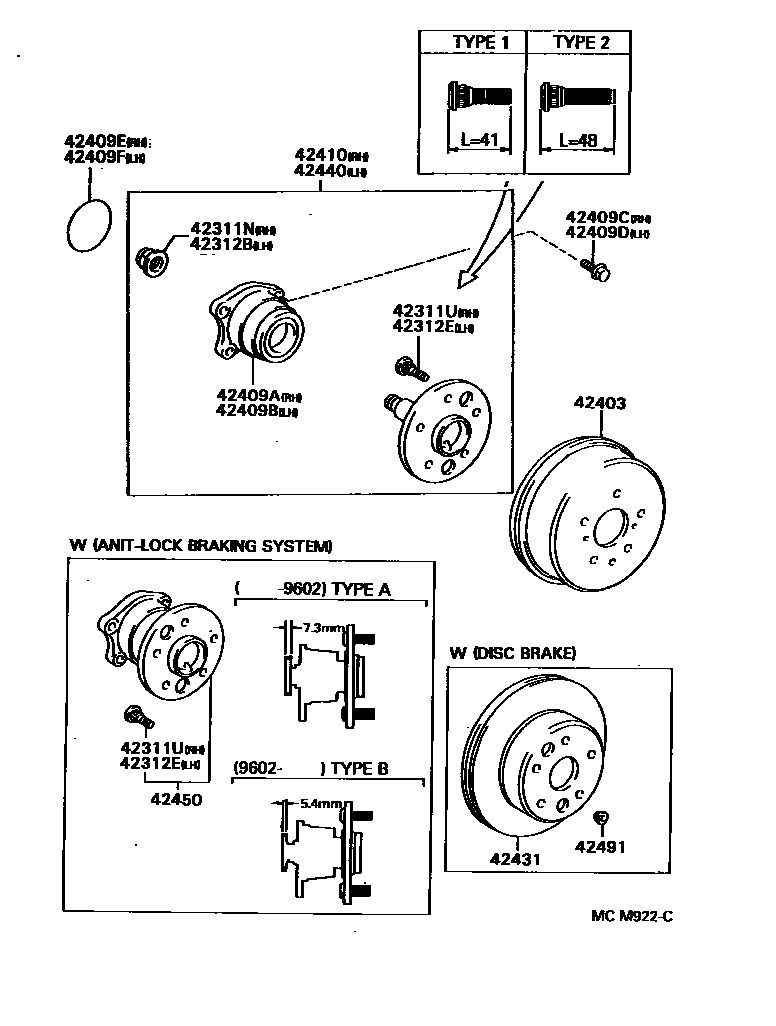

Parts diagram
42311NNUT(FOR REAR AXLE SHAFT RH)
main90179-20017i¥410199410-199601
IRELAND SPEC
main90179-20017i¥410199212-199710
42311UBOLT, HUB(FOR REAR AXLE RH)
main90942-02047i¥230199212-199703
main90942-02049i¥240199703-199710
main90942-02070i¥390199309-199601
sub90942-02049¥240
42312BNUT(FOR REAR AXLE SHAFT LH)
main90179-20017i¥410199212-199710
42312EBOLT, HUB(FOR REAR AXLE LH)
main90942-02047i¥230199212-199703
main90942-02049i¥240199703-199710
main90942-02070i¥390199309-199601
sub90942-02049¥240
42403DRUM SUB-ASSY, REAR BRAKE
main42431-05010i199308-199710
main42431-20190i¥10,300199212-199412
42409ABEARING SUB-ASSY, REAR AXLE, RH
main42409-05010i199308-199710
main42409-20010i¥16,100199212-199601
42409BBEARING SUB-ASSY, REAR AXLE, LH
main42409-05010i199308-199710
main42409-20010i¥16,100199212-199601
42409CBOLT (FOR REAR AXLE BEARING RH)
main90105-10124i¥200199212-199710
42409DBOLT (FOR REAR AXLE BEARING LH)
main90105-10124i¥200199212-199710
42409ERING, O (FOR REAR AXLE BEARING RH)
main90301-63003i¥350199212-199710
sub90301-63006¥350
42409FRING, O (FOR REAR AXLE BEARING LH)
main90301-63003i¥350199212-199710
sub90301-63006¥350
42410HUB & BEARING ASSY, REAR AXLE, RH
main42410-05010i199212-199710
42431DISC, REAR
42440HUB & BEARING ASSY, REAR AXLE, LH
main42410-05010i199212-199710
42450HUB & BEARING ASSY, REAR AXLE
main42450-05010i199212-199602
main42450-05011i199602-199710
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

16 parts on this diagram · 1 diagram in section
