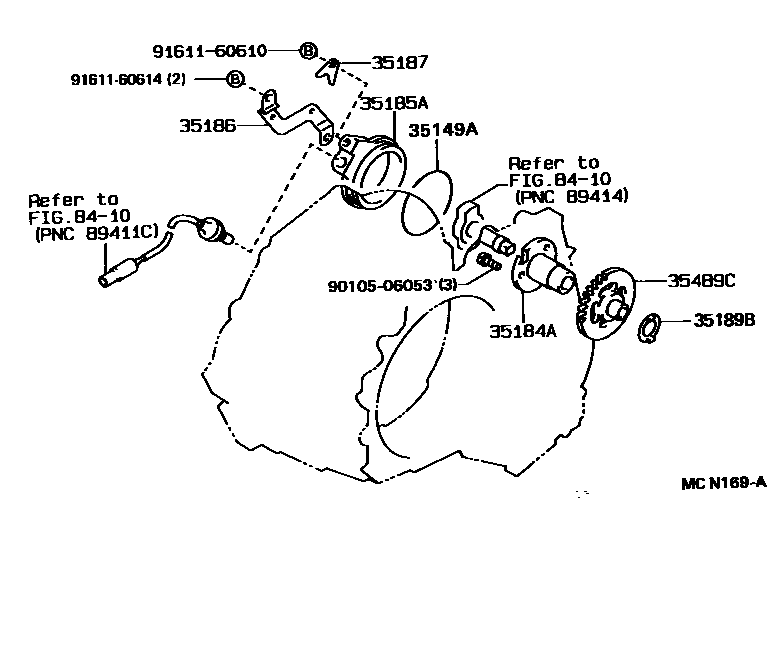

REAR OIL PUMP & GOVERNOR (ATM)

0001 1A240E,A241E 0004 1A241E

35149COVER, GOVERNOR

main35149-20010iST191..UKP..ATM199405-199710

35149ARING, O (FOR GOVERNOR COVER)

main90301-68001iST191..UKP..ATM199212-199710

35184AADAPTER, SENSOR ROTOR

main35184-12010iST191..UKP..ATM199212-199405

35185ACOVER, SPEED SENSOR

main35185-12010iST191..UKP..ATM199212-199405

35186BRACKET, SPEED SENSOR COVER

main35186-12010iST191..UKP..ATM199212-199405

35187PLATE, SPEED SENSOR LOCK

main35187-12010iST191..UKP..ATM199212-199405

35189BWASHER, GOVERNOR THRUST, NO.2

main35189-12010iST191..UKP..ATM199212-199405

35489CGEAR, GOVERNOR DRIVEN

main35489-12010iST191..UKP..ATM199212-199405

8410

9010506053

main90105-06053

9161160610

main91611-60610

9161160614

main91611-60614

12 parts on this diagram · 2 diagrams in section
