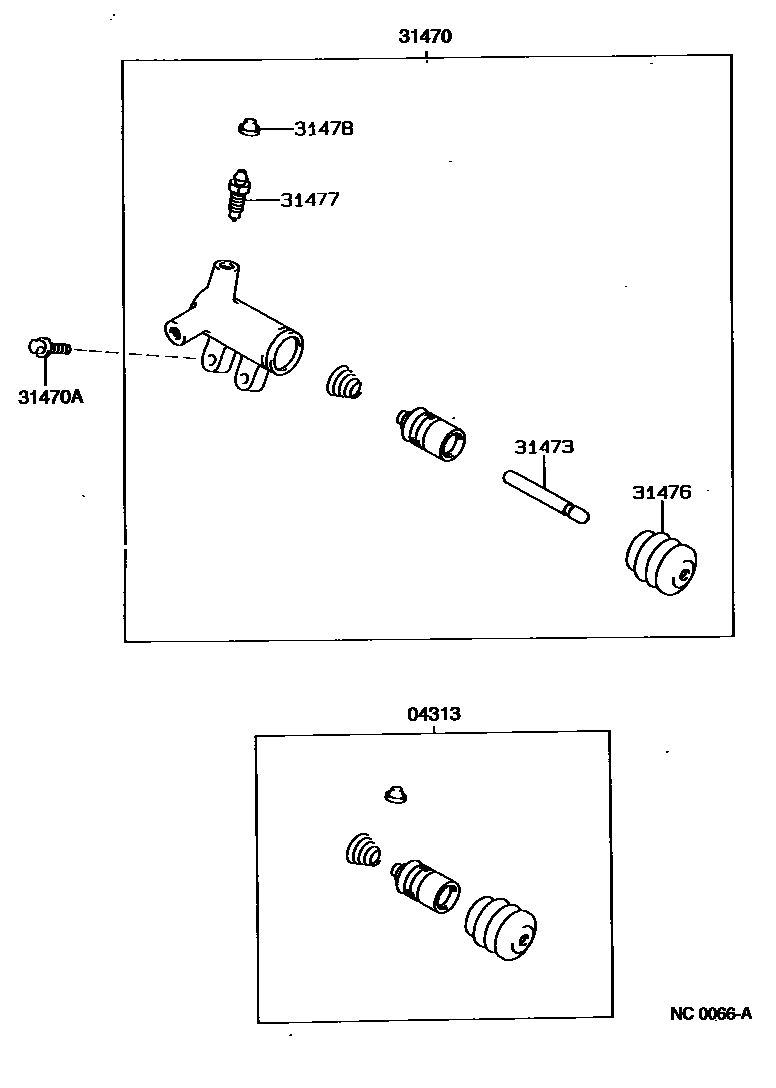

CLUTCH RELEASE CYLINDER

0001 1C51,C52,C57 0002 1S50,S54

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iAT190,ST191..UKP..MTM¥800199212-199402

main04313-17020iCT190,ST191..UKP..MTM¥990199410-199710

main04313-22030iAT19#..UKP..MTM¥860199308-199710

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12092iAT190..UKP..MTM¥7,100199212-199308

sub31470-12093¥7,300

main31470-12093iAT19#..UKP..MTM¥7,300199308-199710

main31470-20210iCT190,ST191..UKP..MTM¥9,500199410-199710

main31470-32032iST191..UKP..MTM¥7,400199212-199412

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT19#..UKP..MTM¥170199212-199710

*8-1.25PX22-17.1

main91611-60825iCT190,ST191..UKP..MTM¥140199212-199710

*8-1.25PX25-25

sub91611-B0825¥160

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iCT190,ST191..UKP..MTM¥720199402-199710

main31473-32010iAT190,ST191..UKP..MTM¥450199212-199710

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT19#,CT190,ST191..UKP..MTM¥230199212-199710

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAT19#,CT190,ST191..UKP..MTM¥200199212-199710

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT19#,CT190,ST191..UKP..MTM¥160199212-199710

7 parts on this diagram · 2 diagrams in section
