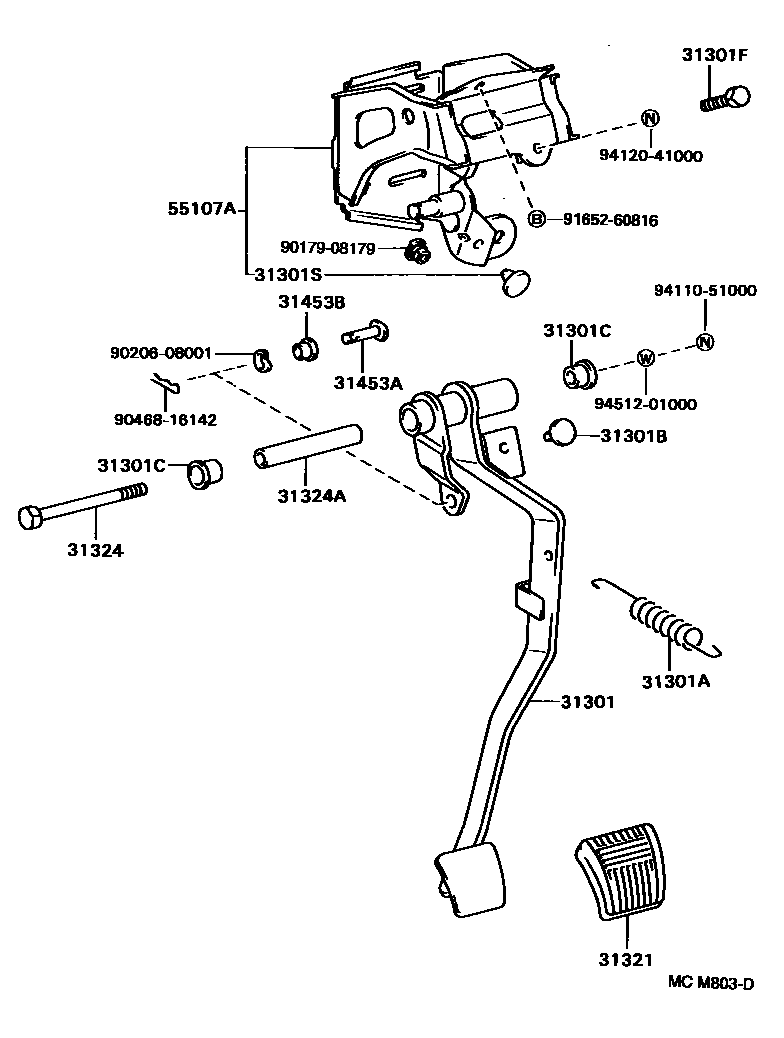

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1TURNOVER TYPE 0004 1 0006 1TURNOVER TYPE 0007 1 0008 1 0009 1 0010 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-05010iAT190,CT190..UKP..RHD..MTM199308-199710

main31301-05020iAT19#,CT190,ST191..UKP..LHD..MTM199308-199710

main31301-05030iST191..UKP..RHD..MTM199308-199501

TURNOVER TYPE

main31301-05040iST191..UKP..LHD..MTM199308-199501

TURNOVER TYPE

main31301-20460iAT19#..UKP..RHD..MTM199212-199501

sub31301-20490

main31301-20470iAT19#..UKP..LHD..MTM199212-199501

sub31301-20480

main31301-20480iST191..UKP..LHD..MTM199212-199312

main31301-20480iST191..UKP..LHD..MTM199312-199501

TURNOVER TYPE

main31301-20490iST191..UKP..RHD..MTM199312-199501

TURNOVER TYPE

main31301-20490iST191..UKP..RHD..MTM199212-199312

31301ASPRING(FOR CLUTCH PEDAL)

main90508-32038iAT190,CT190..UKP..LHD..MTM199212-199710

main90905-07002iAT190,CT190..UKP..RHD..MTM199212-199710

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06032iAT190,ST191..UKP..MTM199212-199412

sub90541-06036

main90541-06036iCT190,ST191..UKP..MTM199312-199710

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT19#,CT190,ST191..UKP..MTM199212-199710

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT19#,CT190,ST191..UKP..MTM199212-199710

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06032iAT190,ST191..UKP..LHD..MTM199212-199410

sub90541-06036

main90541-06036iAT190,ST191..UKP..RHD..MTM199212-199710

31321PAD, CLUTCH PEDAL

main31321-14020iAT19#,CT190,ST191..UKP..MTM199212-199710

31324SHAFT, CLUTCH PEDAL

main90101-10100iAT19#,CT190,ST191..UKP..RHD..MTM199212-199710

main90101-10164iAT19#,CT190,ST191..UKP..LHD..MTM199212-199710

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT19#,CT190,ST191..UKP..RHD..MTM199212-199710

main90387-10105iAT19#,CT190,ST191..UKP..LHD..MTM199212-199710

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT19#,CT190,ST191..UKP..MTM199212-199710

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT19#,CT190,ST191..UKP..MTM199212-199710

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-05010iAT19#,CT190,ST191..UKP..RHD..MTM199308-199710

main55107-05020iST191..UKP..RHD..MTM199308-199412

main55107-05030iAT19#,CT190,ST191..UKP..LHD..MTM199308-199710

main55107-20350iAT190,ST191..UKP..LHD..MTM199212-199312

main55107-20360iAT190..UKP..RHD..MTM199212-199312

sub55107-21030

main55107-20370iST191..UKP..RHD..MTM199212-199412

sub55107-20380

9017908179

main90179-08179

9020608001

main90206-08001

9046816142

main90468-16142

9165260816

main91652-60816

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

19 parts on this diagram · 8 diagrams in section
