EPC Data

CLUTCH & RELEASE FORK

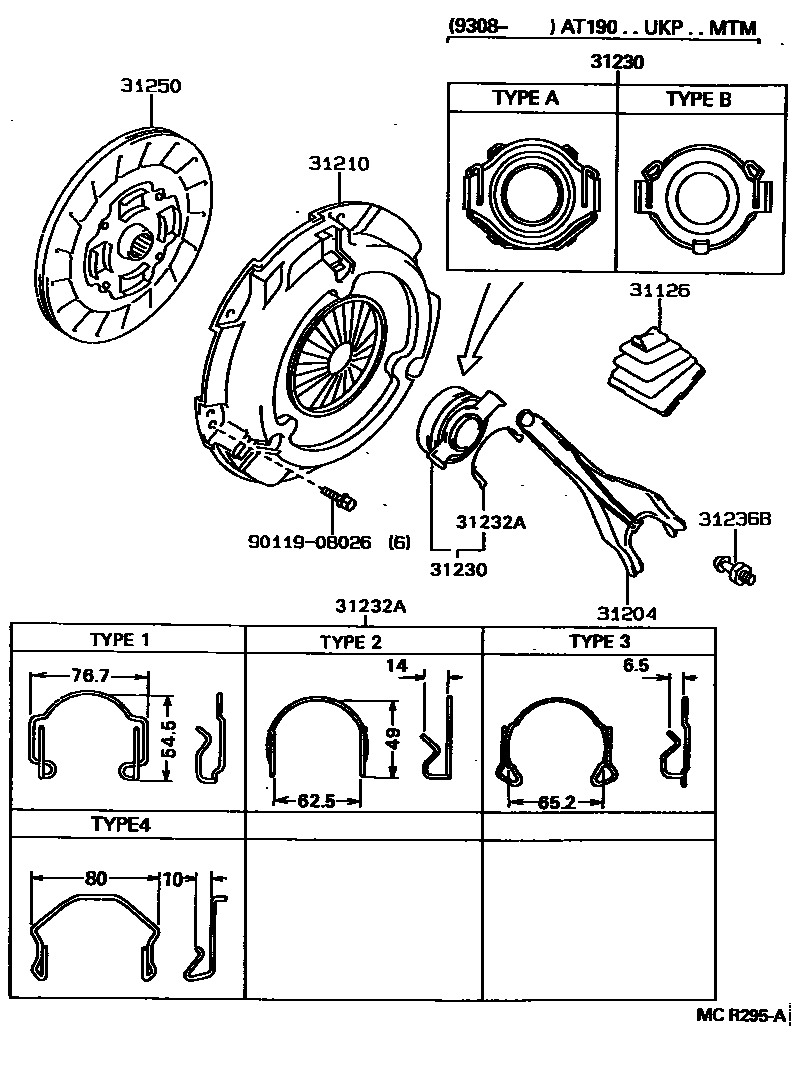

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12051i199212-199710
main31126-32010i199212-199710
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-17010i199212-199710
main31204-20100i199212-199710
31210COVER ASSY, CLUTCH
main31210-05010i199308-199606
sub31210-05011
main31210-05011i199606-199710
sub31210-05012
main31210-05020i199410-199610
sub31210-05021
main31210-05021i199610-199710
sub31210-05022
main31210-12200i199212-199503
sub31210-12201
main31210-12201i199503-199507
AISIN
sub31210-52050
main31210-32130i199212-199507
sub31210-33030
31230BEARING ASSY, CLUTCH RELEASE
main31230-05010i199308-199710
sub31230-05011
main31230-05020i199410-199710
sub31230-05021
main31230-12170i199212-199507
sub31230-12171
main31230-32060i199212-199412
31232ACLIP, RELEASE BEARING HUB
main31232-05010i199308-199710
main31232-12050i199212-199308
main31232-12060i199212-199308
main31232-12070i199212-199507
main31232-20020i199212-199412
main31232-32050i199212-199507
31236BSUPPORT, RELEASE FORK
main31236-12020i199212-199710
main31236-32010i199212-199710
31250DISC ASSY, CLUTCH
main31250-05010i199308-199709
sub31250-05011
main31250-05011i199709-199710
sub31250-05012
main31250-05020i199412-199710
sub31250-05021
main31250-05030i199410-199710
sub31250-05040
main31250-12310i199212-199505
sub31250-12380
main31250-12380i199505-199507
AISIN
sub31250-12370
main31250-17040i199212-199505
sub31250-20250
main31250-20250i199505-199507
AISIN
sub31250-20251
main31250-32100i199410-199507
sub31250-32101
9011908026
main90119-08026

8 parts on this diagram · 2 diagrams in section
