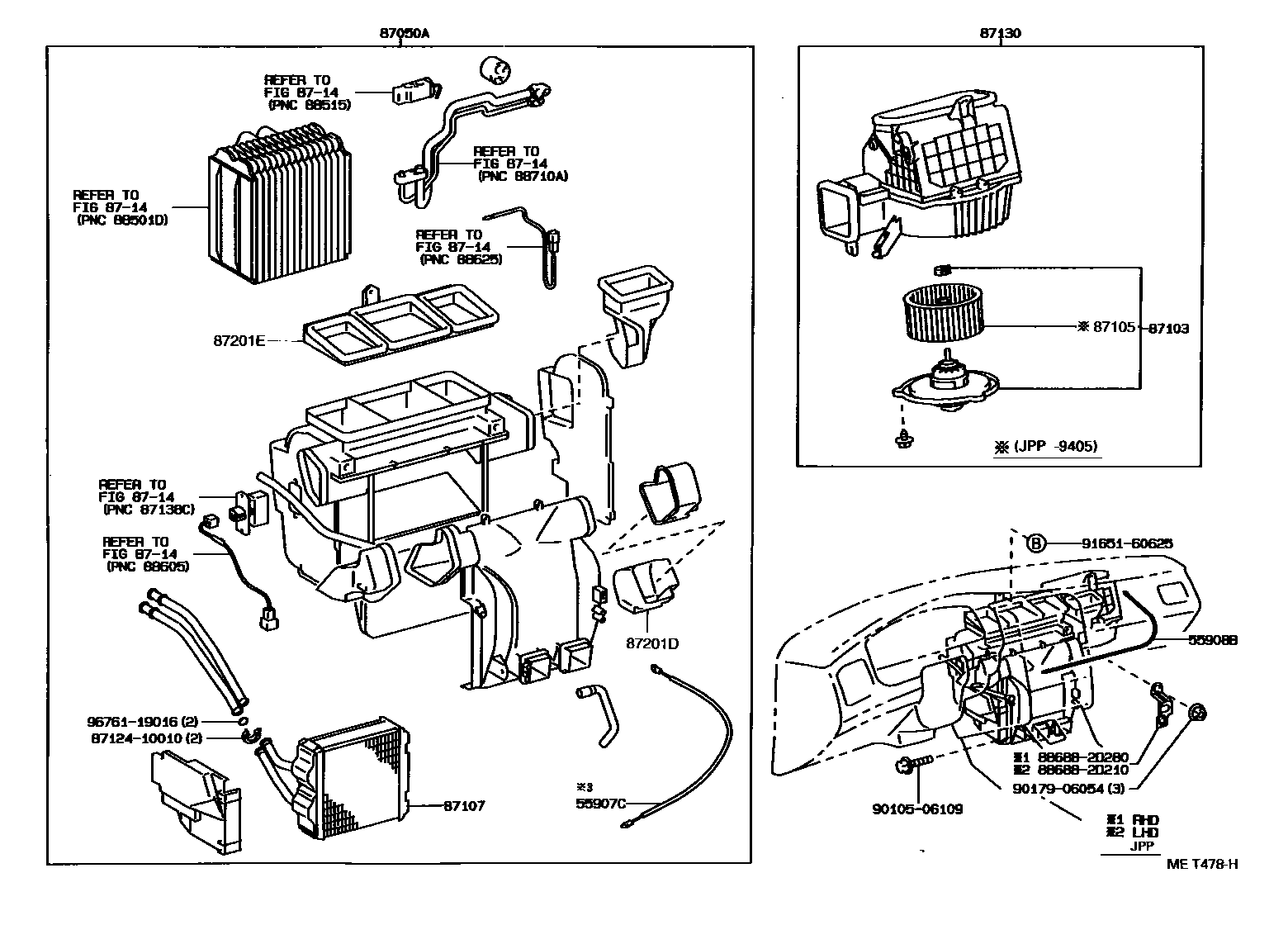

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

55907CCABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20300iAT190,CT190,ST191..JPP..RHD¥930199202-199601

55908BCABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20170iAT190,CT190,ST191..JPP199202-199601

87050ARADIATOR ASSY, AIR CONDITIONER

main87050-20160iAT190,CT190,ST191..JPP..RHD¥126,000199202-199601

MAKER OPTION

main87050-20170iAT190,CT190,ST191..JPP..RHD¥126,000199202-199601

main87050-20220iST191..JPP..LHD¥126,000199202-199305

NORWAY SPEC & MAKER OPT OR SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT

sub87050-20221¥126,000

main87050-20220iST191..JPP..LHD¥126,000199202-199305

NORWAY SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT

sub87050-20221¥126,000

main87050-20221iCT190..JPP..LHD;AT190..JPP..LHD..ATM;AT190..JPP..LHD..LB..XL;AT190..JPP..LHD..MTM..GL¥126,000199305-199601

NORWAY SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT

main87050-20221iST191..JPP..LHD¥126,000199305-199601

NORWAY SPEC & MAKER OPT OR SWEDEN SPEC & MAKER OPT OR FINLAND SPEC & MAKER OPT

main87050-20230iST191..JPP..LHD¥126,000199202-199305

NORWAY SPEC OR FINLAND SPEC

sub87050-20231¥126,000

main87050-20231iCT190..JPP..LHD;AT190..JPP..LHD..ATM;AT190..JPP..LHD..LB..XL;AT190..JPP..LHD..MTM..GL¥126,000199305-199601

NORWAY SPEC OR FINLAND SPEC

main87050-20250iAT190,CT190,ST191..JPP..LHD¥126,000199202-199305

MAKER OPTION

sub87050-20251¥126,000

main87050-20251iAT190,CT190,ST191..JPP..LHD¥126,000199305-199601

MAKER OPTION

main87050-20260iAT190..JPP..LHD..MTM..XL¥126,000199202-199305

DEALER OPTION

sub87050-20261¥126,000

main87050-20261iAT190..JPP..LHD..MTM..XL¥126,000199305-199402

DEALER OPTION

main87050-20261iAT190,CT190,ST191..JPP..LHD¥126,000199305-199601

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20080iAT190,CT190,ST191..JPP..RHD199202-199504

sub87103-22100

main87103-20090iAT190,CT190,ST191..JPP..LHD199202-199601

main87103-22100iCT190,ST191..JPP..RHD199504-199601

87105FAN SUB-ASSY, HEATER BLOWER

main87105-33010iAT190,CT190,ST191..JPP..RHD199202-199504

sub87103-22100

sub87103-22110

main87105-33020iAT190,CT190,ST191..JPP..LHD199202-199601

sub87103-33021

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-20570iAT190,CT190,ST191..JPP..RHD199202-199404

main87107-20590iAT190,CT190,ST191..JPP..LHD199202-199404

main87107-20640iAT190,CT190,ST191..JPP..RHD199404-199601

main87107-20650iAT190,CT190,ST191..JPP..LHD199404-199601

87130BLOWER ASSY, HEATER, FRONT

main87130-20500iAT190,CT190,ST191..JPP..RHD199202-199601

main87130-20520iAT190,CT190,ST191..JPP..LHD199202-199601

8714

87201DDUCT SUB-ASSY, AIR

main87201-20290iAT190,CT190,ST191..JPP..RHD199202-199601

main87201-20300iAT190,CT190,ST191..JPP..LHD199202-199601

87201EDUCT SUB-ASSY, AIR, NO.2

main87201-20400iCT190,ST191..JPP..RHD199501-199601

main87201-20410iAT190,CT190,ST191..JPP..LHD199501-199601

8712410010CLAMP, HEATER

main87124-10010

886882D210BRACKET, COOLER DIAPHRAGM

main88688-2D210

886882D280BRACKET, COOLER DIAPHRAGM

main88688-2D280

9010506109

main90105-06109¥160

9017906054

main90179-06054¥100

9165160625

main91651-60625¥160

9676119016

main96761-19016¥160

17 parts on this diagram · 1 diagram in section
