ANTENNA

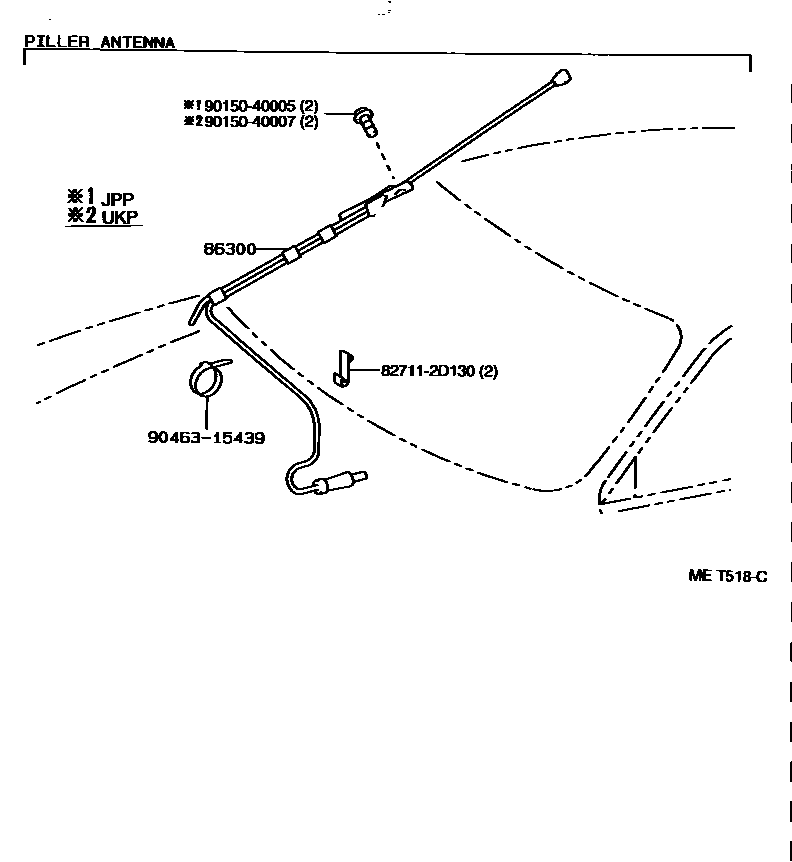

0001 1PILLER ANTENNA 0002 1MOTOR ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-20880iAT190,CT190,ST191..JPP¥4,900199202-199305

sub86300-20881¥4,910

main86300-20881iAT190,CT190,ST191..JPP¥4,910199305-199601

main86300-2B040iAT190,ST191..JPP..SED..(GL,GT)¥30,900199202-199402

4 SPEAKER OR 2 SPEAKER

main86300-2B040iAT190,CT190..JPP..SED..XL¥30,900199202-199402

4 SPEAKER OR 6 SPEAKER

main86300-2B040iAT190,CT190,ST191..JPP..SED¥30,900199402-199601

MOTOR ANTENNA

main86300-2B050iAT190,CT190,ST191..JPP..LB¥30,900199202-199601

MOTOR ANTENNA

827112D130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D130¥170

9015040005

main90150-40005¥60

9015040007

main90150-40007¥120

9046315439

main90463-15439¥200

5 parts on this diagram · 2 diagrams in section
