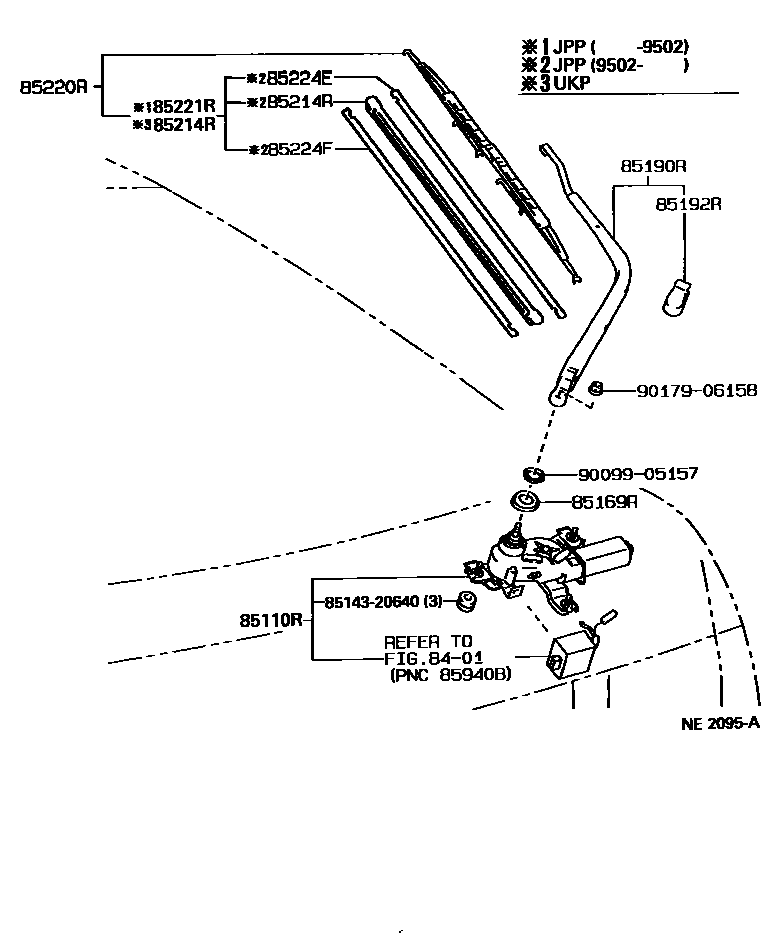

REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-20640iAT190,CT190,ST191..JPP..RHD..LB199202-199311

main85130-20700iAT190,CT190,ST191..JPP..LHD..LB199202-199601

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-20640iAT190,CT190,ST191..JPP..RHD..LB199202-199311

main85134-20700iAT190,CT190,ST191..JPP..LHD..LB199202-199601

85190RARM ASSY, REAR WIPER

main85241-20020iAT190,CT190,ST191..JPP..RHD..LB199202-199311

main85241-20030iAT190,CT190,ST191..JPP..LHD..LB199202-199601

85192RCOVER, REAR WIPER ARM

main85245-20020iAT190,CT190,ST191..JPP..LB199202-199601

85214RRUBBER, REAR WIPER

main85214-20290iAT190,CT190,ST191..JPP..LB199502-199601

sub85214-30260

85220RBLADE ASSY, REAR WIPER

main85242-20020iAT190,CT190,ST191..JPP..RHD..LB199202-199311

sub85242-33020

main85242-20030iAT190,CT190,ST191..JPP..LHD..LB199202-199601

85221RBLADE, REAR WIPER

main85243-20020iAT190,CT190,ST191..JPP..LB199202-199502

sub85214-20290

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-30380iAT190,CT190,ST191..JPP..LB199502-199601

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-30380iAT190,CT190,ST191..JPP..LB199502-199601

8514320640WIRING, WINDSHIELD WIPER MOTOR LEAD

main85143-20640

9009905157

main90099-05157

9017906158

main90179-06158

13 parts on this diagram · 1 diagram in section
