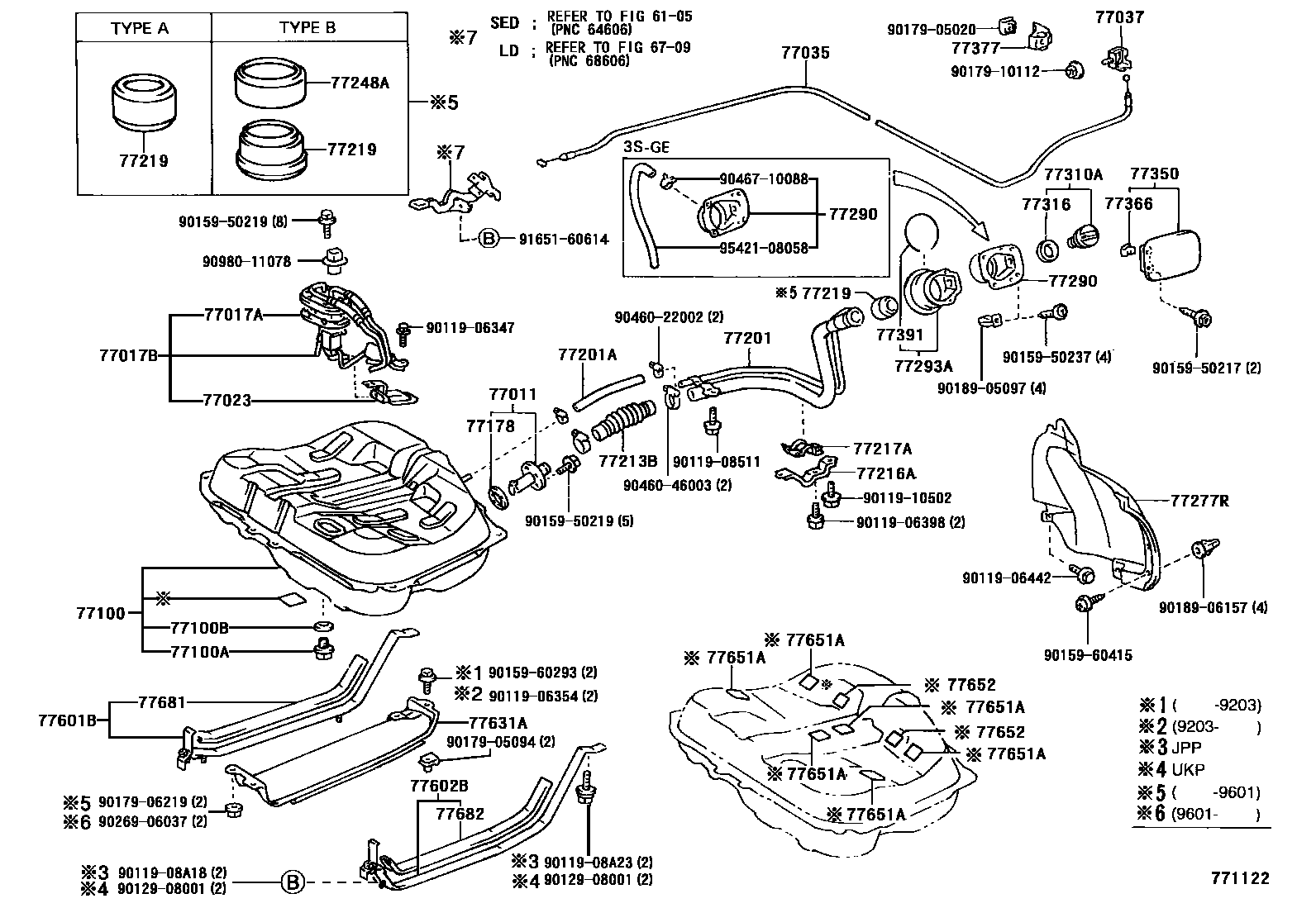

FUEL TANK & TUBE

0001 1 0002 1 0003 1W/O(CHARCOAL CANISTER) 0004 1 0005 1 0006 1 0007 1

6105

6709

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iAT190,CT190,ST191..JPP¥2,410199202-199601

77017AGASKET, FUEL TANK VENT

main77169-60010iCT190..JPP¥1,030199202-199601

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-20160iCT190..JPP¥15,500199202-199601

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCT190..JPP¥870199202-199601

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-20390iAT190,CT190,ST191..JPP..RHD¥2,440199202-199601

main77035-20410iAT190,CT190,ST191..JPP..LHD¥1,960199202-199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-20070iAT190,CT190,ST191..JPP¥1,460199202-199601

77100TANK ASSY, FUEL

main77001-29295iAT190,CT190,ST191..JPP¥46,200199202-199409

sub77001-29296¥46,200

main77001-29295iAT190..JPP..SED..MTM..XL¥46,200199411-199601

*EX-USSR

sub77001-29296¥46,200

main77001-29296iAT190,ST191..JPP¥46,200199409-199601

77100APLUG(FOR FUEL TANK)

main90105-12116iAT190,CT190,ST191..JPP¥110199302-199601

main90341-20004iAT190,CT190,ST191..JPP¥360199202-199302

77100BGASKET(FOR FUEL TANK)

main90430-12245iAT190,CT190,ST191..JPP¥160199302-199601

main90430-20007iAT190,CT190,ST191..JPP¥220199202-199302

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iAT190,CT190,ST191..JPP¥120199202-199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-20390iCT190..JPP¥11,300199202-199601

main77201-20390iAT190..JPP..SED..MTM..XL¥11,300199411-199601

*EX-USSR

main77201-20400iAT190,ST191..JPP¥12,200199202-199601

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22024iAT190,CT190,ST191..JPP¥1,220199202-199601

L=385

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-18010iAT190,CT190,ST191..JPP¥4,460199202-199601

L=230

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-20100iAT190,CT190,ST191..JPP¥1,290199202-199402

main77216-20170iAT190,CT190,ST191..JPP¥940199402-199601

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-20050iAT190,CT190,ST191..JPP¥940199402-199601

main77217-32030iAT190,CT190,ST191..JPP¥750199202-199402

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iAT190,CT190,ST191..JPP¥210199202-199601

TYPE A

77248AHOLDER, FUEL TANK FILLER PIPE COVER

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-20210iAT190,CT190,ST191..JPP¥4,490199202-199601

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-20140iAT190,CT190,ST191..JPP..(GL,XL)¥1,410199202-199601

main77290-20150iST191..JPP..GT¥1,430199202-199601

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-20090iAT190,CT190,ST191..JPP¥1,530199202-199601

77310ACAP ASSY, FUEL TANK

main77310-16011iAT190,ST191..JPP¥2,790199202-199601

sub77310-12140¥2,790

main77310-32011iCT190..JPP¥1,940199202-199601

77316GASKET, FUEL TANK CAP

main77316-16010iAT190,CT190,ST191..JPP¥660199202-199601

77350LID ASSY, FUEL FILLER OPENING

main77350-20210iST191..JPP..RHD..GL¥4,420199208-199305

HONG KONG SPEC

sub77350-21020¥4,440

sub77360-20030¥440

sub77377-20060¥920

sub90179-05020¥140

main77350-20220iAT190,CT190,ST191..JPP¥4,690199202-199601

main77350-21020iST191..JPP..RHD..GL¥4,440199305-199601

HONG KONG SPEC

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-12030iAT190,CT190,ST191..JPP¥170199202-199402

main77366-35010iAT190,CT190,ST191..JPP¥130199402-199601

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20060iST191..JPP..RHD..GL¥920199402-199601

HONG KONG SPEC

77391RING, FUEL INLET BOX

main77391-20020iAT190,CT190,ST191..JPP¥320199202-199601

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-20090iAT190,CT190,ST191..JPP¥2,910199202-199601

sub77601-20220¥2,920

sub90269-03067¥60

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-20140iAT190,CT190,ST191..JPP¥2,930199202-199601

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-20070iAT190,CT190,ST191..JPP¥4,330199202-199601

sub77631-20090¥4,560

77651ACUSHION, FUEL TANK, NO.1

main77651-32050iAT190,CT190,ST191..JPP¥790199202-199601

77652CUSHION, FUEL TANK, NO.1

77681SEAT, FUEL TANK BAND, RH

main77681-32040iAT190,CT190,ST191..JPP¥2,090199202-199305

sub77681-32060¥1,900

main77681-32060iAT190,CT190,ST191..JPP¥1,900199411-199601

main77681-32070iAT190,CT190,ST191..JPP¥1,640199305-199411

sub77681-32060¥1,900

77682SEAT, FUEL TANK BAND, LH

main77681-32040iAT190,CT190,ST191..JPP¥2,090199202-199411

sub77681-32060¥1,900

main77681-32060iAT190,CT190,ST191..JPP¥1,900199411-199601

9011906347

main90119-06347¥80

9011906354

main90119-06354¥120

9011906398

main90119-06398¥70

9011906442

main90119-06442¥120

9011908511

main90119-08511¥340

9011908A18

main90119-08A18¥180

9011908A23

main90119-08A23¥160

9011910502

main90119-10502¥150

9012908001

main90129-08001¥110

9015950217

main90159-50217¥70

9015950219

main90159-50219¥70

9015950237

main90159-50237¥90

9015960293

main90159-60293¥120

9015960415

main90159-60415¥100

9017905020

main90179-05020¥140

9017905094

main90179-05094¥120

9017906219

main90179-06219¥70

9017910112

main90179-10112¥130

9018905097

main90189-05097¥80

9018906157

main90189-06157¥80

9026906037

main90269-06037

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9046710088

main90467-10088¥140

9098011078

main90980-11078¥300

9165160614

main91651-60614¥70

9542108058

main95421-08058¥110
