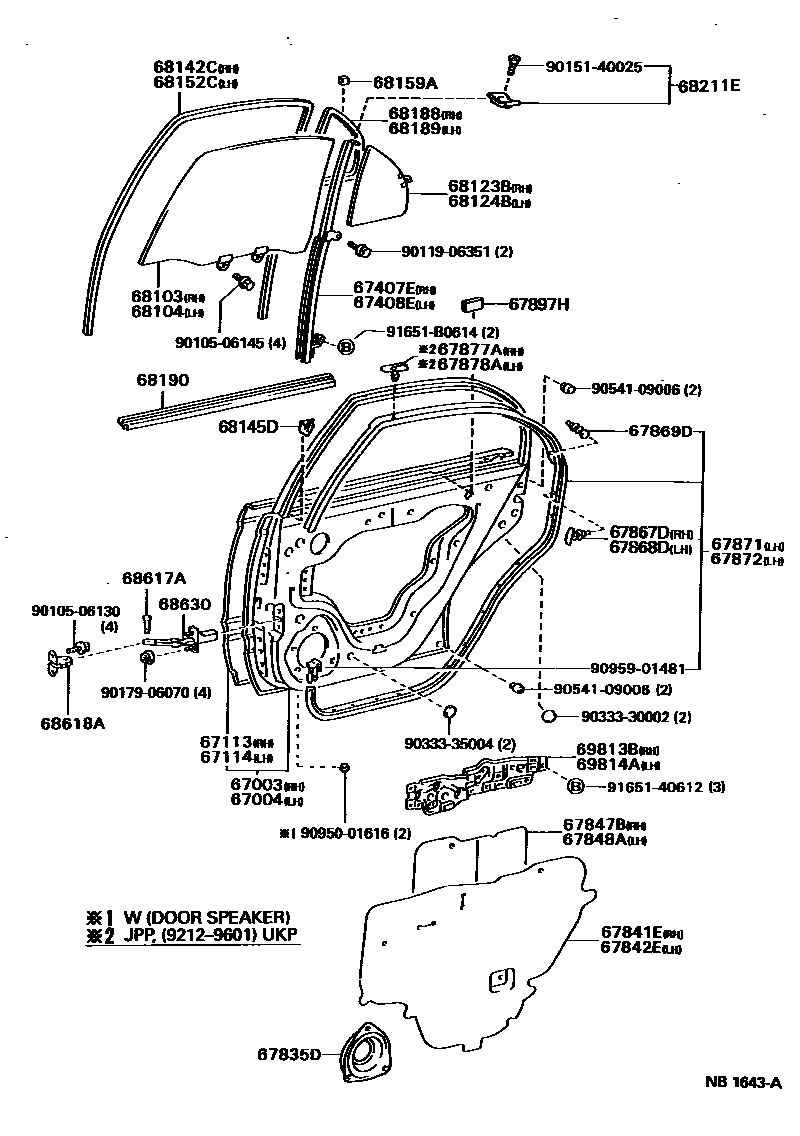

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20650iAT190,CT190,ST191..JPP..SED¥60,900199202-199508

sub67003-20652¥61,000

sub90189-05027¥70

sub90189-06203¥70

main67003-20652iAT190,CT190,ST191..JPP..SED¥61,000199508-199601

main67003-20660iAT190,CT190,ST191..JPP..LB¥60,900199202-199508

sub67003-20661¥60,900

sub90189-05027¥70

sub90189-06203¥70

main67003-20661iAT190,CT190,ST191..JPP..LB¥60,900199508-199601

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20660iAT190,CT190,ST191..JPP..SED¥60,900199202-199508

sub67004-20662¥61,000

sub90189-05027¥70

sub90189-06203¥70

main67004-20662iAT190,CT190,ST191..JPP..SED¥61,000199508-199601

main67004-20670iAT190,CT190,ST191..JPP..LB¥60,900199202-199508

sub67004-20671¥60,900

sub90189-05027¥70

sub90189-06203¥70

main67004-20671iAT190,CT190,ST191..JPP..LB¥60,900199508-199601

67113PANEL, REAR DOOR, OUTER RH

main67113-20210iAT190,CT190,ST191..JPP¥24,700199202-199601

67114PANEL, REAR DOOR, OUTER LH

main67114-20210iAT190,CT190,ST191..JPP¥24,700199202-199601

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-20200iAT190,CT190,ST191..JPP..SED¥4,130199202-199601

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-20190iAT190,CT190,ST191..JPP..SED¥4,130199202-199601

67835DCOVER, REAR DOOR SERVICE HOLE, NO.3 RH

main67835-20060iAT190,CT190,ST191..JPP¥2,470199202-199601

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67805-20040iAT190,CT190..JPP..RHD..XL¥3,310199202-199304

W(DOOR SPEAKER)

sub67805-20050¥1,220

main67805-20050iAT190,CT190,ST191..JPP¥1,220199202-199310

sub67841-20340¥880

main67841-20340iAT190,CT190,ST191..JPP¥880199310-199601

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67806-20030iAT190,CT190..JPP..XL¥3,310199202-199304

W(DOOR SPEAKER)

sub67806-20040¥1,220

main67806-20040iAT190,CT190,ST191..JPP¥1,220199202-199310

sub67841-20340¥880

main67841-20340iAT190,CT190,ST191..JPP¥880199310-199601

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-20060iAT190,CT190,ST191..JPP¥920199202-199601

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-20060iAT190,CT190,ST191..JPP¥920199202-199601

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iAT190,CT190,ST191..JPP¥100199504-199601

main67868-20050iAT190,CT190,ST191..JPP..SED¥180199202-199504

sub67868-20060¥180

main67868-20060iAT190,CT190,ST191..JPP..LB¥180199202-199504

sub67867-12150¥100

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iAT190,CT190,ST191..JPP¥100199504-199601

main67868-20050iAT190,CT190,ST191..JPP..SED¥180199202-199504

sub67868-20060¥180

main67868-20060iAT190,CT190,ST191..JPP..LB¥180199202-199504

sub67867-12150¥100

67869DCLIP, DOOR WEATHERSTRIP

main67869-12020iAT190,CT190,ST191..JPP¥200199202-199601

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20280iAT190,CT190,ST191..JPP..SED¥6,300199202-199601

main67871-20290iAT190,CT190,ST191..JPP..LB¥5,200199202-199601

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20280iAT190,CT190,ST191..JPP..SED¥6,300199202-199601

main67872-20290iAT190,CT190,ST191..JPP..LB¥5,200199202-199601

67877ARETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, RH

main67877-20030iAT190,CT190,ST191..JPP¥180199202-199301

67878ARETAINER, REAR DOOR GLASS FRONT WEATHERSTRIP, LH

main67877-20030iAT190,CT190,ST191..JPP¥180199202-199301

67897HCUSHION, REAR DOOR

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-20170iAT190,CT190,ST191..JPP..SED¥18,800199202-199601

*TEM,T=3.5,BLUE

main68103-20210iAT190,CT190,ST191..JPP..LB¥21,500199202-199601

*TEM,T=3.5,BLUE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-20170iAT190,CT190,ST191..JPP..SED¥18,800199202-199601

*TEM,T=3.5,BLUE

main68104-20210iAT190,CT190,ST191..JPP..LB¥21,500199202-199601

*TEM,T=3.5,BLUE

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-20560iAT190,CT190,ST191..JPP..SED¥7,100199202-199601

*TEM,T=3.1,BLUE

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-20480iAT190,CT190,ST191..JPP..SED¥7,100199202-199601

*TEM,T=3.1,BLUE

68142CRUN, REAR DOOR GLASS, RH

main68142-20140iAT190,CT190,ST191..JPP..SED¥3,840199202-199601

main68142-20150iAT190,CT190,ST191..JPP..LB¥4,240199202-199601

68145DCUSHION, REAR DOOR WINDOW

68152CRUN, REAR DOOR GLASS, LH

main68152-20080iAT190,CT190,ST191..JPP..SED¥3,840199202-199601

main68152-20090iAT190,CT190,ST191..JPP..LB¥4,240199202-199601

68159APAD, QUARTER WINDOW MOULDING, REAR NO.1

main68159-20020iAT190,CT190,ST191..JPP..SED¥140199202-199601

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20160iAT190,CT190,ST191..JPP..SED¥3,520199202-199601

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-20160iAT190,CT190,ST191..JPP..SED¥3,520199202-199601

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68173-20070iAT190,CT190,ST191..JPP..SED¥3,960199202-199601

RH

main68173-20080iAT190,CT190,ST191..JPP..LB¥3,960199202-199601

RH

main68174-20020iAT190,CT190,ST191..JPP..SED¥3,960199202-199601

LH

main68174-20030iAT190,CT190,ST191..JPP..LB¥3,960199202-199601

LH

68211ECLIP, DOOR GLASS WEATHERSTRIP

main68211-20100iAT190,CT190,ST191..JPP..LB¥330199202-199601

main90904-67016iAT190,CT190,ST191..JPP..SED¥320199202-199601

68617APIN, REAR DOOR CHECK

main68617-20011iAT190,CT190,ST191..JPP¥180199202-199601

main68617-20030iAT190,CT190,ST191..JPP¥300199308-199505

sub68617-20011¥180

68618ABRACKET, REAR DOOR CHECK ARM, LH

main68618-20010iAT190,CT190,ST191..JPP¥340199202-199601

68630CHECK ASSY, REAR DOOR

main68630-20090iAT190,CT190,ST191..JPP¥3,710199202-199311

sub68630-20091¥3,710

main68630-20091iAT190,CT190,ST191..JPP¥3,710199311-199601

69813BPLATE, REAR DOOR WINDOW REGULATOR BASE, RH

main69813-20030iAT190,CT190,ST191..JPP¥2,550199202-199601

sub69813-20070¥2,540

69814APLATE, REAR DOOR WINDOW REGULATOR BASE, LH

main69814-20020iAT190,CT190,ST191..JPP..SED¥2,550199202-199601

sub69814-20040¥2,540

9010506130

main90105-06130¥70

9010506145

main90105-06145¥80

9011906351

main90119-06351¥100

9015140025

main90151-40025¥120

9017906070

main90179-06070¥180

9033330002

main90333-30002¥70

9033335004

main90333-35004¥70

9054109006

main90541-09006¥190

9095001616

main90950-01616¥200

9095901481

main90959-01481¥270

9165140612

main91651-40612¥70

91651B0614

main91651-B0614¥100

48 parts on this diagram · 3 diagrams in section
