PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20020-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199305

BLACK,TRIM2#

sub58387-20021

main58387-20020-C0iST191..JPP..SED..GT199202-199305

BLACK,TRIM2#,8#

sub58387-20021

main58387-20021-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199512

BLACK,TRIM1#,8#

main58387-20021-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199512

BLACK,TRIM1#

main58387-20021-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199305-199402

BLACK,TRIM2#

main58387-20021-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199305-199402

BLACK,TRIM2#,8#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20170iAT190,CT190,ST191..JPP..SED199202-199402

main58703-20190iAT190,CT190,ST191..JPP..SED199402-199601

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-10018iAT190,CT190,ST191..JPP..SED199202-199601

64271GBOARD, ROOM PARTITION, RH

main64271-20240-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

main64271-20240-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64271-20240-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64271-20240-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

64272BBOARD, ROOM PARTITION, LH

main64272-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64272-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64272-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

main64272-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

64277AMOULDING, ROOM PARTITION TRIM

main64277-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

main64277-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64277-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64277-20040-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B550-B0iAT190,CT190,ST191..JPP..SED199402-199601

SHADOW GRAY,TRIM1#

sub64330-2B550

main64330-2B550-C0iAT190,CT190,ST191..JPP..SED199202-199402

BLACK,TRIM2#

sub64330-2B550

main64330-2B550-J1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199601

DK. BLUE,TRIM8#

sub64330-2B550

main64330-2B570-B0iAT190,CT190..JPP..LHD..SED..XL199402-199601

W(UNITE SEAT),SHADOW GRAY,TRIM1#

sub64330-2B570

main64330-2B570-C0iAT190,CT190..JPP..LHD..SED..XL199202-199402

W(UNITE SEAT),BLACK,TRIM2#

sub64330-2B570

main64330-2B570-J1iAT190,CT190..JPP..LHD..SED..XL199202-199601

W(UNITE SEAT),DK. BLUE,TRIM8#

sub64330-2B570

main64330-2B590-B0iST191..JPP..LHD..SED..ATM199402-199601

MIDDLE EAST SPEC & W(HIGH MOUNT STOP LAMP),SHADOW GRAY,TRIM1#

sub64330-2B590

main64330-2B590-C0iST191..JPP..LHD..SED..ATM199307-199402

MIDDLE EAST SPEC,BLACK,TRIM2#

sub64330-2B590

main64330-2B590-J1iST191..JPP..LHD..SED..ATM199307-199402

MIDDLE EAST SPEC,DK. BLUE,TRIM8#

sub64330-2B590

main64330-2B590-J1iST191..JPP..LHD..SED..ATM199402-199601

MIDDLE EAST SPEC & W(HIGH MOUNT STOP LAMP),DK. BLUE,TRIM8#

sub64330-2B590

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07090-B0iAT190,CT190,ST191..JPP..SED199402-199601

SHADOW GRAY,TRIM1#

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190..JPP..SED..XL199202-199402

BLACK,TRIM2#

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190..JPP..SED..XL199202-199402

BLACK,TRIM2#,8#

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

sub90467-07090

sub90467-07207

main90467-07090-C4iST191..JPP..SED..GT199402-199601

BLACK,TRIM1#,8#

sub90467-07090

sub90467-07207

main90467-07090-J0iAT190,ST191..JPP..SED..GL;AT190,CT190..JPP..LHD..SED..XL199202-199601

DK.BLUE,TRIM8#

sub90467-07090

sub90467-07207

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07056-C0iAT190,CT190,ST191..JPP..SED199202-199402

BLACK,TRIM2#

sub90467-07056

main90467-07056-J0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub90467-07056

main90467-07056-P0iAT190,CT190,ST191..JPP..SED199402-199601

SHADOW GRAY,TRIM1#

sub90467-07056

main90467-07090-B0iAT190,CT190..JPP..LHD..SED..XL199402-199601

FIXED REAR SEAT-*99,SHADOW GRAY,TRIM1#

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190..JPP..LHD..SED..XL199402-199601

FIXED REAR SEAT-*99,BLACK,TRIM1#,8#

sub90467-07090

sub90467-07207

main90467-07090-J0iAT190,CT190..JPP..LHD..SED..XL199402-199601

FIXED REAR SEAT-*99,DK.BLUE,TRIM8#

sub90467-07090

sub90467-07207

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20820-C1iAT190,CT190..JPP..LHD..SED..XL199202-199402

W(REAR BENCH SEAT),BLACK,TRIM2#,8#

sub64711-20820

main64711-20840-C1iST191..JPP..SED..GT199306-199402

BLACK,TRIM2#,8#

main64711-20840-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199306-199402

BLACK,TRIM2#

main64711-20850-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199306

BLACK,TRIM2#,8#

sub64711-20840

main64711-20850-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199306

BLACK,TRIM2#

sub64711-20840

main64711-2B120-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

main64711-2B120-C0iST191..JPP..SED..GT199402-199601

BLACK,TRIM1#

main64711-2B130-C0iAT190,CT190..JPP..LHD..SED..XL199402-199601

W(REAR BENCH SEAT),BLACK,TRIM1#,8#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20450-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64716-20450-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64716-20450-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

main64716-20450-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20280-C1iAT190,CT190..JPP..LHD..SED..XL199202-199305

BLACK,TRIM2#,8#

main64717-20310-C0iAT190,CT190..JPP..LHD..SED..XL199402-199601

BLACK,TRIM1#,8#

main64717-20310-C0iAT190,CT190..JPP..LHD..SED..XL199305-199402

BLACK,TRIM2#,8#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-07090-B0iAT190,CT190..JPP..LHD..SED..XL199402-199601

SHADOW GRAY,TRIM1#,NO.1

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190..JPP..LHD..SED..XL199202-199402

BLACK,TRIM2#,8#,NO.1

sub90467-07090

sub90467-07207

main90467-07090-C4iAT190,CT190..JPP..LHD..SED..XL199402-199601

BLACK,TRIM1#,8#,NO.1

sub90467-07090

sub90467-07207

main90467-07090-J0iAT190,CT190..JPP..LHD..SED..XL199202-199601

DK.BLUE,TRIM8#,NO.1

sub90467-07090

sub90467-07207

main90467-09066-22iAT190,CT190..JPP..LHD..SED..XL199402-199601

BLACK,TRIM1#,8#,NO.2

sub90467-09066

main90467-09066-22iAT190,CT190..JPP..LHD..SED..XL199202-199402

BLACK,TRIM2#,8#,NO.2

sub90467-09066

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-20260-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64721-20260-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64721-20310-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

main64721-20310-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#,NO.2

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,NO.2

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199512

BLACK,TRIM1#,8#,NO.2

main90467-06150-C0iST191..JPP..SED..GT199402-199512

BLACK,TRIM1#,NO.2

main90467-07042-C0iST191..JPP..SED..GT199512-199601

BLACK,TRIM1#,N0.2

sub90467-07042

sub90467-06175

main90467-07042-C0iST191..JPP..SED..GT199512-199601

BLACK,TRIM1#,8#,N0.2

sub90467-07042

sub90467-06175

main90467-08056-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,NO.1

sub90467-08056

main90467-08056-C0iST191..JPP..SED..GT199402-199601

BLACK,TRIM1#,8#,NO.1

sub90467-08056

main90467-08056-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199205-199402

BLACK,TRIM2#,8#,NO.1

sub90467-08056

main90467-08056-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199205-199402

BLACK,TRIM2#,NO.1

sub90467-08056

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-20230-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#,8#

main64722-20230-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

BLACK,TRIM2#

main64722-20230-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#,8#

main64722-20230-C1iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

BLACK,TRIM1#

64770COVER ASSY, SPARE WHEEL

main64770-20190iAT190,CT190,ST191..JPP..SED199202-199601

64777CLAMP, SPARE WHEEL COVER

main64777-32030iAT190,CT190,ST191..JPP..SED199202-199601

64791COVER, BACK DOOR TRIM

main64791-20050-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

COLD AREA SPEC,BLACK,TRIM1#,8#

main64791-20050-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

COLD AREA SPEC,BLACK,TRIM2#,8#

main64791-20050-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

COLD AREA SPEC,BLACK,TRIM2#

main64791-20050-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199601

COLD AREA SPEC,BLACK,TRIM1#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

COLD AREA SPEC,BLACK,TRIM2#,8#

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199202-199402

COLD AREA SPEC,BLACK,TRIM2#

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199512

COLD AREA SPEC,BLACK,TRIM1#,8#

main90467-06150-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199402-199512

COLD AREA SPEC,BLACK,TRIM1#

main90467-07042-C0iST191..JPP..SED..GT199512-199601

COLD AREA SPEC,BLACK,TRIM1#

sub90467-07042

sub90467-06175

main90467-07042-C0iAT190,CT190,ST191..JPP..SED..(GL,XL)199512-199601

COLD AREA SPEC,BLACK,TRIM1#,8#

sub90467-07042

sub90467-06175

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010

9053015004

main90530-15004

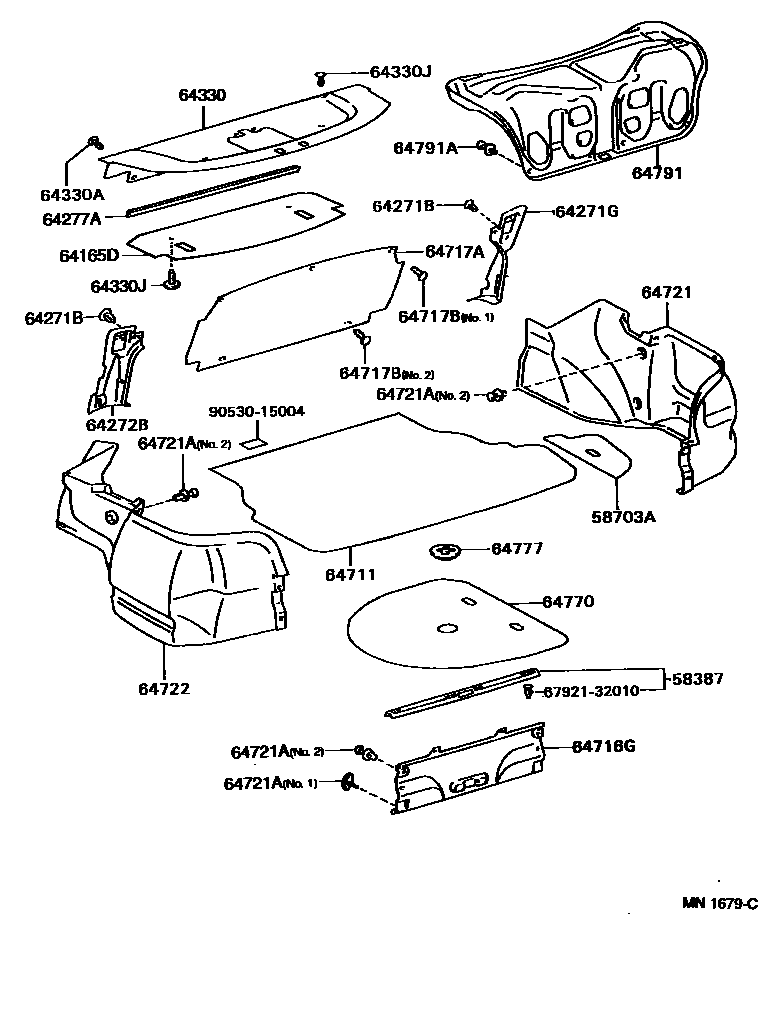

23 parts on this diagram · 1 diagram in section
