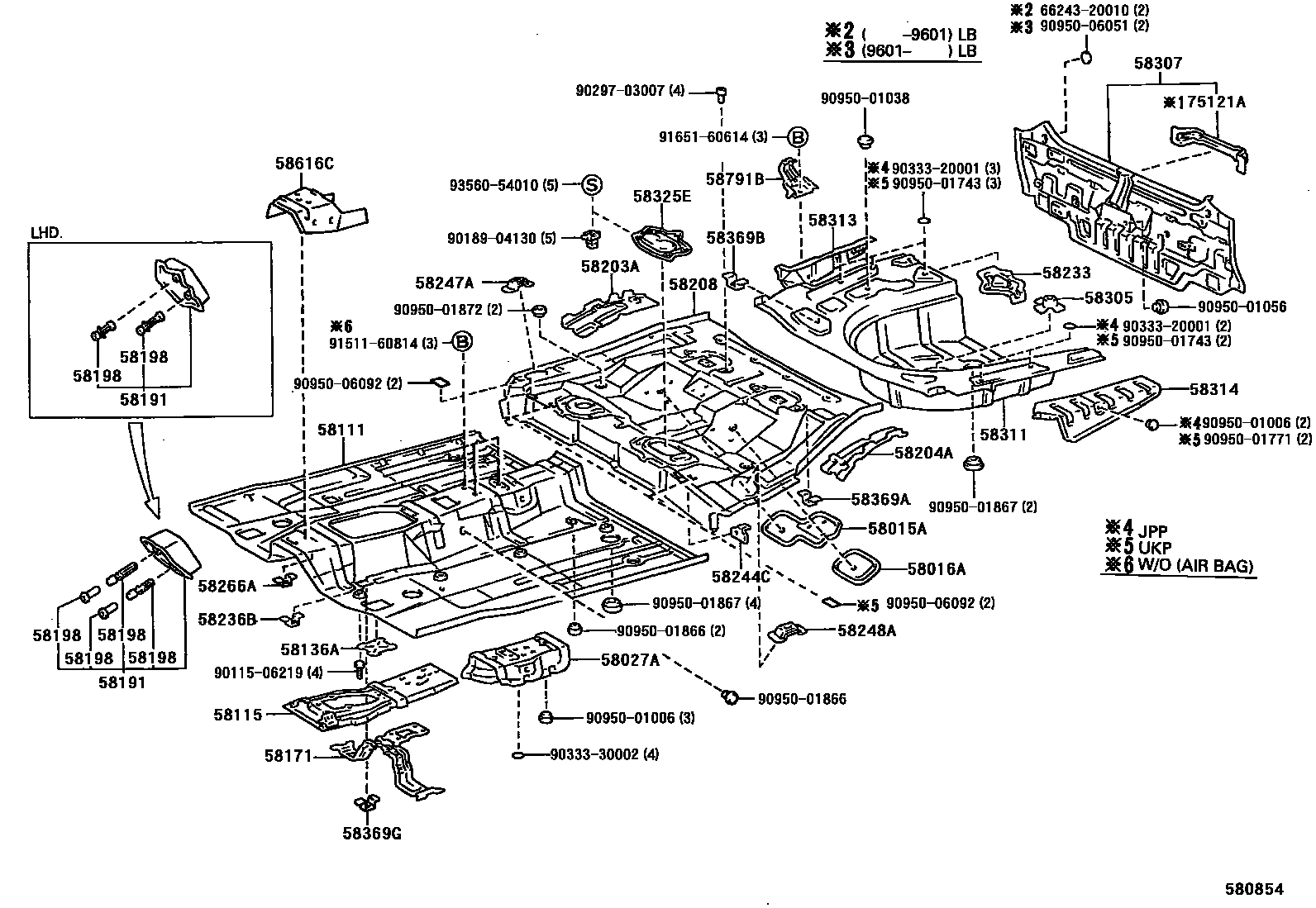

FLOOR PAN & LOWER BACK PANEL
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58111PAN, FRONT FLOOR
sub58111-20190
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
sub58103-20041
sub58103-20042
sub58103-20051
sub58103-20052
58136ACOVER, FRONT FLOOR SERVICE HOLE
RH
LH
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
L=39.3
L=46.6
L=100
L=84
L=28.5
58208PAN, CENTER FLOOR
W(SPLIT SEAT)
58233BRACKET, EXHAUST PIPE MOUNTING
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58266ABRACKET, FUEL TUBE CLAMP
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
HONG KONG SPEC
58311PAN, REAR FLOOR
sub58311-21060
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
58616CPANEL, FRONT FLOOR SILENCER, NO.1
58791BCARRIER, JACK
75121ABRACKET, REAR LICENSE PLATE
HONG KONG SPEC
6624320010PLATE, REAR FENDER SET
main66243-20010
9011506219
main90115-06219
9018904130
main90189-04130
9029703007
main90297-03007
9033320001
main90333-20001
9033330002
main90333-30002
9095001006
main90950-01006
9095001038
main90950-01038
9095001056
main90950-01056
9095001743
main90950-01743
9095001771
main90950-01771
9095001866
main90950-01866
9095001867
main90950-01867
9095001872
main90950-01872
9095006051
main90950-06051
9095006092
main90950-06092
9151160814
main91511-60814
9165160614
main91651-60614
9356054010
main93560-54010
49 parts on this diagram · 1 diagram in section
