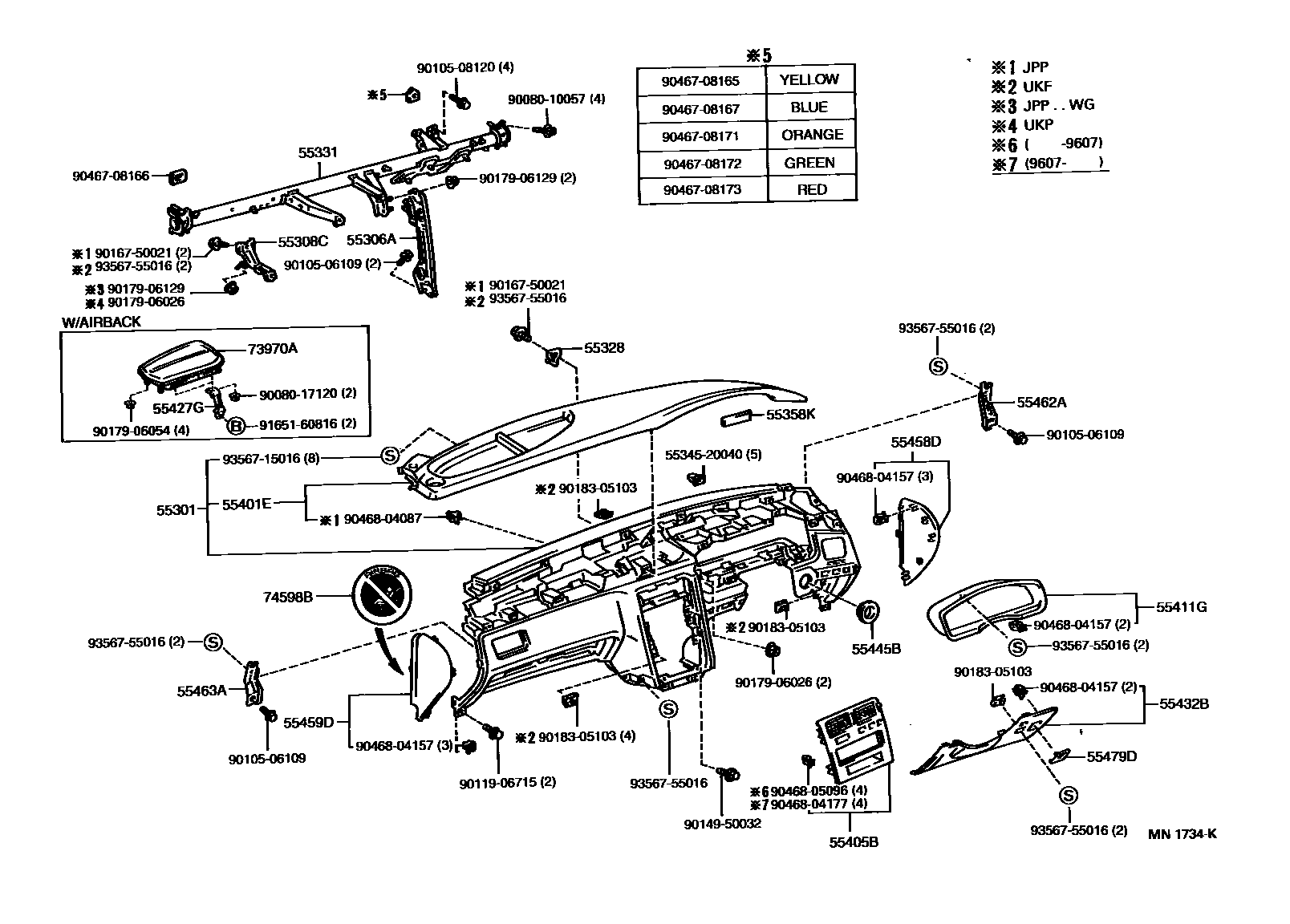

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-20030-B0iAT190,CT190,ST191..JPP..RHD199402-199601

SHADOW GRAY,TRIM1#

sub55300-20031¥79,600

main55300-20030-C0iAT190,CT190,ST191..JPP..RHD199202-199402

BLACK,TRIM2#

sub55300-20031¥79,600

main55300-20030-J0iAT190,CT190,ST191..JPP..RHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55300-20031¥79,600

main55300-20060-B0iAT190,CT190,ST191..JPP..LHD199402-199601

SHADOW GRAY,TRIM1#

sub55300-20060¥79,900

main55300-20060-C0iAT190,CT190,ST191..JPP..LHD199202-199402

BLACK,TRIM2#

sub55300-20060¥79,900

main55300-20060-J0iAT190,CT190,ST191..JPP..LHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55300-20060¥79,900

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20200iAT190,CT190,ST191..JPP..RHD¥2,930199202-199601

main55306-20210iAT190,CT190,ST191..JPP..LHD¥3,250199202-199601

main55306-20280iST191..JPP..LHD;AT190..JPP..LHD..MTM¥4,000199406-199601

GERMANY SPEC OR SWITZERLAND SPEC

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20180iAT190,CT190,ST191..JPP¥1,950199202-199601

55328PIN, INSTRUMENT PANEL, NO.1

main55328-20070iAT190,CT190,ST191..JPP¥390199202-199601

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20150iAT190,CT190,ST191..JPP..RHD¥21,200199202-199601

main55330-20160iAT190,CT190,ST191..JPP..LHD¥21,200199202-199601

55358KCUSHION, INSTRUMENT PANEL, NO.4

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20610-B0iAT190,CT190,ST191..JPP..RHD199402-199601

SHADOW GRAY,TRIM1#

main55401-20610-C0iAT190,CT190,ST191..JPP..RHD199202-199402

BLACK,TRIM2#

main55401-20610-J0iAT190,CT190,ST191..JPP..RHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

main55401-20640-B0iAT190,CT190,ST191..JPP..LHD199402-199601

SHADOW GRAY,TRIM1#

main55401-20640-C0iAT190,CT190,ST191..JPP..LHD199202-199402

BLACK,TRIM2#

main55401-20640-J0iAT190,CT190,ST191..JPP..LHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-20140iAT190,CT190,ST191..JPP..RHD¥10,800199202-199601

main55405-20160iAT190,CT190,ST191..JPP..LHD¥10,800199202-199601

55411GPANEL, INSTRUMENT CLUSTER FINISH, NO.1

main55411-20630iAT190,CT190,ST191..JPP..RHD¥5,900199202-199601

main55411-20640iAT190,CT190,ST191..JPP..LHD¥5,900199202-199601

55427GBRACKET, AIRBAG PASSENGER MOUNTING, NO.1

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20260-B0iAT190,CT190,ST191..JPP..RHD199402-199601

SHADOW GRAY,TRIM1#

sub55432-20260¥8,200

main55432-20260-C0iAT190,CT190,ST191..JPP..RHD199202-199402

BLACK,TRIM2#

sub55432-20260¥8,200

main55432-20260-J0iAT190,CT190,ST191..JPP..RHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55432-20260¥8,200

main55432-20280-B0iAT190,CT190,ST191..JPP..LHD199402-199601

SHADOW GRAY,TRIM1#

sub55432-20280¥8,200

main55432-20280-C0iAT190,CT190,ST191..JPP..LHD199202-199402

BLACK,TRIM2#

sub55432-20280¥8,200

main55432-20280-J0iAT190,CT190,ST191..JPP..LHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55432-20280¥8,200

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20200iAT190,CT190,ST191..JPP¥270199202-199601

55458DCOVER, INSTRUMENT LOWER, RH

main55458-20040-B0iAT190,CT190,ST191..JPP199402-199601

SHADOW GRAY,TRIM1#

main55458-20040-C0iAT190,CT190,ST191..JPP199202-199402

BLACK,TRIM2#

main55458-20040-J0iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

DK.BLUE,TRIM8#

55459DCOVER, INSTRUMENT, LOWER LH

main55459-20040-B0iAT190,CT190,ST191..JPP199402-199601

SHADOW GRAY,TRIM1#

main55459-20040-C0iAT190,CT190,ST191..JPP199202-199402

BLACK,TRIM2#

main55459-20040-J0iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

DK.BLUE,TRIM8#

55462AEXTENSION, INSTRUMENT SAFETY PAD INSERT, RH

main55462-20200iAT190,CT190,ST191..JPP¥470199202-199601

55463AEXTENSION, INSTRUMENT SAFETY PAD INSERT, LH

main55463-20130iAT190,CT190,ST191..JPP¥470199202-199601

55479DGARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER

main55479-20080-B0iAT190,CT190,ST191..JPP..RHD199402-199601

SHADOW GRAY,TRIM1#

sub55479-20080¥1,130

main55479-20080-C0iAT190,CT190,ST191..JPP..RHD199202-199402

BLACK,TRIM2#

sub55479-20080¥1,130

main55479-20080-J0iAT190,CT190,ST191..JPP..RHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55479-20080¥1,130

main55479-20090-B0iAT190,CT190,ST191..JPP..LHD199402-199601

SHADOW GRAY,TRIM1#

sub55479-20090¥1,140

main55479-20090-C0iAT190,CT190,ST191..JPP..LHD199202-199402

BLACK,TRIM2#

sub55479-20090¥1,140

main55479-20090-J0iAT190,CT190,ST191..JPP..LHD..(GL,XL)199202-199601

DK.BLUE,TRIM8#

sub55479-20090¥1,140

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

74598BLABEL, PASSENGER AIRBAG CAUTION

5534520040GARNISH, GLOVE COMPARTMENT, UPPER

main55345-20040¥120

9008010057

main90080-10057¥130

9008017120

main90080-17120¥100

9010506109

main90105-06109¥160

9010508120

main90105-08120¥90

9011906715

main90119-06715¥110

9014950032

main90149-50032¥80

9016750021

main90167-50021¥120

9017906026

main90179-06026¥70

9017906054

main90179-06054¥100

9017906129

main90179-06129¥90

9018305103

main90183-05103¥90

9046708165

main90467-08165¥240

9046708166

main90467-08166¥240

9046708167

main90467-08167¥240

9046708171

main90467-08171¥240

9046708172

main90467-08172¥240

9046708173

main90467-08173¥510

9046804087

main90468-04087¥160

9046804157

main90468-04157¥80

9046804177

main90468-04177¥40

9046805096

main90468-05096¥90

9165160816

main91651-60816¥100

9356715016

main93567-15016¥120

9356755016

main93567-55016¥110

44 parts on this diagram · 4 diagrams in section
