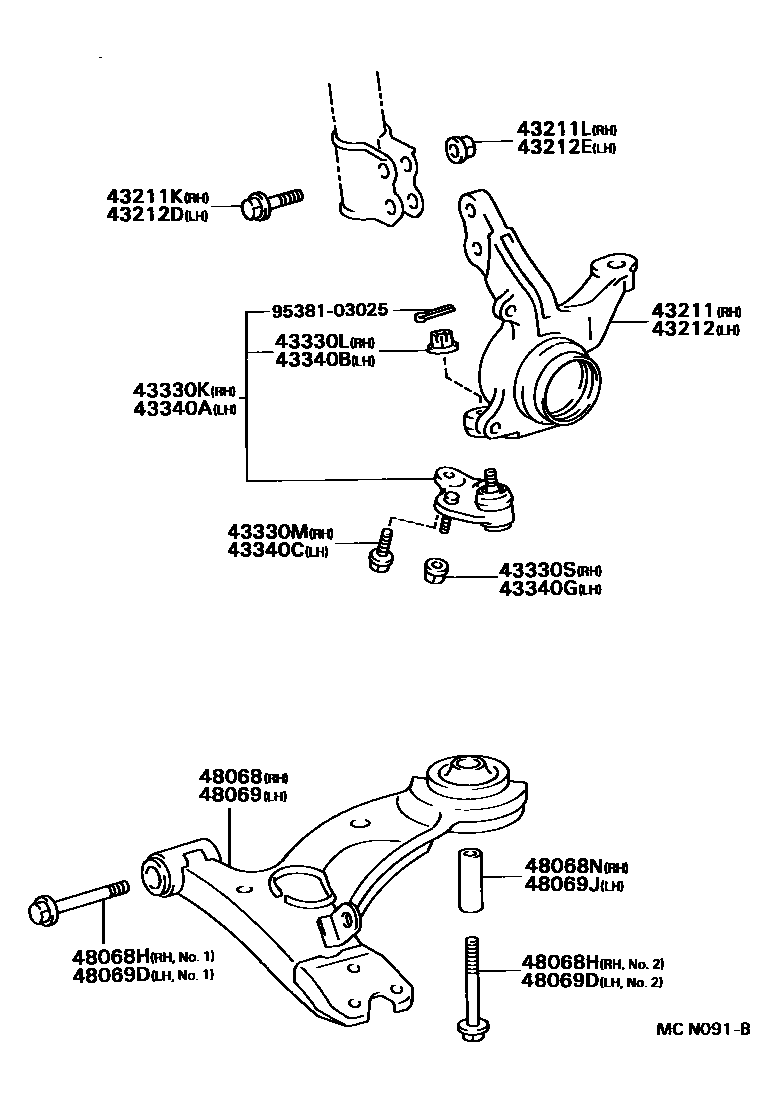

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-20190iAT190..JPP..LHD..XL199202-199501

main43211-20200iAT190..JPP..LHD..XL199202-199209

W(*66)

main43211-20210iAT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL)199202-199501

W(POWER STEERING)

sub43211-20300

main43211-20210iAT190,CT190,ST191..JPP..(GL,XL)199501-199601

sub43211-20300

main43211-20220iAT190..JPP..LHD..XL199202-199506

W(*66)

sub43211-20221

sub90389-16020

main43211-20220iAT190..JPP..LHD..XL199202-199501

W(*66 & POWER STEERING)

sub43211-20221

sub90389-16020

main43211-20221iAT190,CT190,ST191..JPP..(GL,XL)199506-199601

W(*66)

sub43211-20300

main43211-20230iST191..JPP..GT199202-199601

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

OD=15.0

main90105-15004iAT190,CT190,ST191..JPP199202-199601

OD=13.9

main90105-15005iAT190,CT190,ST191..JPP199202-199601

OD=13.3

main90105-15006iAT190,CT190,ST191..JPP199202-199601

OD=12.4

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43212KNUCKLE, STEERING, LH

main43212-20150iAT190..JPP..LHD..XL199202-199501

main43212-20160iAT190..JPP..LHD..XL199202-199209

W(*66)

main43212-20170iAT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL)199202-199501

W(POWER STEERING)

sub43212-20300

main43212-20170iAT190,CT190,ST191..JPP..(GL,XL)199501-199601

sub43212-20300

main43212-20180iAT190..JPP..RHD;AT190..JPP..LHD..GL;CT190,ST191..JPP..(GL,XL)199202-199501

W(*66 & POWER STEERING)

sub43212-20181

sub90389-16020

main43212-20180iAT190..JPP..LHD..XL199202-199506

W(*66)

sub43212-20181

sub90389-16020

main43212-20181iAT190,CT190,ST191..JPP..(GL,XL)199506-199601

W(*66)

sub43212-20300

main43212-20190iST191..JPP..GT199202-199601

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

OD=15.0

main90105-15004iAT190,CT190,ST191..JPP199202-199601

OD=13.9

main90105-15005iAT190,CT190,ST191..JPP199202-199601

OD=13.3

main90105-15006iAT190,CT190,ST191..JPP199202-199601

OD=12.4

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29265iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

sub43330-29375

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12122iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12052iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29265iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

sub43330-29375

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12122iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12052iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20260iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

main48605-12090iST191..JPP..GT199202-199505

sub48605-12200

main48605-12160iST191..JPP..GT199505-199601

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-10327iST191..JPP..GT199202-199601

main90119-14023iAT190,CT190,ST191..JPP199202-199601

ARM NO.1

main90119-14046iAT190,CT190,ST191..JPP199202-199601

ARM NO.2

48068NCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90389-19002iAT190,CT190,ST191..JPP199202-199601

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20260iAT190,CT190,ST191..JPP..(GL,XL)199202-199601

main48606-12080iST191..JPP..GT199202-199505

sub48606-12190

main48606-12150iST191..JPP..GT199505-199601

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-10327iST191..JPP..GT199202-199601

main90119-14023iAT190,CT190,ST191..JPP199202-199601

ARM NO.1

main90119-14046iAT190,CT190,ST191..JPP199202-199601

ARM NO.2

48069JCOLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90389-19002iAT190,CT190,ST191..JPP199202-199601

9538103025

main95381-03025

21 parts on this diagram · 3 diagrams in section
