STEERING WHEEL

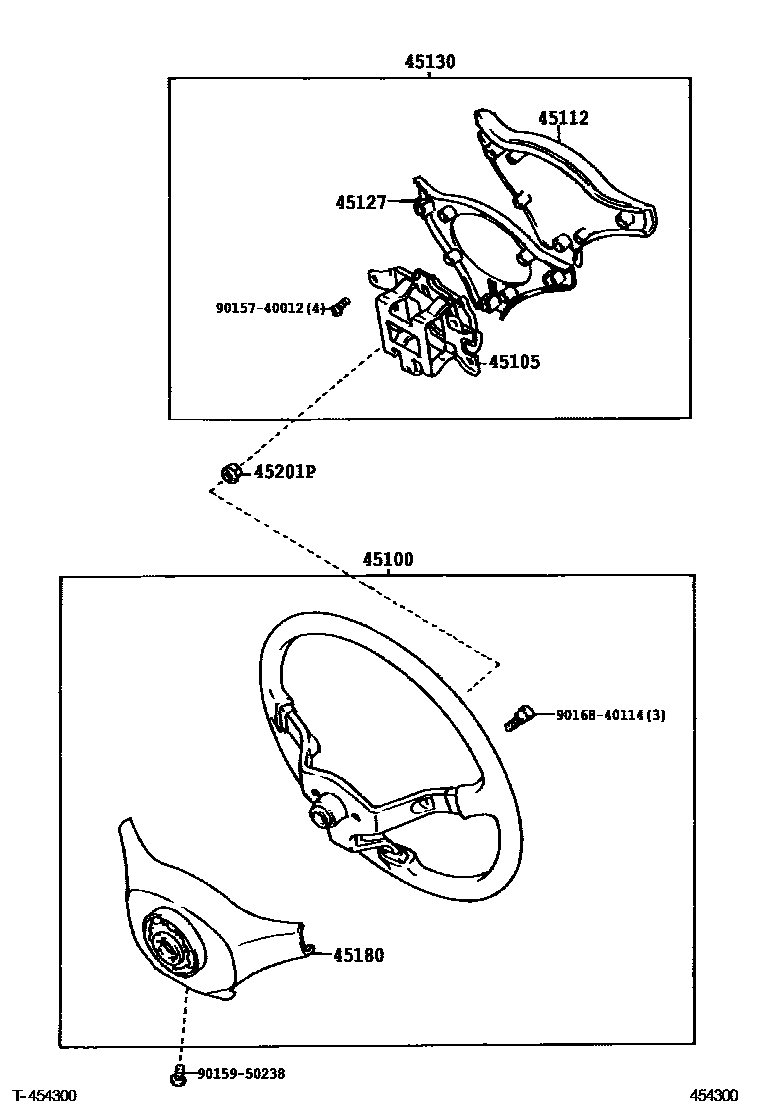

Parts diagram
45100WHEEL ASSY, STEERING
main45100-2B180-C0i199202-199402
3-SPOKE,URETHANE,BLACK,TRIM2#,8#
sub45100-2B180
main45100-2B180-C0i199402-199601
3-SPOKE,URETHANE,BLACK,TRIM1#,8#
sub45100-2B180
main45100-2B190-C0i199402-199601
4-SPOKE,URETHANE,BLACK,TRIM1#,8#
sub45100-2B190
main45100-2B190-C0i199402-199601
4-SPOKE,URETHANE,4-SPOKE,URETHAN,BLACK,BLACK,TRIM1#,8#
sub45100-2B190
main45100-2B190-C0i199202-199402
4-SPOKE,URETHANE,BLACK,TRIM2#,8#
sub45100-2B190
main45100-2B200-C0i199402-199601
4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM1#,8#
sub45100-2B200
main45100-2B200-C0i199402-199601
4-SPOKE,LEATHER,BLACK,TRIM1#
sub45100-2B200
main45100-2B200-C0i199202-199402
4-SPOKE,LEATHER,BLACK,TRIM2#
sub45100-2B200
main45100-2B200-C0i199202-199402
4-SPOKE,LEATHER,4-SPOKE,LEATHER,BLACK,BLACK,TRIM2#,8#
sub45100-2B200
main45100-2B210-C0i199202-199309
4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#,8#
sub45100-2B211
main45100-2B210-C0i199202-199309
4-SPOKE,4-SPOKE,LEATHER,W(*80),BLACK,TRIM2#
sub45100-2B211
main45100-2B211-C0i199309-199312
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8#
sub45100-2B212
main45100-2B211-C0i199309-199312
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#
sub45100-2B212
main45100-2B212-C0i199402-199406
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#
sub45100-2B212
main45100-2B212-C0i199402-199406
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B212
main45100-2B212-C0i199312-199402
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#,8#
sub45100-2B212
main45100-2B212-C0i199312-199402
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM2#
sub45100-2B212
main45100-2B230-C0i199305-199309
4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8#
sub45100-2B231
main45100-2B231-C0i199309-199402
4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM2#,8#
sub45100-2B231
main45100-2B231-C0i199309-199402
4-SPOKE,URETHANE,W(*80),BLACK,TRIM2#
sub45100-2B231
main45100-2B231-C0i199402-199406
4-SPOKE,URETHANE,BLACK,TRIM1#
sub45100-2B231
main45100-2B231-C0i199402-199406
4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45100-2B231
main45100-2B420-C0i199406-199411
4-SPOKE,URETHANE,BLACK,TRIM1#
sub45100-2B420
main45100-2B420-C0i199406-199412
4-SPOKE,URETHANE,4-SPOKE,URETHAN,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-2B420
main45100-2B420-C0i199406-199411
4-SPOKE,URETHANE,SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45100-2B420
main45100-2B440-C0i199411-199412
4-SPOKE,W(*80),BLACK,TRIM1#,8#
sub45100-2B440
main45100-2B440-C0i199411-199601
4-SPOKE,4-SPOKE,W(*80 MECHANICAL TYPE),BLACK,BLACK,TRIM1#
sub45100-2B440
main45100-2B440-C0i199412-199601
4-SPOKE,4-SPOKE,URETHAN,W(*80 MECHANICAL TYPE),BLACK,BLACK,TRIM1#,8#
sub45100-2B440
main45100-2B450-C0i199412-199601
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80 MECHANICAL TYPE),DEALER OPT,BLACK,BLACK,TRIM1#,8#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199412-199601
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80 MECHANICAL TYPE),DEALER OPT,BLACK,BLACK,TRIM1#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199411-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),DEALER OPT,BLACK,BLACK,TRIM1#
sub45100-2B450
sub45100-2B440
main45100-2B450-C0i199411-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),DEALER OPT,BLACK,BLACK,TRIM1#,8#
sub45100-2B450
sub45100-2B440
main45100-32300-C0i199406-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#
sub45100-32300
main45100-32300-C0i199406-199412
4-SPOKE,LEATHER,4-SPOKE,LEATHER,W(*80),BLACK,BLACK,TRIM1#,8#
sub45100-32300
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-20410i199202-199601
main45105-20420i199202-199601
main45105-20420i199402-199601
4-SPOKE,URETHAN
45112PAD, STEERING WHEEL
main45112-20600-C0i199202-199402
BLACK,TRIM2#,8#
main45112-20610-C0i199202-199402
BLACK,TRIM2#,8#
main45112-20610-C0i199202-199402
BLACK,TRIM2#
main45112-20630-C0i199402-199601
BLACK,TRIM1#,8#
sub45112-20630
main45112-20640-C0i199402-199601
BLACK,TRIM1#
sub45112-20640
main45112-20640-C0i199402-199601
BLACK,TRIM1#,8#
sub45112-20640
main45112-20640-C0i199402-199601
4-SPOKE,URETHAN,BLACK,TRIM1#,8#
sub45112-20640
45127INSERT, HORN BUTTON, UPPER NO.1
main45127-20010i199202-199601
main45127-20020i199202-199601
main45127-20020i199402-199601
4-SPOKE,URETHAN
45130BUTTON ASSY, HORN
main45130-2B150-C0i199202-199402
BLACK,TRIM2#,8#
main45130-2B160-C0i199202-199402
BLACK,TRIM2#,8#
main45130-2B160-C0i199202-199402
BLACK,TRIM2#
main45130-2B170-C0i199202-199309
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8#
sub45130-2B171
sub45130-2B320
main45130-2B170-C0i199202-199309
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#
sub45130-2B171
sub45130-2B320
main45130-2B171-C0i199309-199402
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#
sub45130-2B321
main45130-2B171-C0i199309-199402
4-SPOKE,W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8#
sub45130-2B321
main45130-2B190-C0i199402-199601
SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45130-2B190
main45130-2B200-C0i199402-199601
SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#,8#
sub45130-2B200
main45130-2B200-C0i199402-199601
4-SPOKE,BLACK,BLACK,TRIM1#,8#
sub45130-2B200
main45130-2B200-C0i199402-199601
SRS AIR BAG SYSTEM(DEALER OPTION),BLACK,TRIM1#
sub45130-2B200
main45130-2B321-C0i199309-199402
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#,8#
sub45130-2B321
main45130-2B321-C0i199309-199402
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM2#
sub45130-2B321
main45130-2B321-C0i199402-199406
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B321
main45130-2B321-C0i199402-199406
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#
sub45130-2B321
main45130-2B340-C0i199411-199412
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#,8#
sub45130-2B340
main45130-2B340-C0i199411-199412
W(MECHANICAL TYPE *80),BLACK,BLACK,TRIM1#
sub45130-2B340
main45130-2B340-C0i199406-199411
BLACK,TRIM1#
sub45130-2B340
main45130-2B340-C0i199406-199411
BLACK,TRIM1#,8#
sub45130-2B340
main45130-2B350-C0i199411-199510
W(MECHANICAL TYPE *80),BLACK,TRIM1#,8#
sub45130-2B351
main45130-2B350-C0i199411-199510
W(MECHANICAL TYPE *80),BLACK,TRIM1#
sub45130-2B351
main45130-2B351-C0i199510-199601
W(MECHANICAL TYPE *80),BLACK,TRIM1#,8#
sub45130-32370
main45130-2B351-C0i199510-199601
W(MECHANICAL TYPE *80),BLACK,TRIM1#
sub45130-32370
45180COVER SUB-ASSY, STEERING WHEEL
main45180-20200-C0i199202-199402
BLACK,TRIM2#,8#
sub45180-20200
main45180-20200-C0i199402-199601
BLACK,TRIM1#,8#
sub45180-20200
main45180-20210-C0i199402-199601
BLACK,TRIM1#
sub45180-20210
main45180-20210-C0i199402-199601
BLACK,TRIM1#,8#
sub45180-20210
main45180-20210-C0i199402-199601
4-SPOKE,URETHAN,BLACK,TRIM1#,8#
sub45180-20210
main45180-20210-C0i199202-199402
BLACK,TRIM2#
sub45180-20210
main45180-20210-C0i199202-199402
BLACK,TRIM2#,8#
sub45180-20210
45201PNUT, STEERING WHEEL SET
main90179-12071i199306-199606
main90179-12086i199202-199406
9015740012
main90157-40012
9015950238
main90159-50238
9016840114
main90168-40114

10 parts on this diagram · 5 diagrams in section
