EPC Data

DISC WHEEL & WHEEL CAP

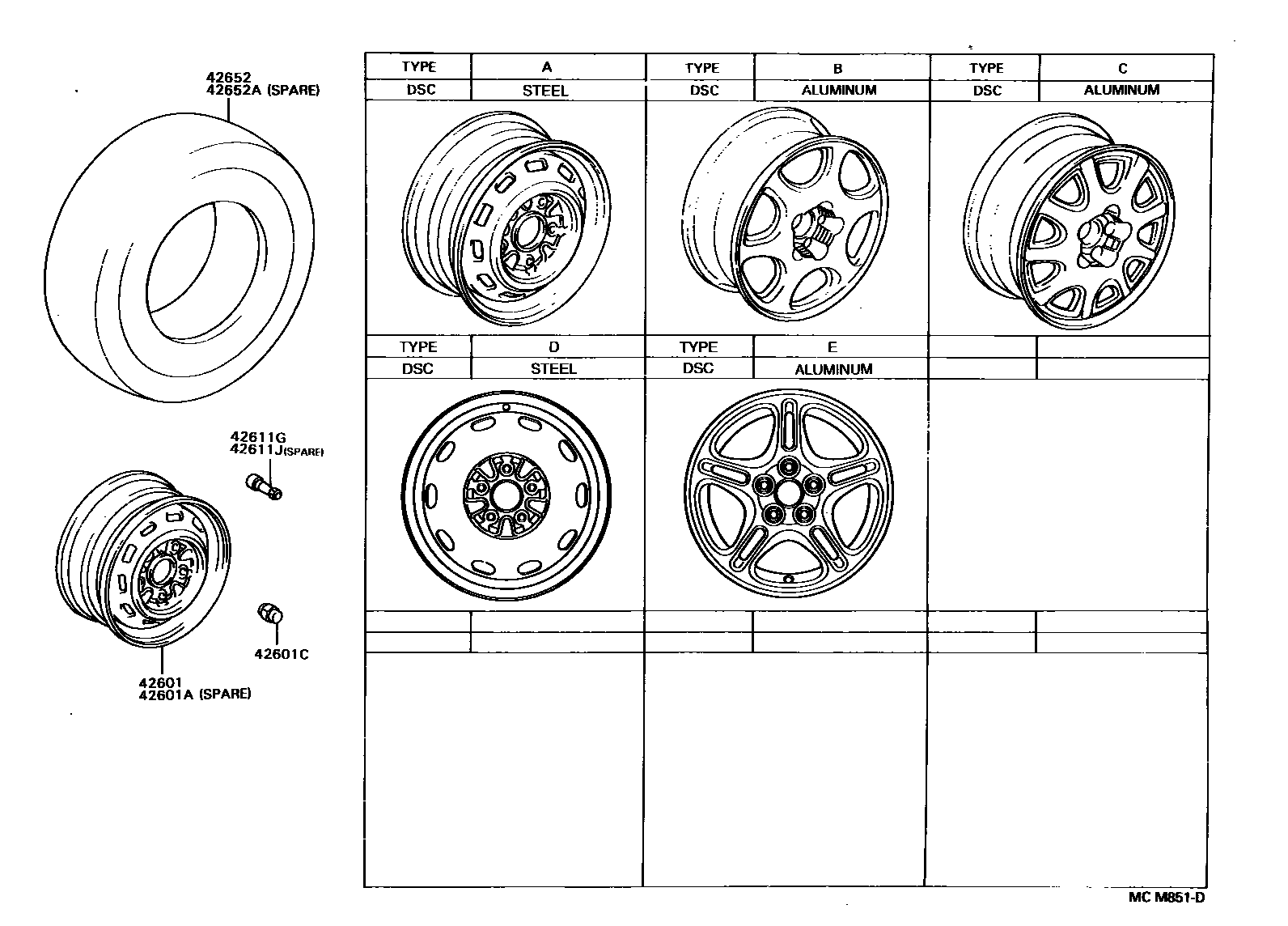

Parts diagram
42601WHEEL, DISC
main42611-05030i199208-199601
14X6J,ALUMINUM WHEEL,TYPE B
sub42611-2B240
main42611-20870-01i199402-199601
14X5.5JJ,TYPE A,BLACK
sub42611-20870
main42611-20870-01i199202-199402
14X5.5JJ,BLACK,TYPE A
sub42611-20870
main42611-20880-01i199202-199601
14X6JJ,STEEL WHEEL,TYPE A,BLACK
sub42611-20880
main42611-20880-01i199402-199601
14X6JJ,TYPE A,BLACK
sub42611-20880
main42611-20880-01i199202-199402
14X6JJ,BLACK,TYPE A
sub42611-20880
main42611-20890i199202-199208
14X6JJ,ALUMINUM WHEEL,TYPE B
main42611-2B010i199202-199601
15X6JJ,TYPE C
42601AWHEEL, DISC (FOR SPARE)
main42611-05030i199208-199601
14X6J,ALUMINUM WHEEL,TYPE B
sub42611-2B240
main42611-20870-01i199402-199601
14X5.5JJ,TYPE A,BLACK
sub42611-20870
main42611-20870-01i199202-199402
14X5.5JJ,BLACK,TYPE A
sub42611-20870
main42611-20880-01i199402-199601
14X6JJ,TYPE A,BLACK
sub42611-20880
main42611-20880-01i199202-199601
14X6JJ,STEEL WHEEL,TYPE A,BLACK
sub42611-20880
main42611-20880-01i199202-199402
14X6JJ,BLACK,TYPE A
sub42611-20880
main42611-20890i199202-199208
14X6JJ,ALUMINUM WHEEL,TYPE B
main42611-2B010i199202-199601
15X6JJ,TYPE C
42601CNUT, HUB (FOR AXLE)
main90942-01021i199202-199601
main90942-01083i199202-199601
W(14INCHES ALUMINUM WHEEL)
main90942-01084i199202-199601
sub90942-01058
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i199202-199601
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i199202-199601
42652TIRE
main42605-20140i199202-199402
175/70HR14,W(STEEL WHEEL)
main42605-20150i199211-199601
175/70R14 84H,W(STEEL WHEEL)
main42652-05010i199202-199510
175/70R14 84H
main42652-05050i199402-199601
185/65R14 86V
main42652-05050i199208-199402
185/65R14 86V,W(ALUMINUM WHEEL)
main42652-05070i199202-199601
185/65R14 86H
main42652-05080i199510-199601
175/70R14
main42652-2B220i199202-199402
195/60R15 87V,RH
main42652-2B220i199402-199601
195/60R15 87V
main42652-2B250i199202-199402
195/60R15 87V,LH
main42652-2B250i199402-199601
195/60R15 87V
main42652-2B280i199202-199601
185/65R14 86V,*B/S
main42652-2B330i199301-199601
185/65R14 86H,*B/S
42652ATIRE (FOR SPARE)
main42605-20140i199202-199402
175/70HR14,W(STEEL WHEEL)
main42605-20150i199211-199601
175/70R14 84H,W(STEEL WHEEL)
main42652-05010i199202-199510
175/70R14 84H
main42652-05050i199402-199601
185/65R14 86V
main42652-05050i199208-199402
185/65R14 86V,W(ALUMINUM WHEEL)
main42652-05070i199202-199601
185/65R14 86H
main42652-05080i199510-199601
175/70R14
main42652-2B220i199202-199601
195/60R15 87V
main42652-2B280i199202-199601
185/65R14 86V,*B/S
main42652-2B330i199301-199601
185/65R14 86H,*B/S

7 parts on this diagram · 3 diagrams in section
