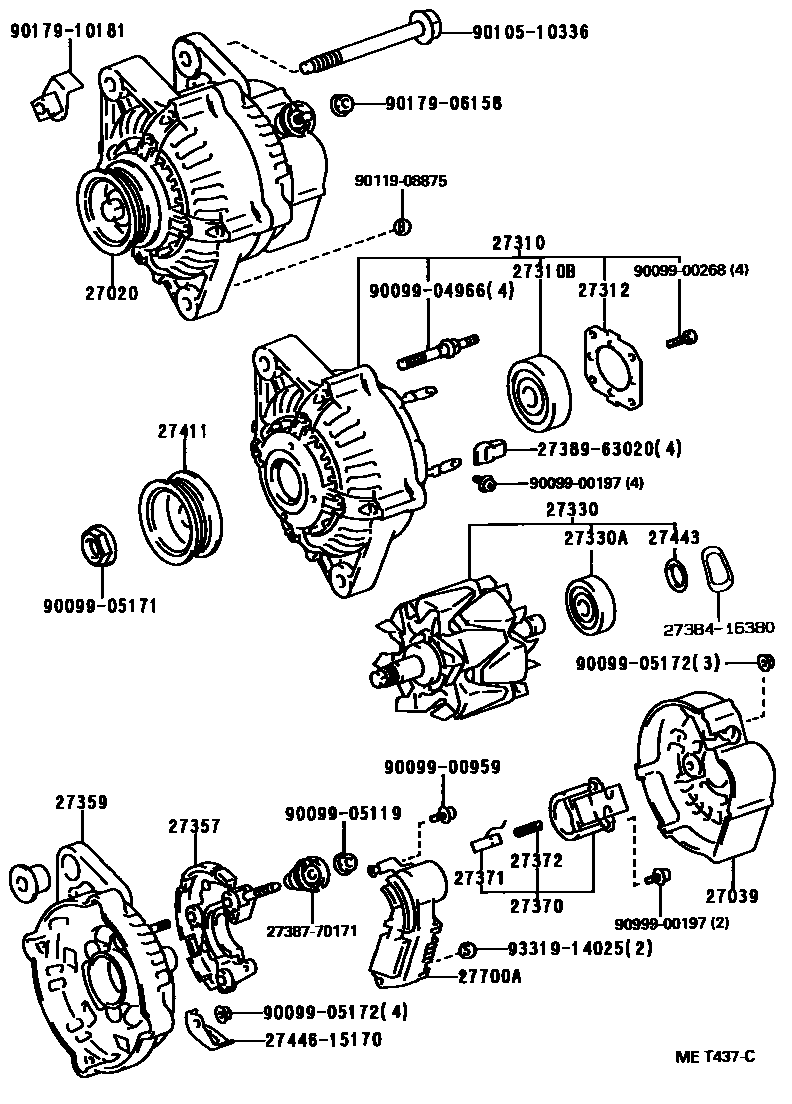

ALTERNATOR

0001 112V 70A (NIPPONDENSO) 0002 112V 70A (BOSCH) 0003 112V 70A (NIPPONDENSO) 0004 112V 70A (BOSCH) 0005 112V 80A 0006 1

27020ALTERNATOR ASSY

main27020-64281i2C..CT190..JPP199202-199212

12V 80A

main27060-15080i4AFE..AT190..JPP199202-199601

12V 70A

main27060-64130i2C..CT190..JPP199212-199601

12V 80A

main27060-74370i3S#..ST191..JPP199202-199601

12V 70A

main27060-74530i3SGE..ST191..JPP199402-199601

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-55080i2C..CT190..JPP199212-199601

sub27039-70470

main27039-64180i2C..CT190..JPP199202-199212

sub27039-64181

main27039-73020i4AFE,3S#..AT190,ST191..JPP199202-199601

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-15170i4AFE..AT190..JPP199202-199601

main27310-64260i2C..CT190..JPP199202-199212

main27310-64450i2C..CT190..JPP199212-199601

main27310-70100i3S#..ST191..JPP199202-199601

main27310-74430i3SGE..ST191..JPP199402-199601

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2C..CT190..JPP199202-199212

main90099-10178i4AFE,3SFE..AT190,ST191..JPP199202-199601

main90099-10192i2C..CT190..JPP199212-199601

27312PLATE, RETAINER

main27312-42010i2C..CT190..JPP199212-199601

main27312-64130i2C..CT190..JPP199202-199212

main27312-70200i4AFE,3S#..AT190,ST191..JPP199202-199601

27330ROTOR ASSY, ALTERNATOR

main27330-64190i2C..CT190..JPP199202-199212

main27330-72101i4AFE,3S#..AT190,ST191..JPP199202-199601

main27330-76030i2C..CT190..JPP199212-199601

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AFE,2C,3S#..AT190,CT190,ST191..JPP199202-199601

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-55080i2C..CT190..JPP199212-199601

main27357-63020i4AFE,3S#..AT190,ST191..JPP199202-199601

main27357-64281i2C..CT190..JPP199202-199212

27359FRAME, ALTERNATOR RECTIFIER END

main27359-15170i4AFE..AT190..JPP199202-199601

sub27359-15171

sub27384-16380

main27359-43160i3S#..ST191..JPP199202-199601

sub27359-43161

sub27384-16380

main27359-64260i2C..CT190..JPP199202-199212

main27359-64450i2C..CT190..JPP199212-199601

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i4AFE,3S#..AT190,ST191..JPP199402-199601

main27370-70300i4AFE,3S#..AT190,ST191..JPP199202-199402

sub27370-35060

main27370-75060i2C..CT190..JPP199202-199601

27371BRUSH, ALTERNATOR

main27371-70300i4AFE,3S#..AT190,ST191..JPP199202-199601

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4AFE,3S#..AT190,ST191..JPP199202-199601

sub27372-87501

27411PULLEY, ALTERNATOR

main27411-16180i4AFE..AT190..JPP199202-199601

main27411-16211i3S#..ST191..JPP199202-199601

main27411-64320i2C..CT190..JPP199212-199601

27443COVER, ALTERNATOR BEARING

main27443-63020i4AFE,2C,3S#..AT190,CT190,ST191..JPP199202-199601

27700AREGULATOR ASSY, GENERATOR

main27700-64080i2C..CT190..JPP199202-199212

main27700-65010i2C..CT190..JPP199212-199601

sub27700-35040

main27700-74030i4AFE,3S#..AT190,ST191..JPP199202-199601

2738416380WASHER

main27384-16380

2738770171INSULATOR, TERMINAL

main27387-70171

2738963020INSULATOR, TERMINAL

main27389-63020

2744615170CLIP, ALTERNATOR CORD

main27446-15170

9009900197

main90099-00197

9009900268

main90099-00268

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510336

main90105-10336

9011908875

main90119-08875

9017906158

main90179-06158

9017910181

main90179-10181

9099900197

main90999-00197

9331914025

main93319-14025

32 parts on this diagram · 6 diagrams in section
