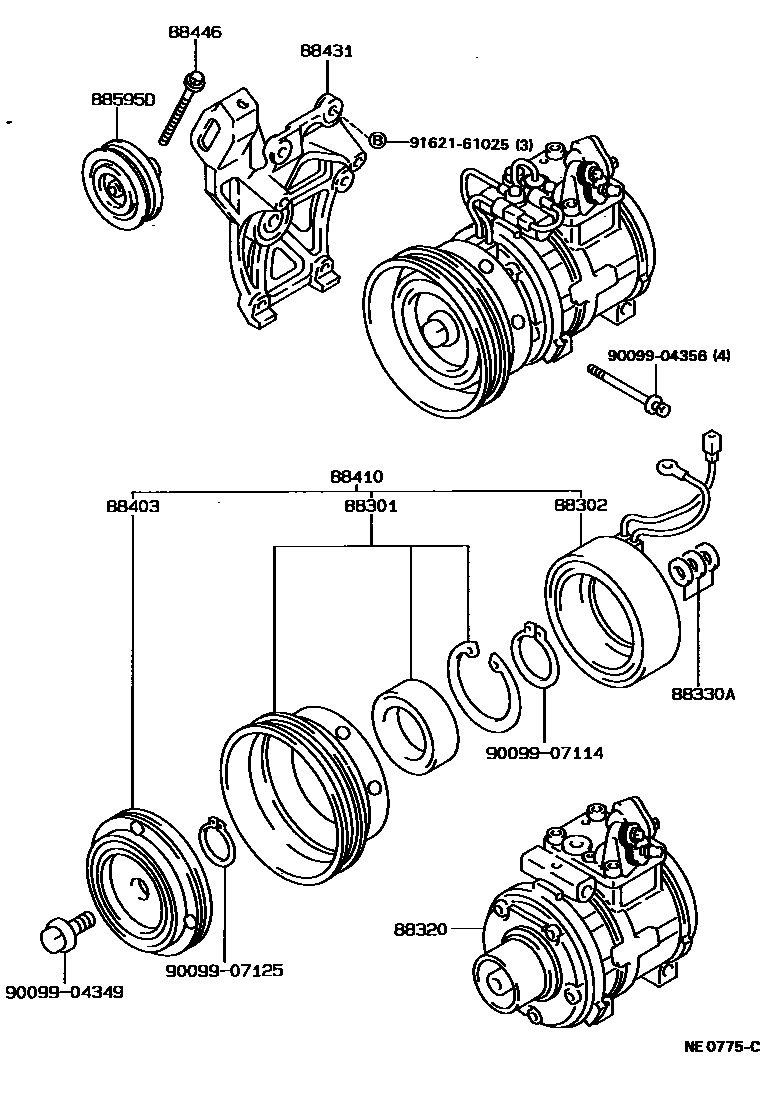

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iCT170..LHD;ST171..LHD..W198712-199211

sub88412-2B030

main88412-30330iAT171..LHD..W198712-199211

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16021iAT171..LHD..W198712-199211

sub88411-60030

main88411-20130iST171..LHD..W198712-199203

sub88411-35050

main88411-20140iCT170..LHD198712-199211

sub88411-2B040

88320COMPRESSOR ASSY, COOLER

main88320-20600iAT171..LHD..W198712-199211

DEALER OPTION

sub88320-35H91

main88320-20610iST171..G;ST171..RHD198712-199011

DEALER OPTION

sub88320-20611

main88320-20610iST171..RHD199011-199203

sub88320-20611

main88320-20611iST171..W199011-199203

DEALER OPTION

sub88320-20H90

main88320-20620iCT170..LHD198801-198911

DEALER OPTION

sub88320-20621

main88320-20620iCT170..RHD198712-199211

sub88320-20621

main88320-20700iAT171..LHD..W198712-199211

sub88320-35H91

main88320-20710iST171..LHD..W198712-199203

sub88320-20711

main88320-20900iCT170198911-199006

DEALER OPTION

main88320-2B010iCT170199006-199011

DEALER OPTION

sub88320-2B011

main88320-2B011iCT170199011-199211

DEALER OPTION

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCT170..LHD;AT171,ST171..LHD..W198712-199211

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCT170..LHD;AT171,ST171..LHD..W198712-199211

88410CLUTCH ASSY, MAGNET

main88410-20220iST171198712-199203

main88410-20230iAT171..LHD..GL..CBR198712-198911

DEALER OPTION & W(*66)

sub88410-20430

main88410-20240iAT171..XL..G..CBR198712-198911

DEALER OPTION

main88410-20250iCT170..LHD198712-199211

sub88410-20440

main88410-20250iCT170..LHD198801-198911

DEALER OPTION

sub88410-20440

main88410-20300iAT171..LHD..CBR198712-199211

sub88410-20390

main88410-20400iST171..LHD..W198911-199203

DEALER OPTION

main88410-20430iAT171..RHD;AT171..EFI198911-199211

DEALER OPTION

main88410-20440iCT170198911-199211

DEALER OPTION

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12380iAT171198712-199211

main88431-12460iCT170..RHD198911-199211

88446BOLT, IDLE PULLEY

main88446-12030iAT171198712-199211

88595DPULLEY ASSY, IDLE

main88440-17010iAT171198712-199211

9009904349

main90099-04349

9009904356

main90099-04356

9009907114

main90099-07114

9009907125

main90099-07125

9162161025

main91621-61025

14 parts on this diagram · 6 diagrams in section
