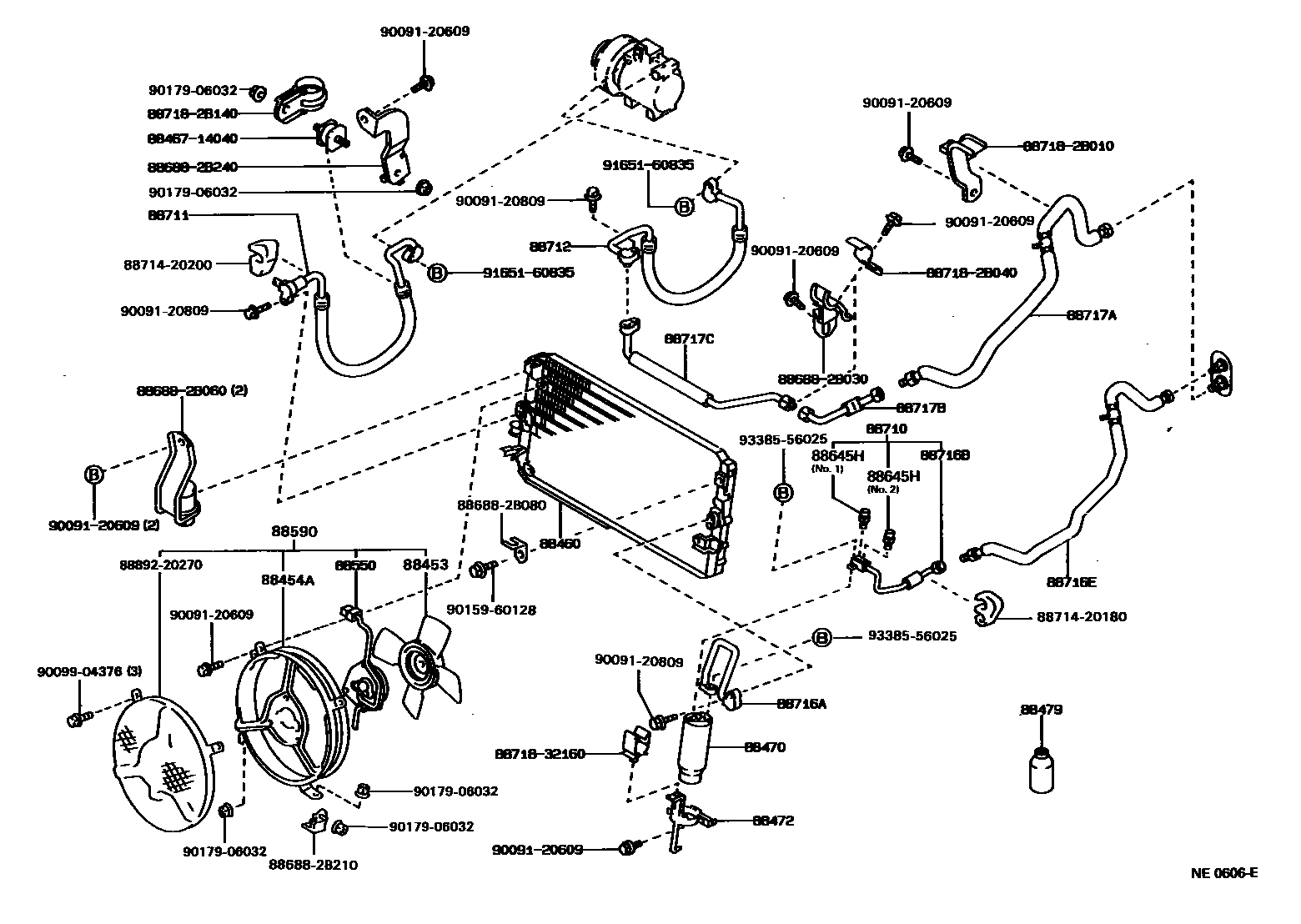

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

88453FAN, COOLING (FOR CONDENSER)

main88453-20030iAT171198712-199211

main88453-32020iCT170..LHD;ST171..LHD..W198712-199211

88454ASHROUD, FAN

main88454-20060iAT171198712-199211

main88454-20070iCT170198712-199211

88460CONDENSER ASSY, COOLER

main88460-20250iCT170..RHD198712-199211

main88460-20260iCT170..LHD198712-199211

main88460-20260iCT170..RHD198911-199211

COLD SPEC

88470RECEIVER & DRYER ASSY, COOLER

main88471-12010iCT170..LHD198712-199211

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-20040iCT170..LHD198712-199211

main88473-20040iCT170..RHD198911-199211

COLD SPEC

main88473-20060iCT170..RHD198712-199211

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iCT170198712-198911

400G

sub90986-02004

sub90986-02005

main90986-02004iCT170..GL198911-199203

250G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12120iAT171..LHD..W198712-198911

main88550-12120iAT171..LHD..CBR198911-199211

MAKER OPTION

main88550-20040iAT171..RHD;AT171..EFI198911-199211

88590BLOWER ASSY, W/SHROUD

main88590-20100iST171198712-199203

main88590-20160iAT171..LHD..W198712-199211

sub88590-20180

main88590-20170iCT170..LHD198801-199211

DEALER OPTION

main88590-20170iCT170..LHD198712-198801

main88590-20180iAT171..LHD..W198712-199211

DEALER OPTION

88645HSWITCH, PRESSURE NO.1

main88645-20010iCT170..LHD198712-199211

NO.1

main88645-30280iCT170..LHD;AT171,ST171..LHD..W198712-198909

NO.2

sub88645-30281

main88645-30281iAT171,ST171..LHD198909-199211

NO.2

88710TUBE ASSY, AIR CONDITIONER

main88706-20010iCT170..RHD198712-199211

main88706-20020iCT170..LHD198712-199211

main88706-20020iCT170..RHD198911-199211

COLD SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-20610iAT171198712-199211

sub88711-2B200

main88711-20620iCT170..RHD198801-198911

DEALER OPTION

sub88711-20680

main88711-20620iST171198712-199203

sub88711-20680

main88711-20620iCT170..LHD198911-199211

MAKER OPTION

sub88711-20680

main88711-20740iCT170198911-199211

DEALER OPTION

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-20810iAT171..RHD198712-199211

sub88712-2B680

main88712-20820iCT170..RHD198712-199203

sub88712-2B690

main88712-20830iAT171..LHD..XL198712-199211

sub88712-2B700

main88712-20840iST171..LHD..W198712-199203

sub88712-2B710

main88712-20850iCT170..LHD198712-198911

sub88712-2B720

main88712-20850iST171..LHD198911-199203

W(*66)

sub88712-2B720

main88712-20860iAT171..LHD..GL198712-199203

W(*66)

sub88712-2B730

main88712-2B140iCT170..RHD198911-199211

sub88712-2B650

main88712-2B150iCT170..LHD198911-199211

COLD SPEC

sub88712-2B660

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2B500iCT170..RHD;AT171..LHD..W;AT171..GL..G..CBR198712-199211

DEALER OPTION

main88716-2B500iAT171,ST171..RHD;AT171..XL..G..CBR198712-199211

main88716-2B590iAT171,ST171..LHD198712-199211

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-2B520iCT170..RHD198712-199211

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2B440iAT171..RHD198712-199211

main88716-2B450iST171..RHD198712-199203

main88716-2B450iCT170..RHD198712-199211

DEALER OPTION

main88716-2B460iAT171..XL..G..CBR198712-198911

DEALER OPTION

main88716-2B460iST171..LHD..W198712-199203

MAKER OPTION

main88716-2B470iCT170..LHD198712-199211

MAKER OPTION

main88716-2B600iST171..LHD..W198712-199211

DEALER OPTION

main88716-2B600iAT171,ST171..G..EFI198712-198911

DEALER OPTION & W(*66)

main88716-2B620iST171..LHD198911-199203

DEALER OPTION & W(*66)

main88716-2B640iAT171..LHD..W198712-199211

MAKER OPTION

main88716-2B650iAT171..LHD..GL198911-199203

DEALER OPTION & W(*66)

main88716-2B670iCT170..LHD198712-199211

DEALER OPTION

main88716-2B670iCT170..RHD198911-199211

COLD SPEC

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-20730iAT171..RHD198712-199211

main88717-20740iST171..RHD198712-199203

main88717-20740iCT170..RHD198712-199211

DEALER OPTION

main88717-20750iAT171,ST171..LHD..GL..W198712-199203

DEALER OPTION

main88717-20750iAT171..LHD..XL198712-199211

main88717-20760iCT170..RHD198712-199211

main88717-20770iAT171..LHD..GL198911-199203

W(*66)

main88717-20780iST171..LHD198911-199203

W(*66)

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-20880iCT170..RHD198712-199211

88717CPIPE, COOLER REFRIGERANT SUCTION, C

main88717-20870iAT171,ST171..RHD198712-199211

8846714040CUSHION, COOLER CONDENSER, NO.1

main88467-14040

886882B030BRACKET, COOLER DIAPHRAGM

main88688-2B030

886882B060BRACKET, COOLER DIAPHRAGM

main88688-2B060

886882B080BRACKET, COOLER DIAPHRAGM

main88688-2B080

886882B210BRACKET, COOLER DIAPHRAGM

main88688-2B210

886882B240BRACKET, COOLER DIAPHRAGM

main88688-2B240

8871420180HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20180

8871420200HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-20200

887182B010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B010

887182B040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B040

887182B140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B140

8871832160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32160

8889220270BRACKET, COOLER EVAPORATOR MOUNTING

main88892-20270

9009120609

main90091-20609

9009120809

main90091-20809

9009904376

main90099-04376

9015960128

main90159-60128

9017906032

main90179-06032

9165160835

main91651-60835

9338556025

main93385-56025

38 parts on this diagram · 5 diagrams in section
