HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

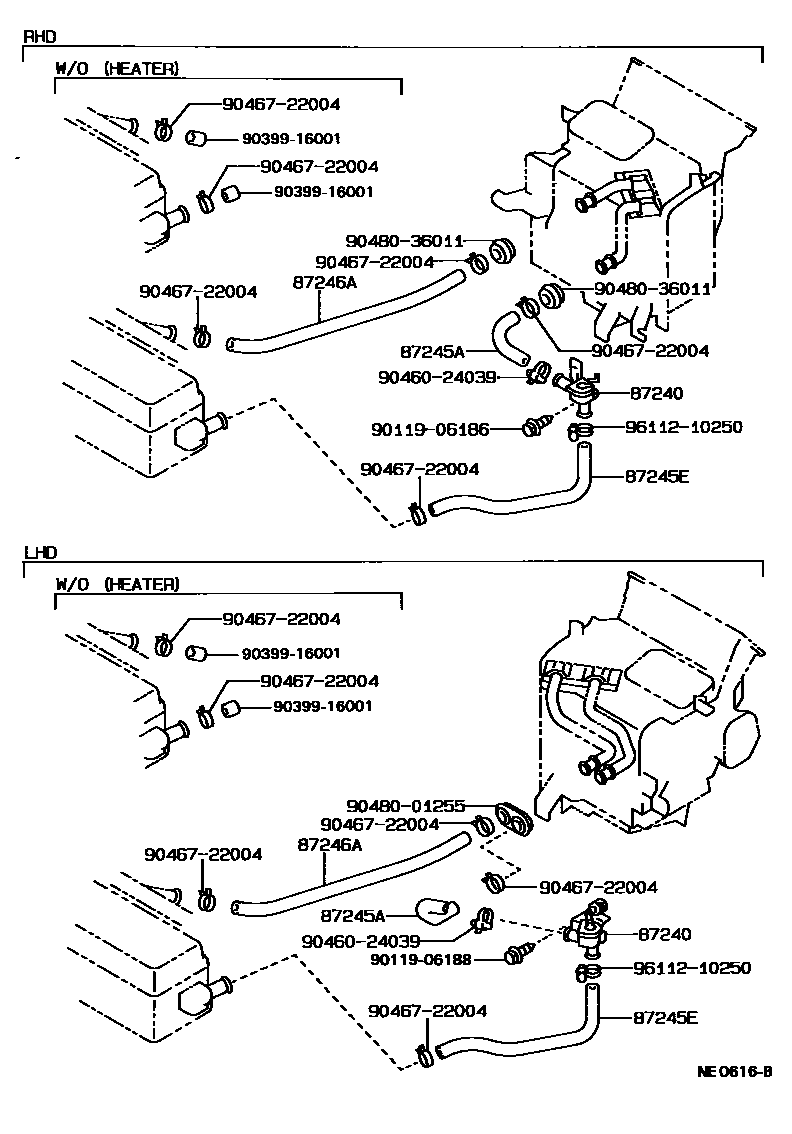

87240VALVE ASSY, HEATER WATER

main87240-20230iAT171,CT170,ST171..RHD198712-199211

main87240-20330iAT171,CT170,ST171..LHD198712-199211

87245AHOSE, HEATER WATER, INLET A

main87245-2B220iAT171,CT170,ST171..RHD198712-199211

main87245-2B230iAT171,CT170,ST171..LHD198712-199211

87245EHOSE, HEATER WATER, INLET E

main87245-2B240iAT171198712-199211

main87245-2B260iST171198712-199203

main87245-2B270iCT170198712-199211

87246AHOSE, HEATER WATER, OUTLET A

main87245-2B290iAT171..RHD198712-199106

main87245-2B291iAT171..RHD199106-199109

sub87245-2B292

main87245-2B292iAT171..RHD199109-199211

main87245-2B300iST171..RHD198712-199203

main87245-2B310iCT170..RHD198712-199211

main87245-2B330iAT171..LHD198712-199106

main87245-2B331iAT171..LHD199106-199109

sub87245-2B332

main87245-2B332iAT171..LHD199109-199211

main87245-2B340iST171..LHD198712-199203

main87245-2B350iCT170..LHD198712-199211

9011906186

main90119-06186

9011906188

main90119-06188

9039916001

main90399-16001

9046024039

main90460-24039

9046722004

main90467-22004

9048001255

main90480-01255

9048036011

main90480-36011

9611210250

main96112-10250

12 parts on this diagram · 3 diagrams in section
